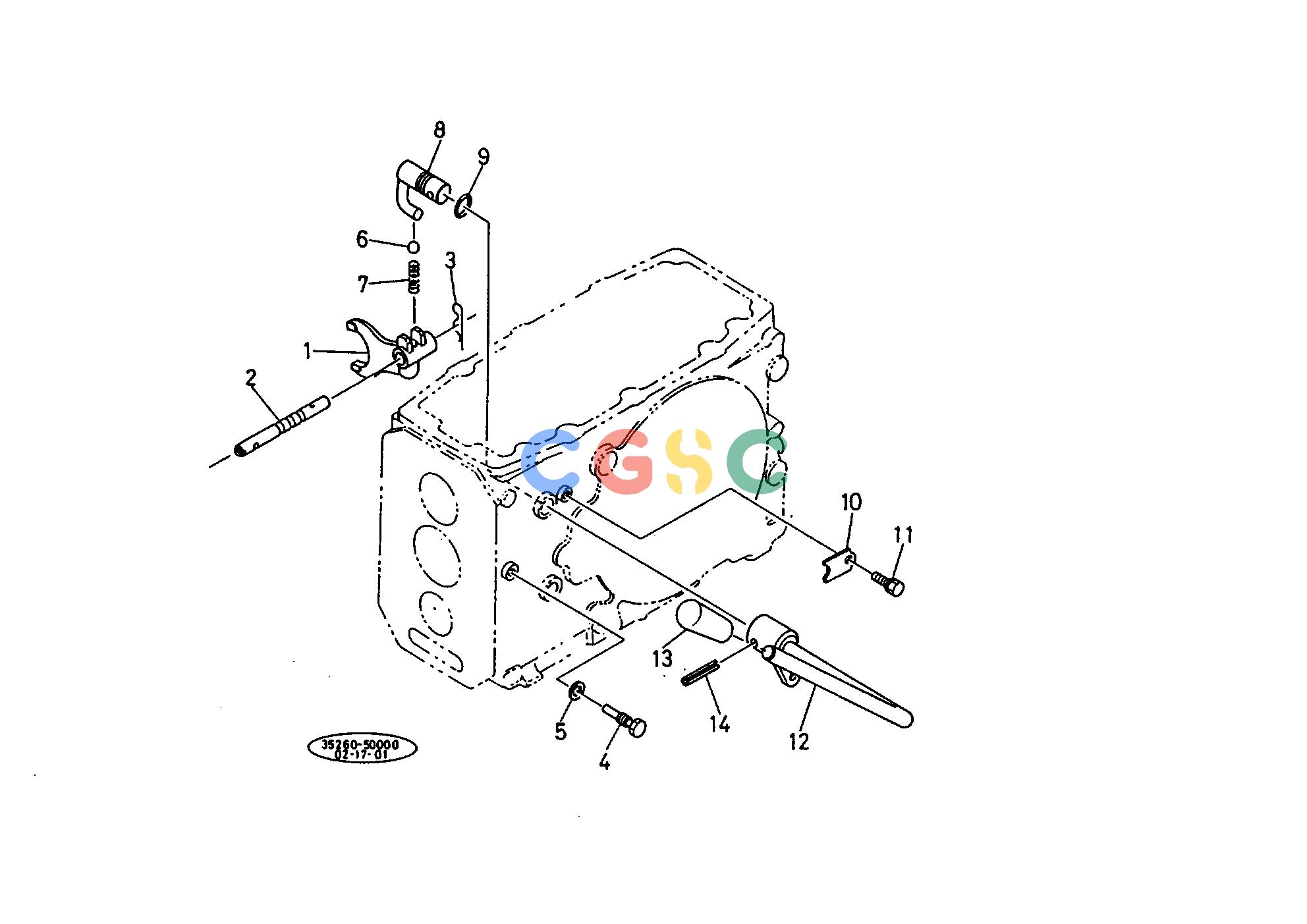

久保田零件查询044000 SPEED CHANGE SYSTEM 2 BODYEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
329 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3715024110
|
[1] |
FORK SHIFT
|
0.4004(lbs); 0.182
|
| 002. |
3824024130
|
[1] |
SHAFT FORK
|
0.2530(lbs); 0.115
|
| 003. |
0551551200
|
[1] |
PIN SNAP
|
0.0066(lbs); 0.003
|
| 004. |
3715023120
|
[1] |
SCREW SET
|
0.0440(lbs); 0.020
|
| 005. |
0471700800
|
[1] |
WASHER SEAL
|
0.0022(lbs); 0.001
|
| 006. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 007. |
3526024110
|
[1] |
SPRING
|
0.0440(lbs); 0.020
|
| 008. |
3715024310
|
[1] |
LEVER SHIFT
|
0.3190(lbs); 0.145
|
| 009. |
0481100150
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 010. |
3415024350
|
[1] |
STOPPER LEVER
|
0.0220(lbs); 0.010
|
| 011. |
0112050816
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 012. |
3526024430
|
[1] |
LEVER AUX S-CHANGE
|
0.9460(lbs); 0.430
|
| 013. |
0691400120
|
[1] |
GRIP LEVER
|
0.0396(lbs); 0.018
|
| 014. |
0541100632
|
[1] |
PIN SPRING
|
0.0088(lbs); 0.004
|
