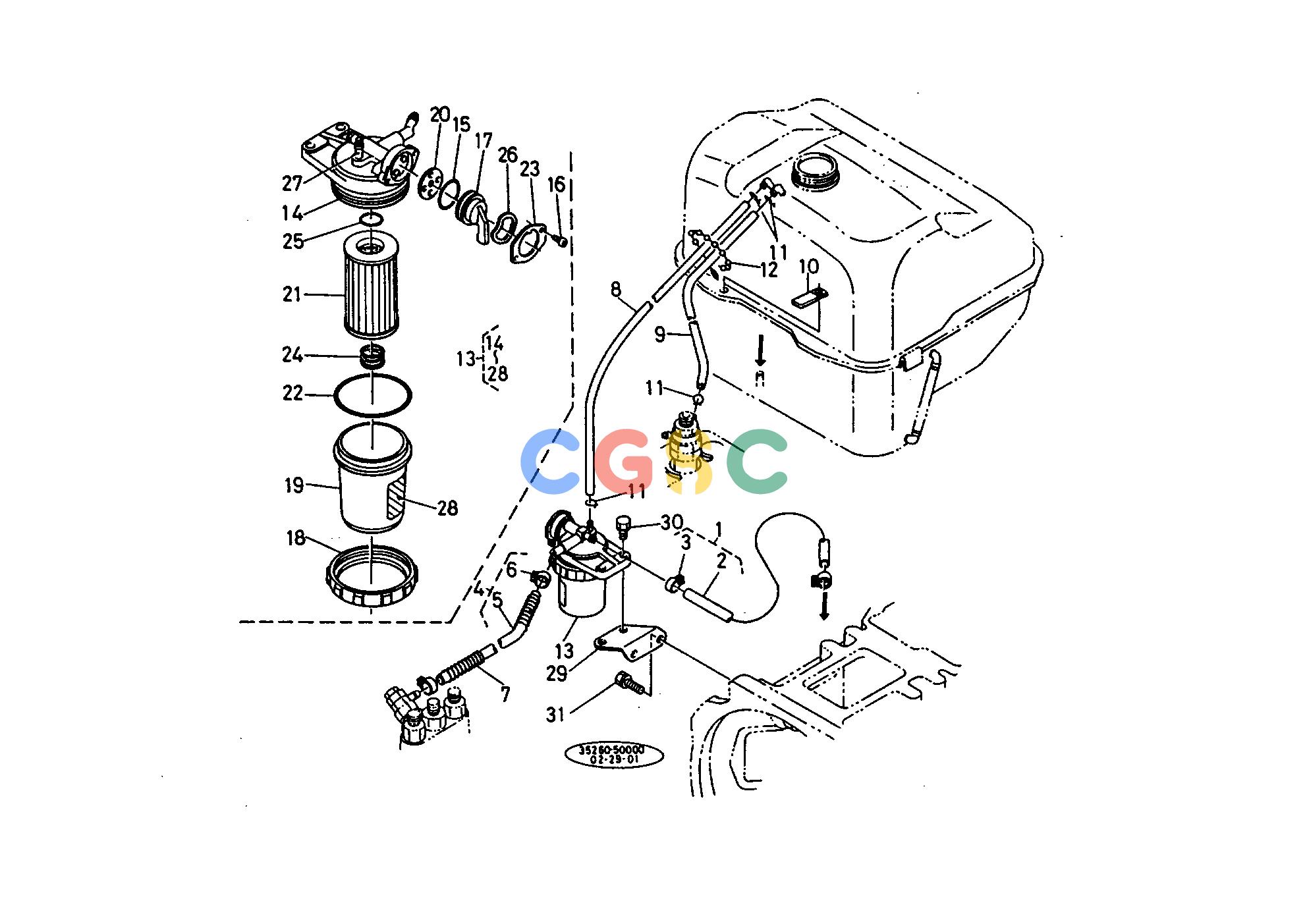

久保田零件查询056000 FUEL FILTER BODYEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
743 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3526035502
|
[1] |
ASSY PIPE FUEL 1
|
0.0000(lbs); 0.000
|
| 002. |
9999999999
|
[1] |
BLANK
|
0.0000(lbs); 0.000
|
| 003. |
1430142750
|
[2] |
CLIP PIPE
|
0.0110(lbs); 0.005
|
| 004. |
3420035530
|
[1] |
ASSY PIPE FUEL 2
|
0.1210(lbs); 0.055
|
| 005. |
9999999999
|
[1] |
BLANK
|
0.0000(lbs); 0.000
|
| 006. |
1430142750
|
[2] |
CLIP PIPE
|
0.0110(lbs); 0.005
|
| 007. |
6711158320
|
[1] |
SPRING PIPE
|
0.0440(lbs); 0.020
|
| 008. |
3526035540
|
[1] |
PIPE FUEL 3
|
0.0660(lbs); 0.030
|
| 009. |
3526035550
|
[1] |
PIPE FUEL 5
|
0.0330(lbs); 0.015
|
| 010. |
3224034490
|
[1] |
CLAMP CORD
|
0.0066(lbs); 0.003
|
| 011. |
1024442320
|
[4] |
CLIP PIPE
|
0.0022(lbs); 0.001
|
| 012. |
3435029380
|
[1] |
BAND CORD
|
0.0022(lbs); 0.001
|
| 013. |
1557543010
|
[1] |
ASSY FILTER FUEL
|
0.0000(lbs); 0.000
|
| 014. |
1557543110
|
[1] |
ASSY BODY
|
0.3960(lbs); 0.180
|
| 015. |
0481110290
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 016. |
1552193310
|
[2] |
SCREW WITH WASHER
|
0.0088(lbs); 0.004
|
| 017. |
1522143520
|
[1] |
HANDLE FILTER
|
0.0000(lbs); 0.000
|
| 018. |
1552143150
|
[1] |
RING RETAINER
|
0.3080(lbs); 0.140
|
| 019. |
1552143130
|
[1] |
POT FILTER
|
0.2200(lbs); 0.100
|
| 020. |
1552143672
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 021. |
1552143160
|
[1] |
ELEMENT FILTER
|
0.1540(lbs); 0.070
|
| 022. |
0481150650
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 023. |
1552143552
|
[1] |
RETAINER HANDLE
|
0.0220(lbs); 0.010
|
| 024. |
1552143930
|
[1] |
SPRING
|
0.0088(lbs); 0.004
|
| 025. |
0481100160
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 026. |
1552143542
|
[1] |
PLATE THRUST
|
0.0022(lbs); 0.001
|
| 027. |
1552143282
|
[1] |
JOINT
|
0.0110(lbs); 0.005
|
| 028. |
1927187210
|
[1] |
LABEL
|
0.0022(lbs); 0.001
|
| 029. |
3526035810
|
[1] |
BRACKET FILTER
|
0.2640(lbs); 0.120
|
| 030. |
0112050825
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 031. |
0112050816
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
