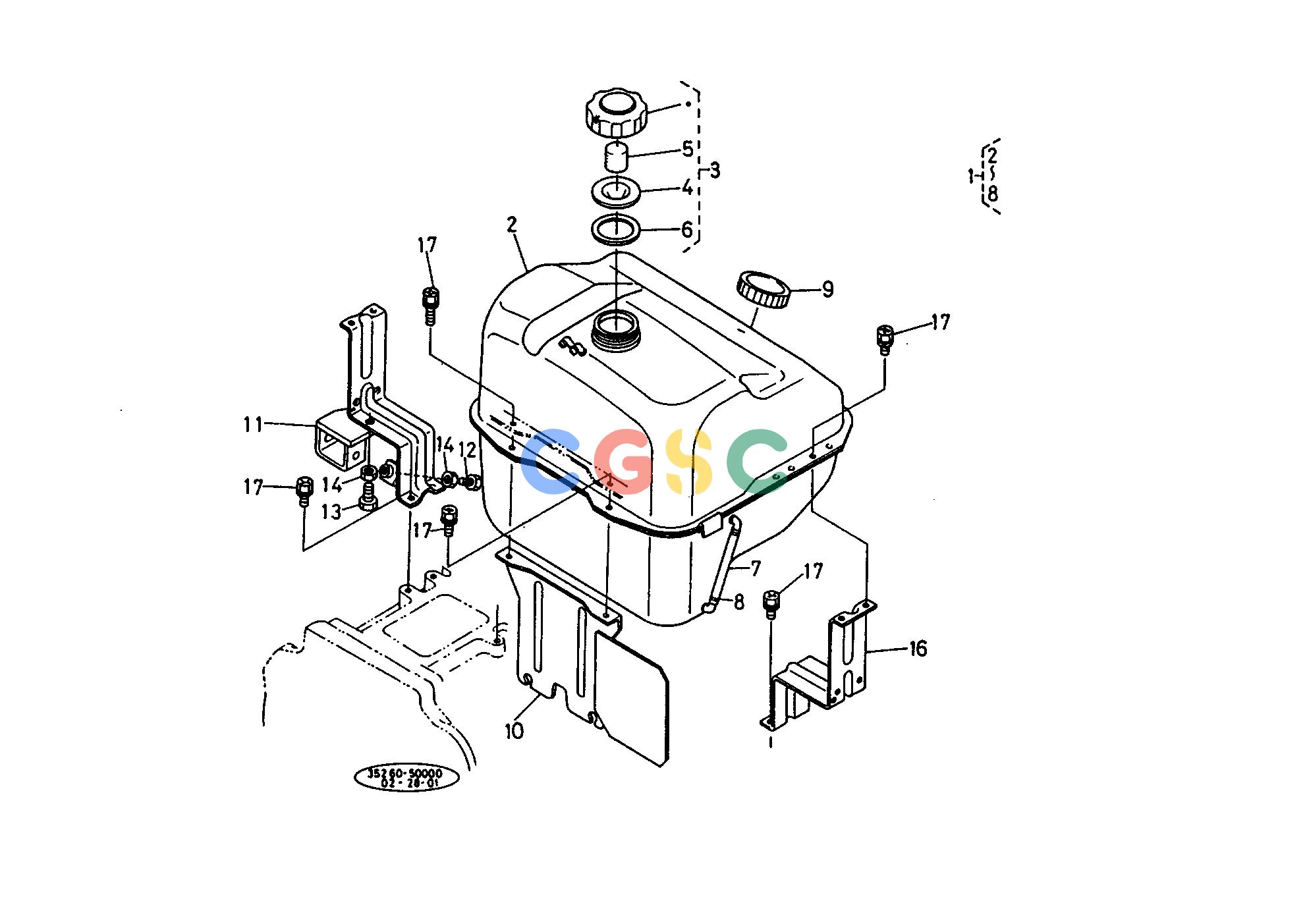

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 001. | 3526035100 | [1] | ASSY TANK FUEL | 15.1800(lbs); 6.900 |
| 002. | 9999999999 | [1] | BLANK | ORDER BY REF.No.001 0.0000(lbs); 0.000 |
| 003. | 3824035200 | [1] | ASSY CAP | 0.1430(lbs); 0.065 |
| 004. | 9999999999 | [1] | BLANK | ORDER BY REF.No.003 0.0000(lbs); 0.000 |
| 005. | 9999999999 | [1] | BLANK | ORDER BY REF.No.003 0.0000(lbs); 0.000 |
| 006. | 9999999999 | [1] | BLANK | ORDER BY REF.No.003 0.0000(lbs); 0.000 |
| 007. | 3415035470 | [1] | GAUGE FUEL | 0.0000(lbs); 0.000 |
| 008. | 1001341770 | [2] | CLIP PIPE | 0.0110(lbs); 0.005 |
| 009. | 3730035550 | [1] | BUSH FUEL | 0.0308(lbs); 0.014 |
| 010. | 3526035270 | [1] | SUPPORT FUEL TANK | 1.7600(lbs); 0.800 |
| 011. | 3526035280 | [1] | STAY FUEL TANK RH | 1.8590(lbs); 0.845 |
| 012. | 0115250835 | [1] | BOLT | 0.0330(lbs); 0.015 |
| 013. | 0115250830 | [1] | BOLT | 0.0308(lbs); 0.014 |
| 014. | 0211250080 | [2] | NUT | 0.0066(lbs); 0.003 |
| 016. | 3715035290 | [1] | STAY FUEL TANK LH | 0.8360(lbs); 0.380 |
| 017. | 0120250816 | [10] | BOLT | 0.0264(lbs); 0.012 |
