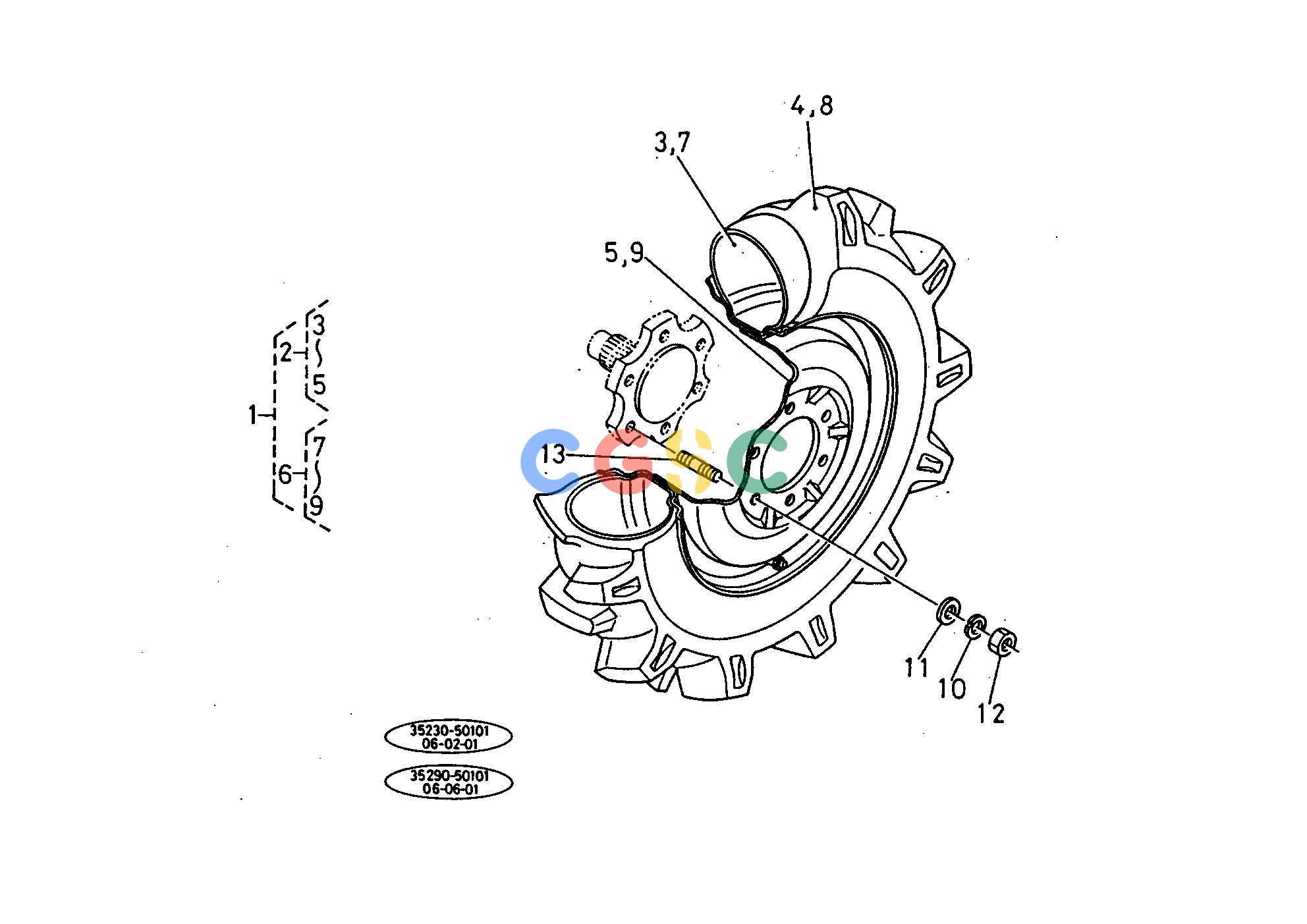

久保田零件查询070000 FRONT WHEEL (6-14) [4WD] FRONT AXLE AND WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
555 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3523043700
|
[1] |
ASSY FRONT WHEEL
|
79.2000(lbs); 36.000
|
| 002. |
3523043710
|
[1] |
ASSY FRONT WHEEL RH
|
41.8000(lbs); 19.000
|
| 003. |
9501611120
|
[1] |
TUBE
|
1.6940(lbs); 0.770
|
| 004. |
3838043740
|
[1] |
TIRE
|
19.3600(lbs); 8.800
|
| 005. |
3523043730
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 006. |
3523043720
|
[1] |
ASSY FRONT WHEEL LH
|
41.8000(lbs); 19.000
|
| 007. |
9501611120
|
[1] |
TUBE
|
1.6940(lbs); 0.770
|
| 008. |
3838043740
|
[1] |
TIRE
|
19.3600(lbs); 8.800
|
| 009. |
3523043730
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 010. |
0451250140
|
[12] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 011. |
0401350140
|
[12] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 012. |
0217650140
|
[12] |
NUT
|
0.0308(lbs); 0.014
|
| 013. |
0151751425
|
[12] |
STUD
|
0.1034(lbs); 0.047
|
