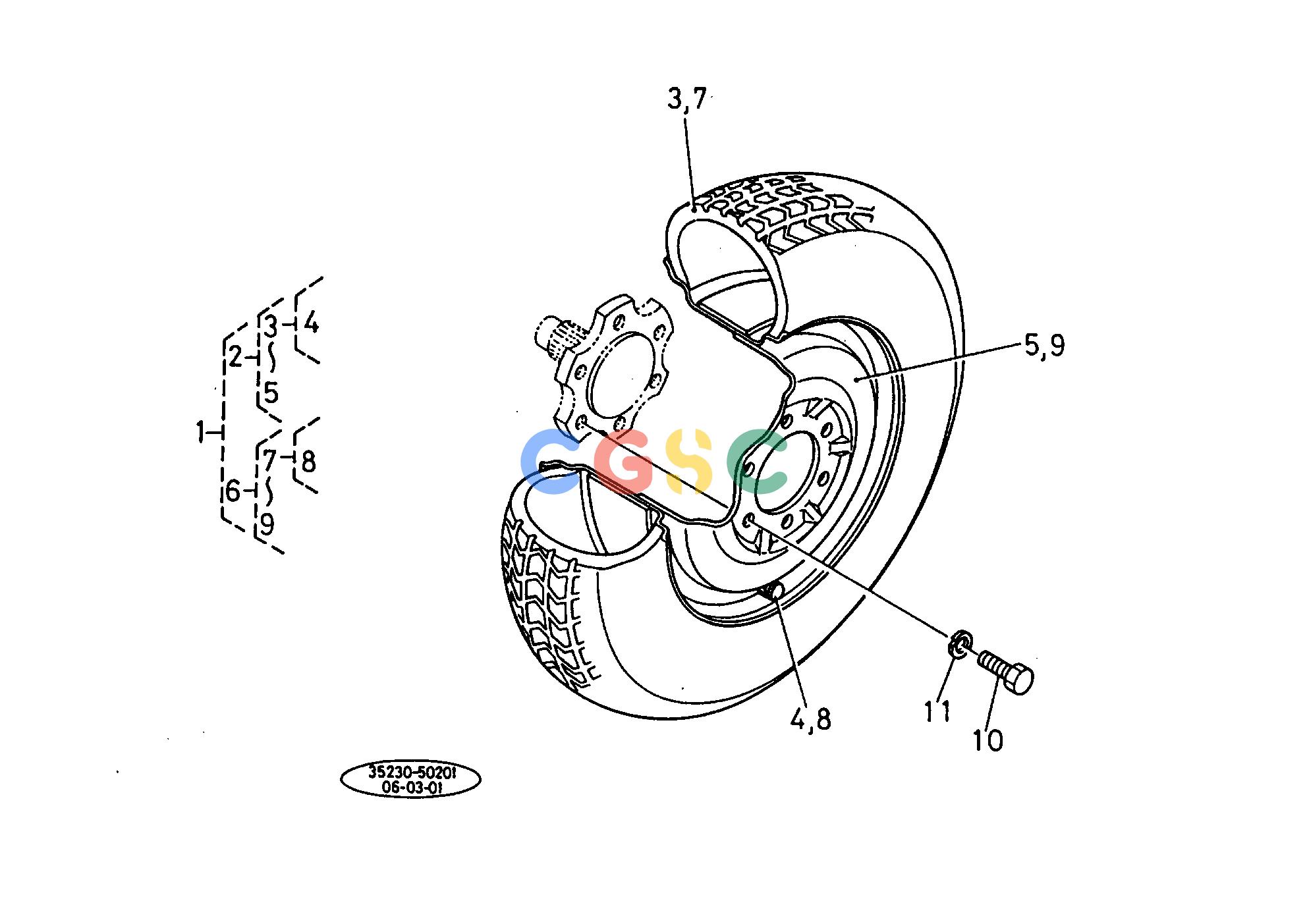

久保田零件查询071000 FRONT WHEEL (25X8.50-14) [4WD] FRONT AXLE AND WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
275 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3523011800
|
[1] |
ASSY FRONT WHEEL
|
82.5000(lbs); 37.500
|
| 002. |
3523011820
|
[1] |
ASSY FRONT WHEEL RH
|
0.0000(lbs); 0.000
|
| 003. |
3523011810
|
[1] |
TIRE
|
17.6000(lbs); 8.000
|
| 004. |
3415911850
|
[1] |
VALVE TIRE
|
0.0286(lbs); 0.013
|
| 005. |
3523011840
|
[1] |
ASSY WHEEL
|
0.0000(lbs); 0.000
|
| 006. |
3523011830
|
[1] |
ASSY FRONT WHEEL LH
|
0.0000(lbs); 0.000
|
| 007. |
3523011810
|
[1] |
TIRE
|
17.6000(lbs); 8.000
|
| 008. |
3415911850
|
[1] |
VALVE TIRE
|
0.0286(lbs); 0.013
|
| 009. |
3523011840
|
[1] |
ASSY WHEEL
|
0.0000(lbs); 0.000
|
| 010. |
0117351425
|
[12] |
BOLT
|
0.1166(lbs); 0.053
|
| 011. |
0451250140
|
[12] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
