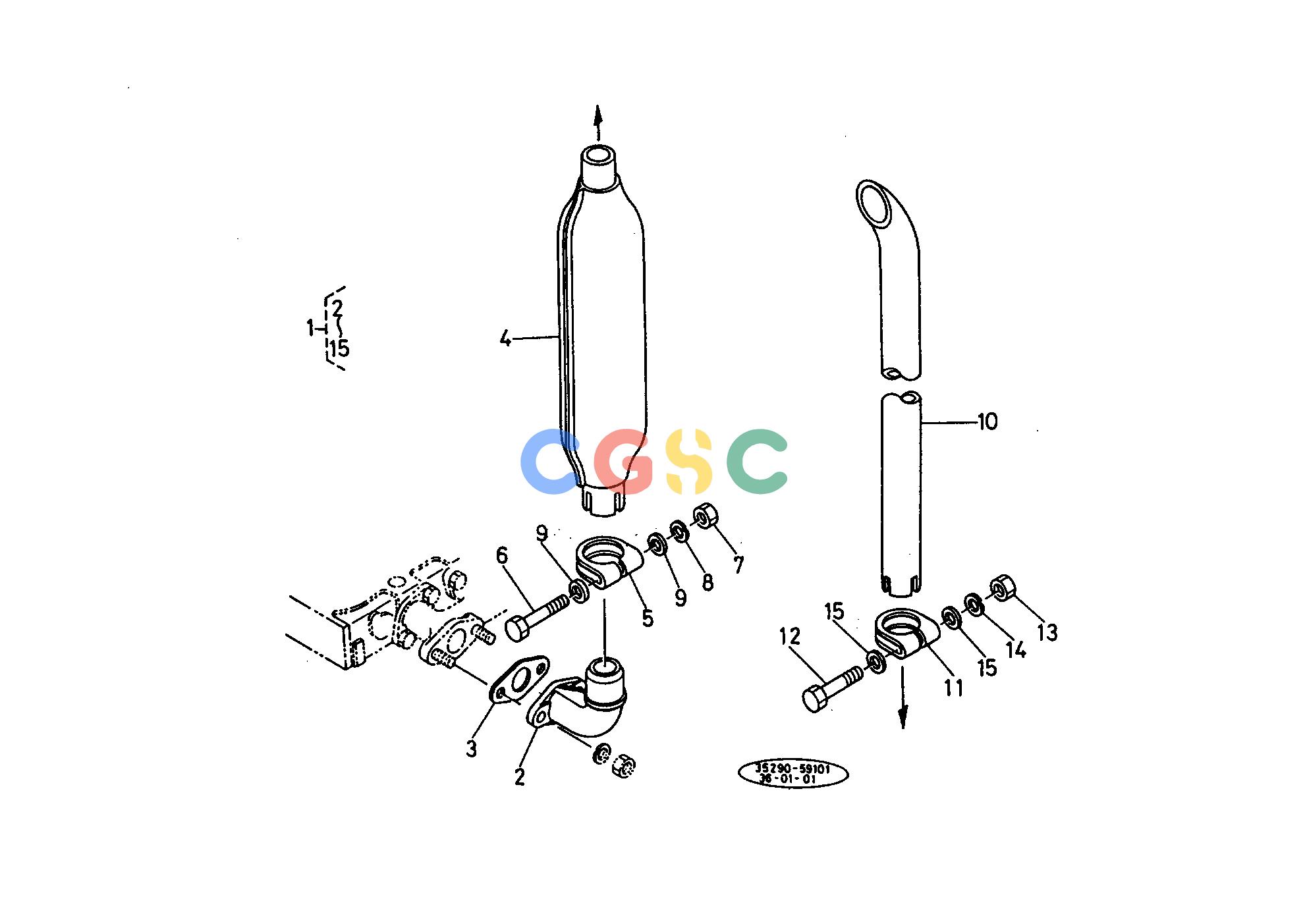

久保田零件查询140000 UPPER MUFFLER [4WD] AIR CLEANER AND MUFFLEREPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
654 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3529063100
|
[1] |
ASSY MUFFLER
|
8.4700(lbs); 3.850
|
| 002. |
1557512320
|
[1] |
FLANGE MUFFLER
|
1.6500(lbs); 0.750
|
| 003. |
1522112370
|
[1] |
GASKET MUFFLER FLANG
|
0.0000(lbs); 0.000
|
| 004. |
1557512110
|
[1] |
MUFFLER
|
0.0000(lbs); 0.000
|
| 005. |
1557512130
|
[1] |
BAND MUFFLER
|
0.0000(lbs); 0.000
|
| 006. |
0115350880
|
[1] |
BOLT
|
0.0660(lbs); 0.030
|
| 007. |
0215650080
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 008. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 009. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 010. |
3529012410
|
[1] |
MANIFOLD EXHAUST 1
|
0.0000(lbs); 0.000
|
| 011. |
1557512430
|
[1] |
BAND
|
0.0000(lbs); 0.000
|
| 012. |
0115350860
|
[1] |
BOLT
|
0.0528(lbs); 0.024
|
| 013. |
0215650080
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 014. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 015. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
