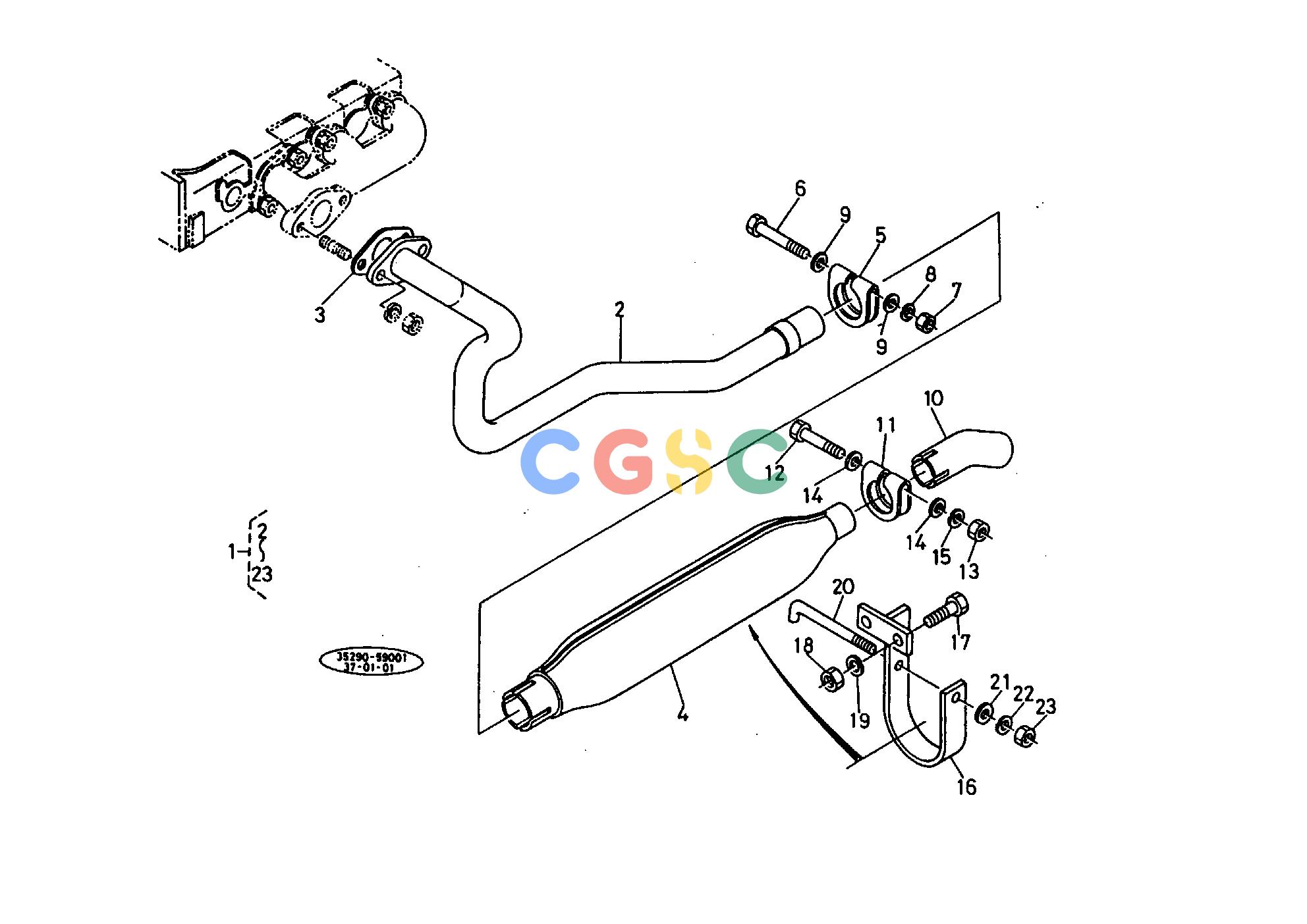

久保田零件查询141000 UNDER MUFFLER AIR CLEANER AND MUFFLEREPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
432 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3529062100
|
[1] |
ASSY MUFFLER
|
17.7100(lbs); 8.050
|
| 002. |
3529062110
|
[1] |
PIPE MUFFLER 1
|
4.5100(lbs); 2.050
|
| 003. |
1522112370
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 004. |
1557512110
|
[1] |
MUFFLER
|
0.0000(lbs); 0.000
|
| 005. |
1557512130
|
[1] |
BAND
|
0.0000(lbs); 0.000
|
| 006. |
0115350880
|
[1] |
BOLT
|
0.0660(lbs); 0.030
|
| 007. |
0215650080
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 008. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 009. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 010. |
3529062130
|
[1] |
PIPE MUFFLER 2
|
0.0000(lbs); 0.000
|
| 011. |
1557512430
|
[1] |
BAND
|
0.0000(lbs); 0.000
|
| 012. |
0115350865
|
[1] |
BOLT
|
0.0550(lbs); 0.025
|
| 013. |
0215650080
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 014. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 015. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 016. |
3529062160
|
[1] |
SUPPORT MUFFLER
|
1.0120(lbs); 0.460
|
| 017. |
0117351020
|
[2] |
BOLT
|
0.0374(lbs); 0.017
|
| 018. |
0211850100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 019. |
0451250100
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 020. |
3511062170
|
[1] |
BOLT
|
0.1100(lbs); 0.050
|
| 021. |
0401350080
|
[1] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 022. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 023. |
0205450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
