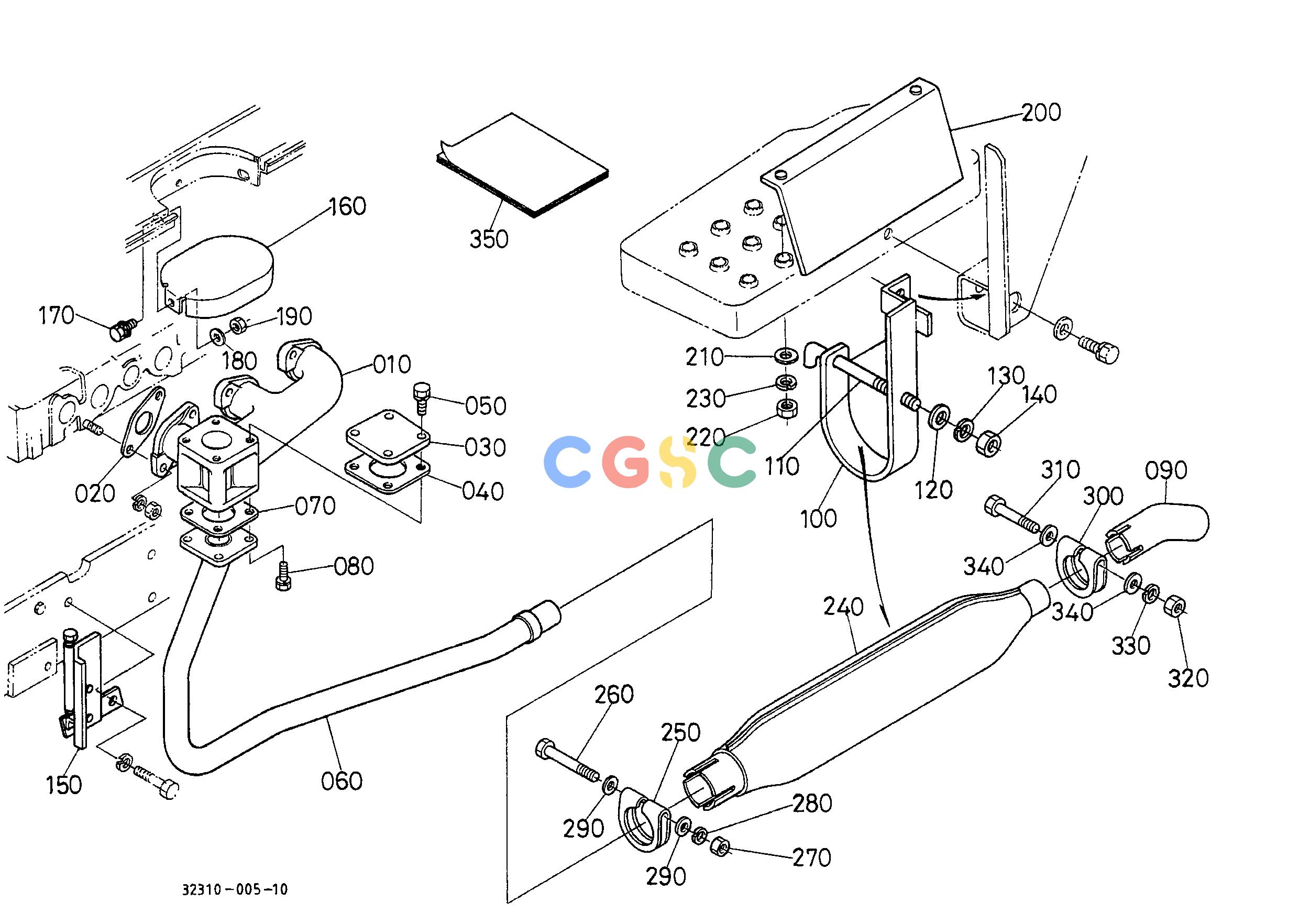

久保田零件查询T01502 UNDER MUFFLER [OLD TYPE] [OPTION] ## S.No.:L2350F;<=19999,L2350DT;<=59999 ENGINEEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
714 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1732512310
|
[1] |
MANIFOLD EXHAUST
|
0.0000(lbs); 0.000
|
| 010. |
1732512312
|
[1] |
MANIFOLD EXHAUST
|
7.0400(lbs); 3.200
|
| 020. |
1529612350
|
[3] |
GASKET EX-MANIFOLD
|
0.0550(lbs); 0.025
|
| 030. |
1735592850
|
[1] |
COVER MANIFOLD
|
0.0000(lbs); 0.000
|
| 030. |
1735592852
|
[1] |
COVER MANIFOLD
|
0.5500(lbs); 0.250
|
| 040. |
T007016420
|
[1] |
GASKET MUFFLER
|
0.0022(lbs); 0.001
|
| 050. |
0112350820
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 060. |
3501062110
|
[1] |
PIPE MUFFLER
|
4.4000(lbs); 2.000
|
| 070. |
T007016420
|
[1] |
GASKET MUFFLER
|
0.0022(lbs); 0.001
|
| 080. |
0112350825
|
[4] |
BOLT
|
0.0286(lbs); 0.013
|
| 090. |
3243062130
|
[1] |
PIPE MUFFLER
|
0.3300(lbs); 0.150
|
| 100. |
3240064550
|
[1] |
SUPPORT MUFFLER
|
1.2540(lbs); 0.570
|
| 110. |
3511062170
|
[1] |
BOLT
|
0.1100(lbs); 0.050
|
| 120. |
0401350080
|
[1] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 130. |
0451260080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 140. |
0205450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 150. |
3501026150
|
[1] |
COVER
|
0.4400(lbs); 0.200
|
| 160. |
3501034130
|
[1] |
COVER
|
0.4400(lbs); 0.200
|
| 170. |
0112550820
|
[3] |
BOLT
|
0.0308(lbs); 0.014
|
| 180. |
0401350080
|
[3] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 190. |
0211450080
|
[3] |
NUT
|
0.0110(lbs); 0.005
|
| 200. |
3240064582
|
[1] |
COVER UNDER MUFFLER
|
0.6600(lbs); 0.300
|
| 210. |
0401560080
|
[2] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 220. |
0211450080
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 230. |
0451260080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 240. |
1557512110
|
[1] |
MUFFLER
|
0.0000(lbs); 0.000
|
| 240. |
1522112116
|
[1] |
MUFFLER
|
5.0600(lbs); 2.300
|
| 250. |
1557512130
|
[1] |
BAND MUFFLER
|
0.0000(lbs); 0.000
|
| 250. |
1522112133
|
[1] |
BAND MUFFLER
|
0.2310(lbs); 0.105
|
| 260. |
0115350880
|
[1] |
BOLT
|
0.0660(lbs); 0.030
|
| 270. |
0215650080
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 280. |
0451260080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 290. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 300. |
1557512430
|
[1] |
BAND PIPE
|
0.0000(lbs); 0.000
|
| 300. |
1522112433
|
[1] |
BAND PIPE
|
0.1100(lbs); 0.050
|
| 310. |
0115350860
|
[1] |
BOLT
|
0.0528(lbs); 0.024
|
| 320. |
0215650080
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 330. |
0451260080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 340. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 350. |
3243098213
|
[1] |
MANUAL INSTRUCTION
|
0.0088(lbs); 0.004
|
