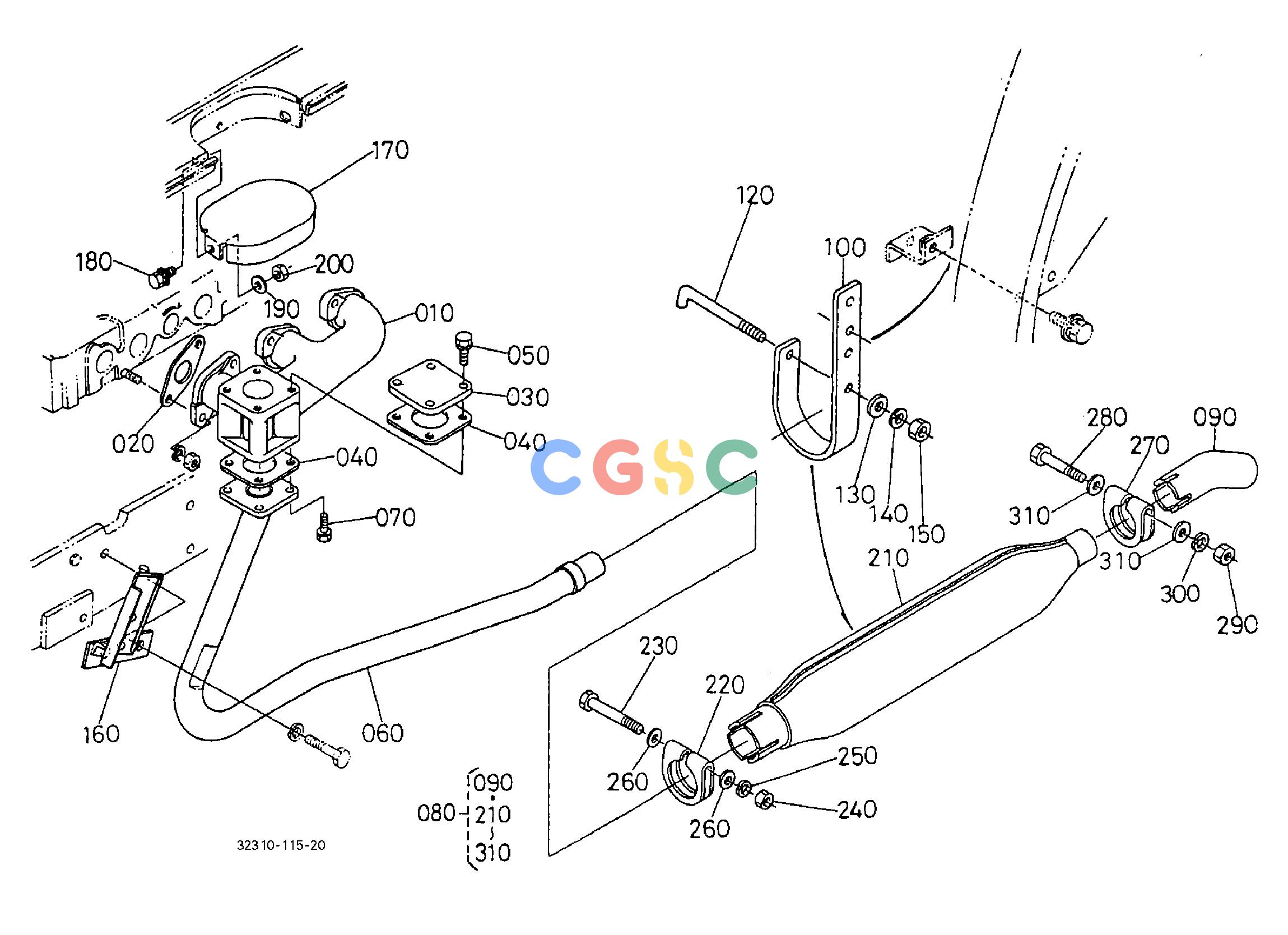

Pos.	Part No	Qty	Parts name	Comments
010.	1732512312	[1]	MANIFOLD EXHAUST	7.0400(lbs); 3.200
020.	1552112350	[3]	GASKET EX-MANIFOLD	0.0000(lbs); 0.000
030.	1735592852	[1]	COVER MANIFOLD	0.5500(lbs); 0.250
040.	T007016420	[2]	GASKET MUFFLER	0.0022(lbs); 0.001
050.	0112350820	[4]	BOLT	0.0242(lbs); 0.011
060.	3501062110	[1]	PIPE MUFFLER	4.4000(lbs); 2.000
060.	3233062110	[1]	PIPE MUFFLER	4.9280(lbs); 2.240
070.	0112350822	[4]	BOLT	0.0264(lbs); 0.012
080.	3240288700	[1]	ASSY MUFFLER UNDER	6.8200(lbs); 3.100
090.	3511062130	[1]	PIPE MUFFLER	0.2420(lbs); 0.110
100.	3231062160	[1]	SUPPORT MUFFLER	1.2100(lbs); 0.550
120.	3511062170	[1]	BOLT	0.1100(lbs); 0.050
130.	0401350080	[1]	WASHER PLAIN	0.0066(lbs); 0.003
140.	0451260080	[1]	WASHER SPRING	0.0044(lbs); 0.002
150.	0205450080	[1]	NUT	0.0110(lbs); 0.005
160.	3501026150	[1]	COVER	0.4400(lbs); 0.200
170.	3501034130	[1]	COVER	0.4400(lbs); 0.200
180.	0112550820	[3]	BOLT	0.0308(lbs); 0.014
190.	0401350080	[3]	WASHER PLAIN	0.0066(lbs); 0.003
200.	0211450080	[3]	NUT	0.0110(lbs); 0.005
210.	1522112116	[1]	MUFFLER	5.0600(lbs); 2.300
220.	1522112133	[1]	BAND MUFFLER	0.2310(lbs); 0.105
230.	0115350880	[1]	BOLT	0.0660(lbs); 0.030
240.	0215650080	[1]	NUT	0.0088(lbs); 0.004
250.	0451260080	[1]	WASHER SPRING	0.0044(lbs); 0.002
260.	0401250080	[2]	WASHER PLAIN	0.0022(lbs); 0.001
270.	1522112433	[1]	BAND PIPE	0.1100(lbs); 0.050
280.	0115350860	[1]	BOLT	0.0528(lbs); 0.024
290.	0215650080	[1]	NUT	0.0088(lbs); 0.004
300.	0451260080	[1]	WASHER SPRING	0.0044(lbs); 0.002
310.	0401250080	[2]	WASHER PLAIN	0.0022(lbs); 0.001
