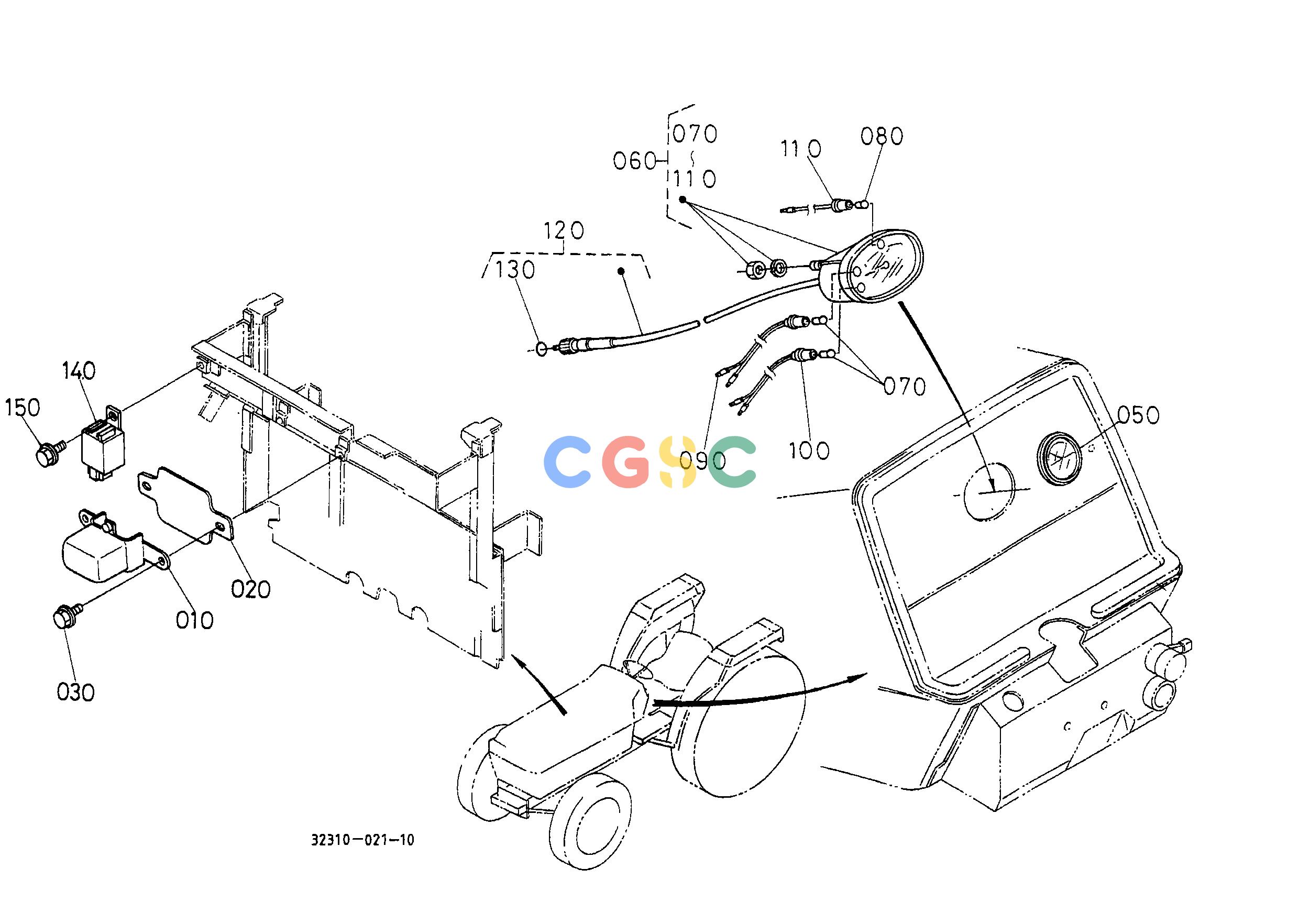

久保田零件查询T03902 REGULATOR AND METER ## S.No.:L2350F;>=20001 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
587 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3325174010
|
[1] |
ASSY REGULATOR
|
0.7700(lbs); 0.350
|
| 020. |
3715033420
|
[1] |
COVER REGULATOR
|
0.0660(lbs); 0.030
|
| 030. |
0175450610
|
[2] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 050. |
6690854750
|
[1] |
METER FUEL
|
0.3300(lbs); 0.150
|
| 060. |
3526034602
|
[1] |
METER TRACTOR
|
0.6820(lbs); 0.310
|
| 070. |
3215031740
|
[2] |
BULB
|
0.0066(lbs); 0.003
|
| 080. |
3415034620
|
[1] |
BULB
|
0.0022(lbs); 0.001
|
| 090. |
3715034630
|
[1] |
COMP.SOCKET
|
0.0440(lbs); 0.020
|
| 100. |
3715034640
|
[1] |
COMP.SOCKET
|
0.0440(lbs); 0.020
|
| 110. |
3715034680
|
[1] |
COMP.SOCKET
|
0.0330(lbs); 0.015
|
| 120. |
3134134654
|
[1] |
CABLE ELEXIBLE
|
0.4400(lbs); 0.200
|
| 130. |
0481110080
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 140. |
3240033700
|
[1] |
HAZARD UNIT
|
0.1540(lbs); 0.070
|
| 150. |
0175450616
|
[1] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
