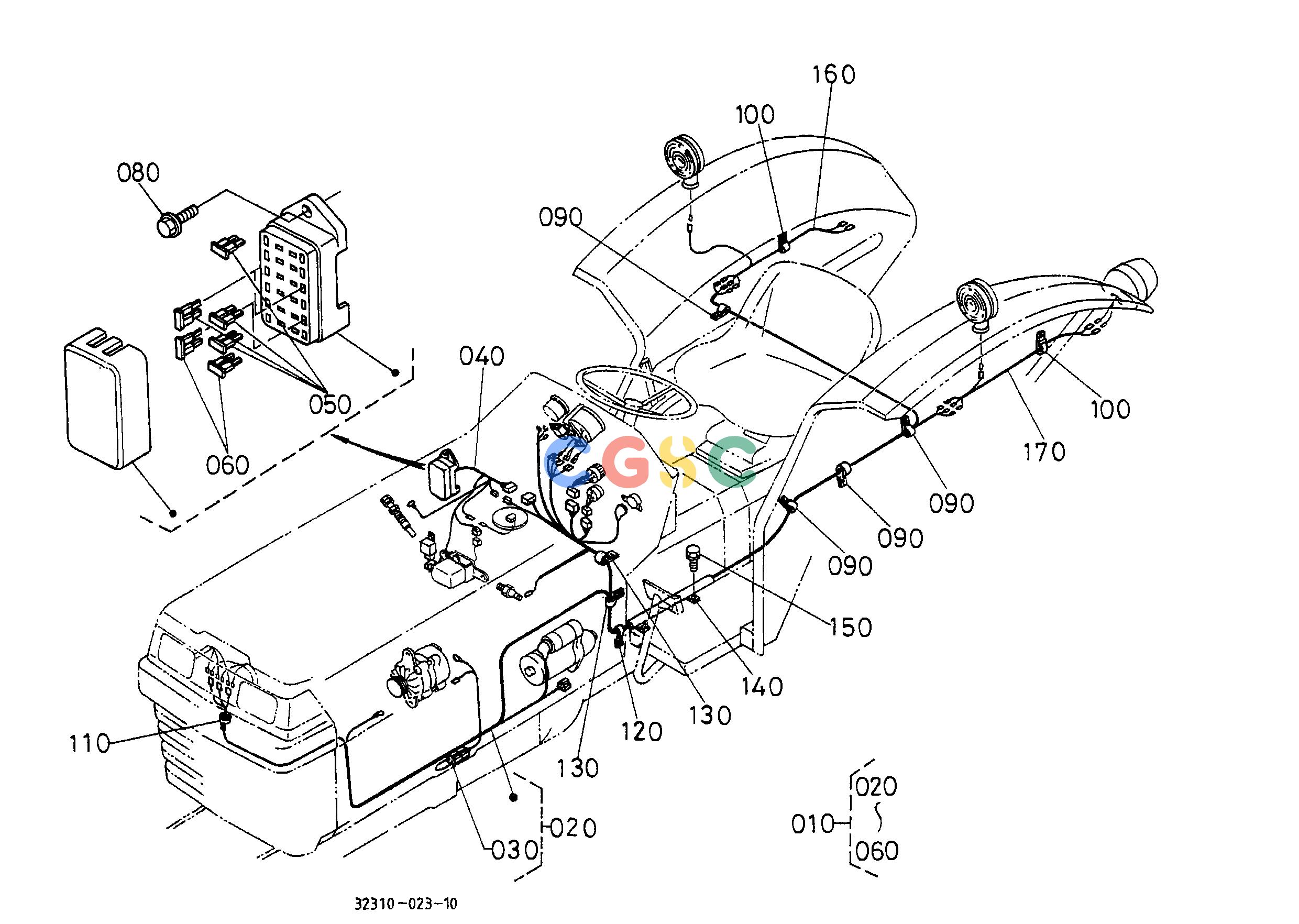

久保田零件查询T04003 ELECTRICAL WIRING [OLD TYPE] ## S.No.:L2350DT;<=59999 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
414 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3504045900
|
[1] |
ASSY WIRE HARNESS
|
2.2000(lbs); 1.000
|
| 020. |
3504045910
|
[1] |
WIRE HARNESS
|
1.5620(lbs); 0.710
|
| 030. |
3843034530
|
[1] |
LINK FUSIBLE
|
0.0220(lbs); 0.010
|
| 040. |
3240045920
|
[1] |
WIRE HARNESS
|
0.6490(lbs); 0.295
|
| 050. |
3135133630
|
[4] |
FUSE
|
0.0044(lbs); 0.002
|
| 060. |
3135133640
|
[2] |
FUSE
|
0.0044(lbs); 0.002
|
| 080. |
0175450616
|
[2] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 090. |
3224034460
|
[2] |
CLAMP CORD
|
0.0242(lbs); 0.011
|
| 100. |
1382467590
|
[2] |
CLAMP CORD
|
0.0044(lbs); 0.002
|
| 110. |
1382467580
|
[1] |
CLAMP CORD
|
0.0132(lbs); 0.006
|
| 120. |
1223467580
|
[1] |
CLAMP CORD
|
0.0264(lbs); 0.012
|
| 130. |
1381667580
|
[2] |
CLAMP CORD
|
0.0088(lbs); 0.004
|
| 140. |
3715034480
|
[1] |
RETAINER CORD
|
0.1320(lbs); 0.060
|
| 150. |
0112360816
|
[3] |
BOLT
|
0.0220(lbs); 0.010
|
| 160. |
3517034360
|
[1] |
WIRE HARNESS
|
0.0550(lbs); 0.025
|
| 170. |
3517034370
|
[1] |
WIRE HARNESS
|
0.0770(lbs); 0.035
|
