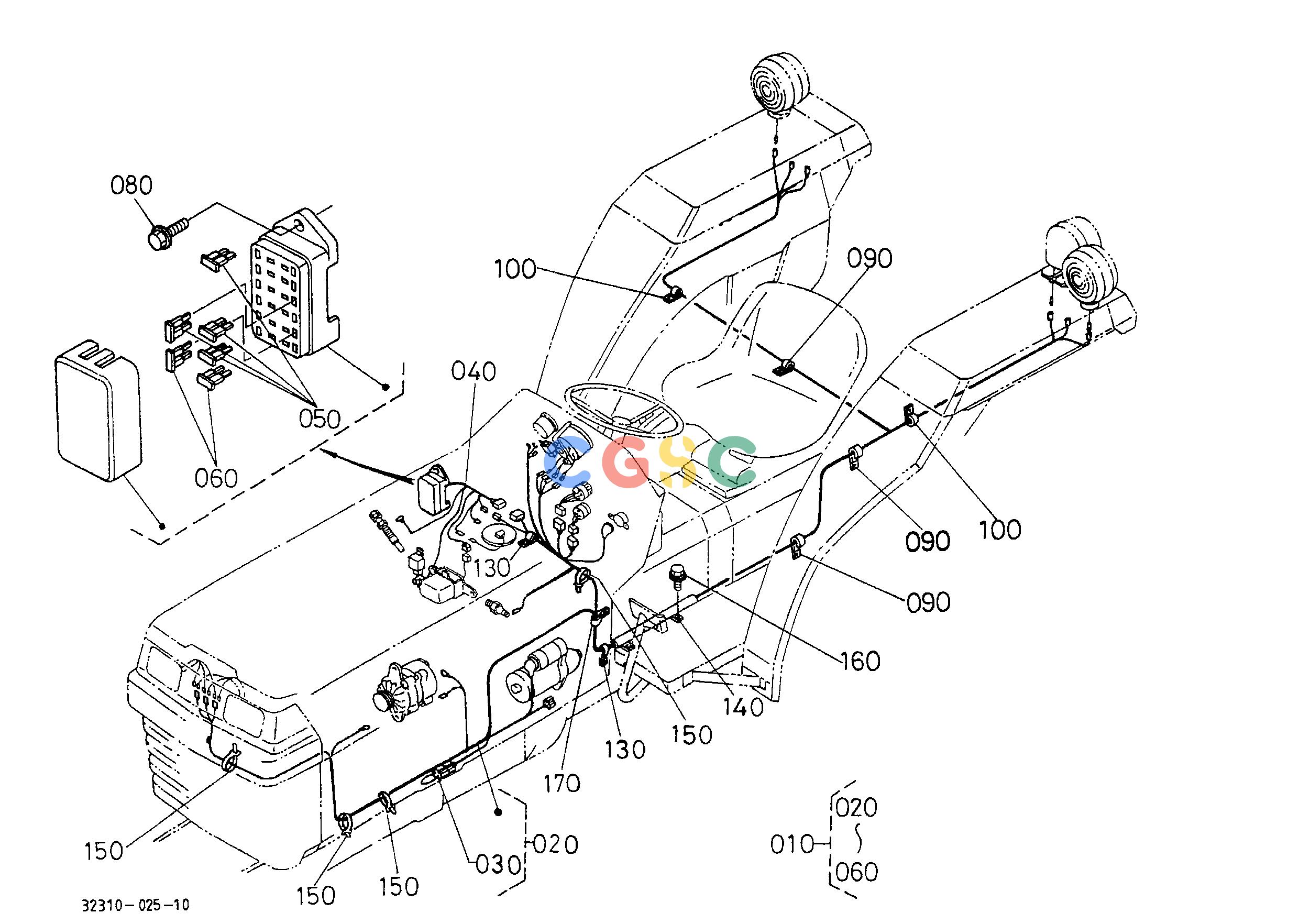

久保田零件查询T04004 ELECTRICAL WIRING [NEW TYPE] ## S.No.:L2350DT;>=60001 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
236 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3231034400
|
[1] |
ASSY WIRE HARNESS
|
2.0900(lbs); 0.950
|
| 020. |
3231034410
|
[1] |
WIRE HARNESS
|
1.4960(lbs); 0.680
|
| 030. |
3843034530
|
[1] |
LINK FUSIBLE
|
0.0220(lbs); 0.010
|
| 040. |
3231034420
|
[1] |
WIRE HARNESS
|
0.5940(lbs); 0.270
|
| 050. |
3135133630
|
[4] |
FUSE
|
0.0044(lbs); 0.002
|
| 060. |
3135133640
|
[2] |
FUSE
|
0.0044(lbs); 0.002
|
| 080. |
0175450616
|
[2] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 090. |
3224034460
|
[3] |
CLAMP CORD
|
0.0242(lbs); 0.011
|
| 100. |
1382467590
|
[2] |
CLAMP CORD
|
0.0044(lbs); 0.002
|
| 130. |
1381667580
|
[2] |
CLAMP CORD
|
0.0088(lbs); 0.004
|
| 140. |
3231034480
|
[1] |
RETAINER CORD
|
0.1100(lbs); 0.050
|
| 150. |
5531141260
|
[4] |
BAND CORD
|
0.0154(lbs); 0.007
|
| 160. |
0175450812
|
[2] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 170. |
5531141260
|
[1] |
BAND CORD
|
0.0154(lbs); 0.007
|
