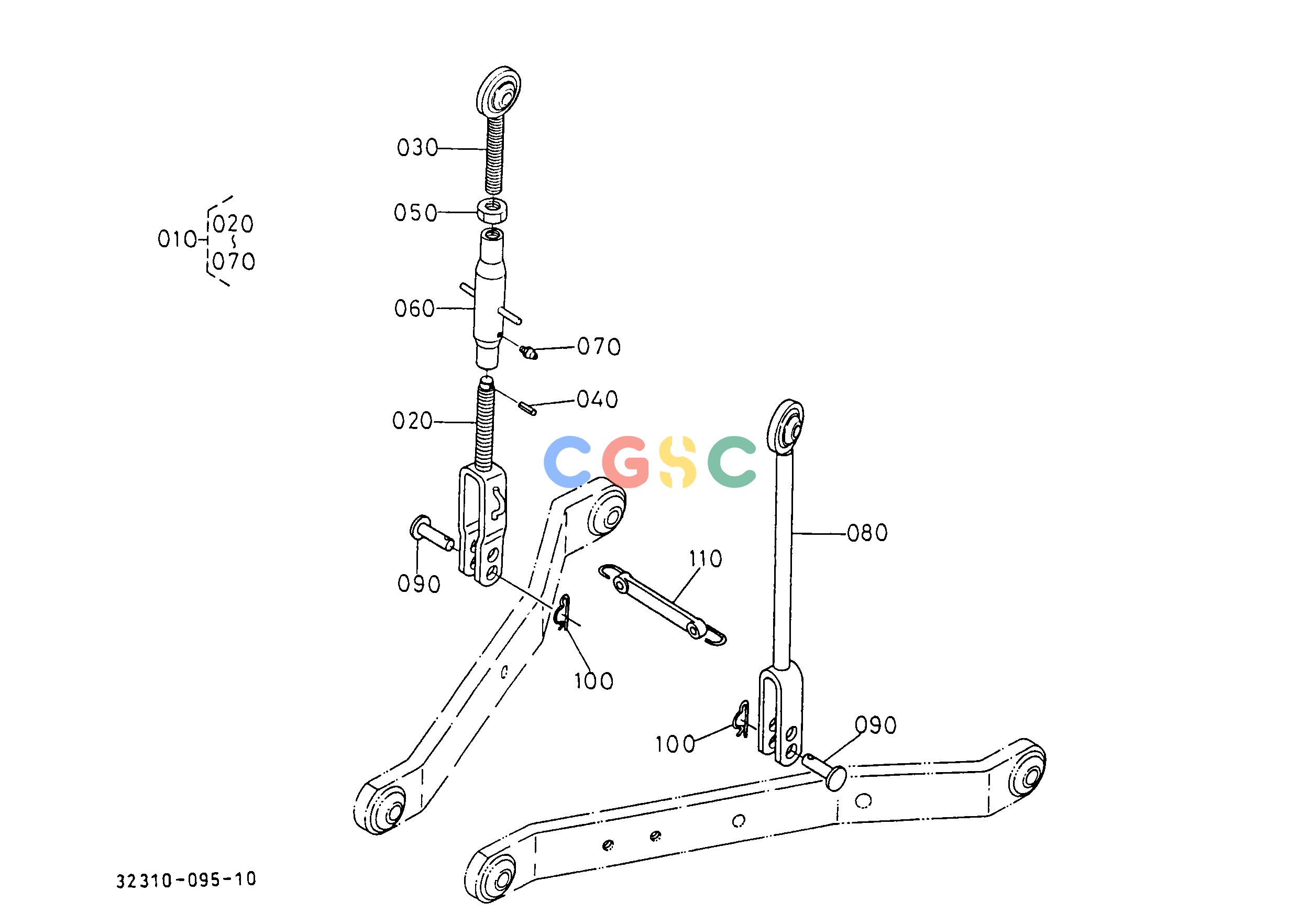

久保田零件查询T09700 3-POINT LINKAGE 2 (LIFT ROD) HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
224 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3240071560
|
[1] |
ASSY ROD LIFT RH
|
4.7300(lbs); 2.150
|
| 010. |
3231071560
|
[1] |
ASSY ROD LIFT RH
|
4.6200(lbs); 2.100
|
| 020. |
3240071520
|
[1] |
ROD LIFT LOWER
|
2.0460(lbs); 0.930
|
| 030. |
3133171510
|
[1] |
ROD LIFT UPPER
|
1.2760(lbs); 0.580
|
| 040. |
0541100320
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 050. |
3511071570
|
[1] |
NUT
|
0.1100(lbs); 0.050
|
| 060. |
3818771770
|
[1] |
ROD LIFT MIDDLE
|
1.1880(lbs); 0.540
|
| 070. |
0661310675
|
[1] |
NIPPLE GREASE
|
0.0066(lbs); 0.003
|
| 080. |
3240071540
|
[1] |
ROD LIFT LH
|
3.4540(lbs); 1.570
|
| 080. |
3231071540
|
[1] |
ROD LIFT LH
|
3.4100(lbs); 1.550
|
| 090. |
3818771580
|
[2] |
PIN LIFT ROD
|
0.1342(lbs); 0.061
|
| 100. |
0551551600
|
[2] |
PIN SNAP
|
0.0154(lbs); 0.007
|
| 110. |
3818771750
|
[1] |
COMP.RUBBER
|
0.0000(lbs); 0.000
|
| 110. |
3508071750
|
[1] |
COMP.RUBBER
|
0.1430(lbs); 0.065
|
