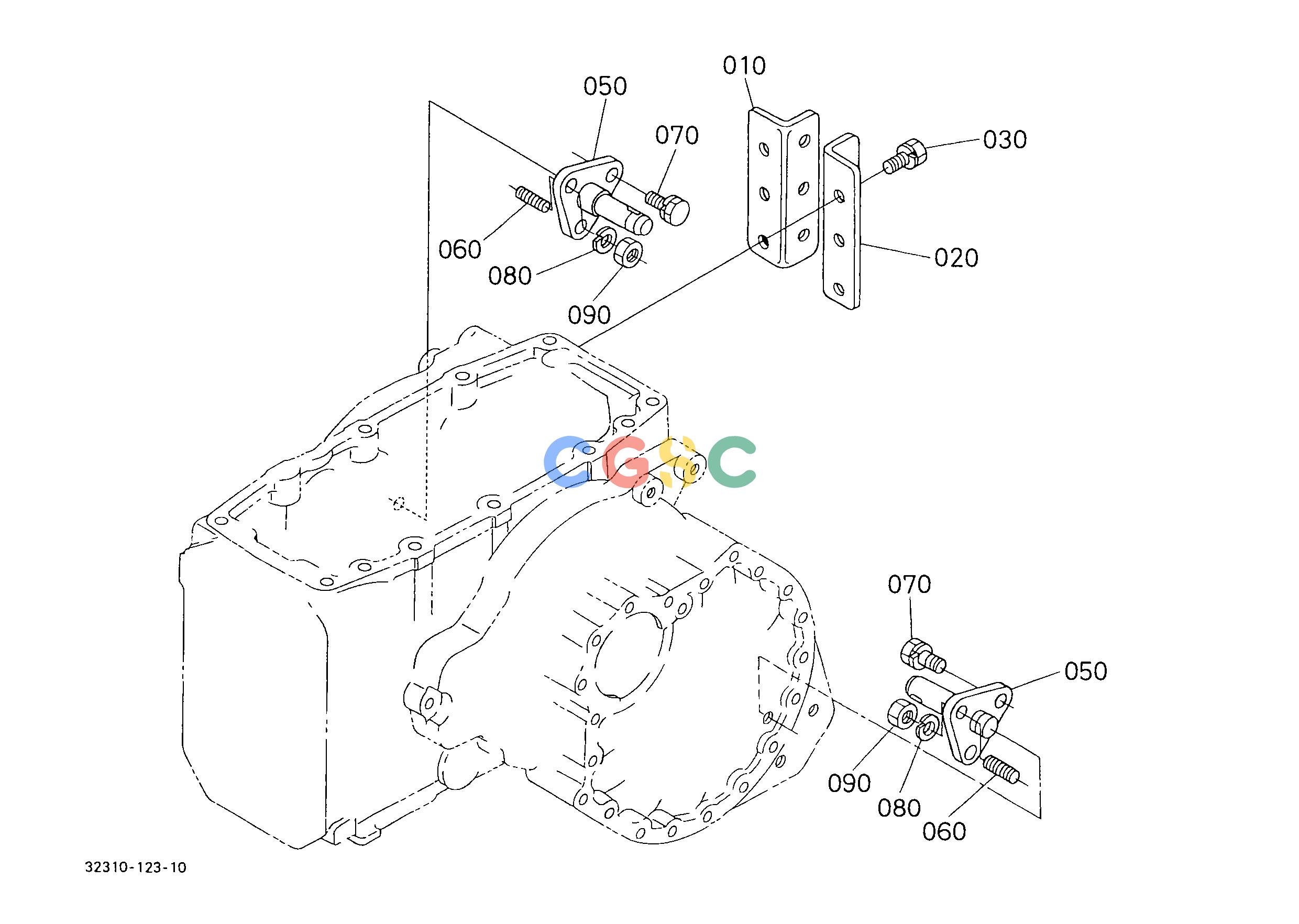

久保田零件查询T09800 TOP LINK BRACKET AND LOWER LINK HOLDER HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
654 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
9957122140
|
[1] |
HOLDER TOP LINK RH
|
2.1120(lbs); 0.960
|
| 020. |
9957122150
|
[1] |
HOLDER TOP LINK LH
|
2.1780(lbs); 0.990
|
| 030. |
0113351230
|
[6] |
BOLT
|
0.0880(lbs); 0.040
|
| 050. |
3135129820
|
[2] |
HOLDER LOWER LINK
|
1.1330(lbs); 0.515
|
| 060. |
0157451225
|
[2] |
STUD
|
0.0748(lbs); 0.034
|
| 070. |
0113351230
|
[4] |
BOLT
|
0.0880(lbs); 0.040
|
| 080. |
0451250120
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 090. |
0217650120
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
