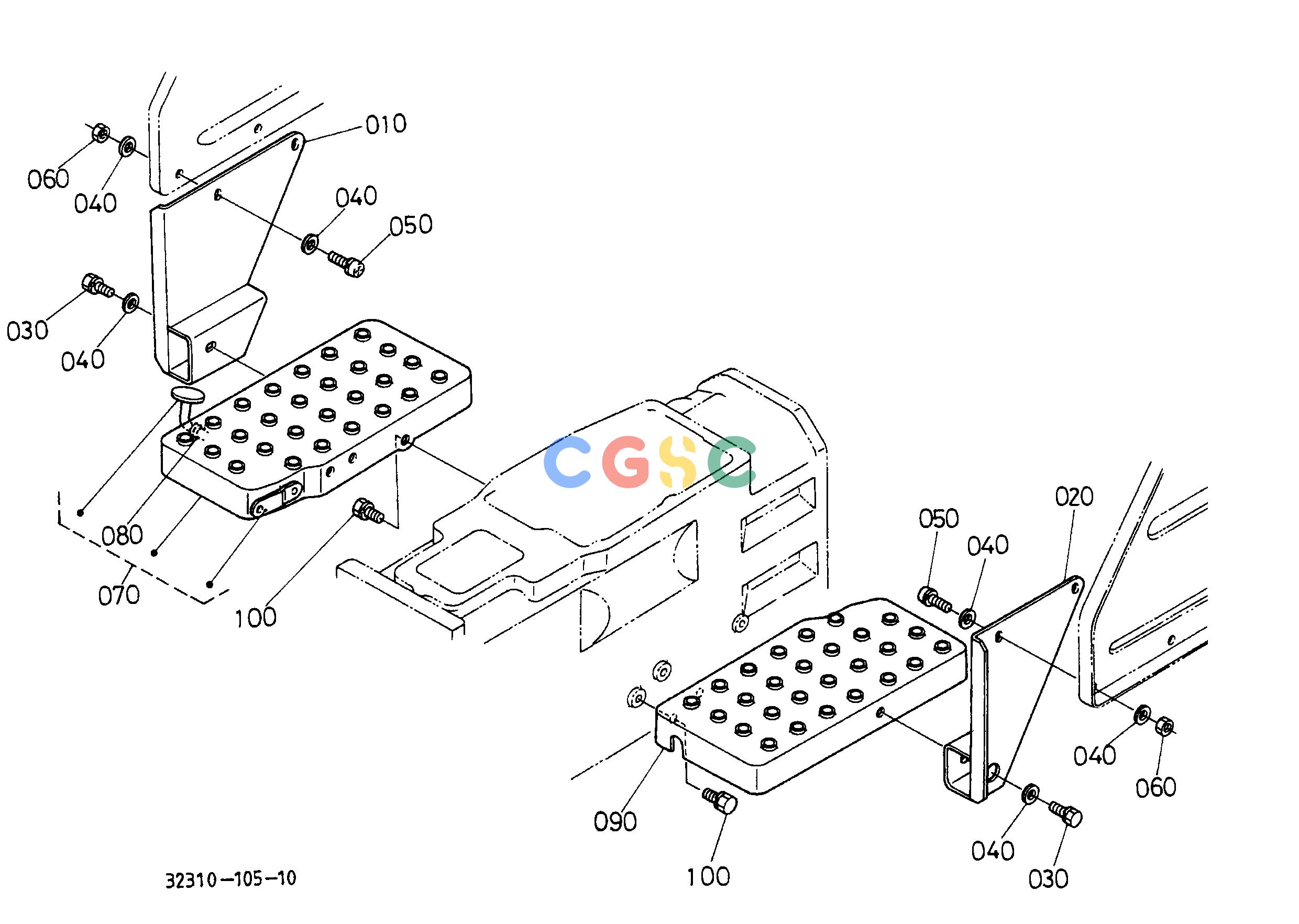

久保田零件查询T10701 STEP [OIL TYPE] ## S.No.:L2350F;<=19999,L2350DT;<=59999 HOOD/BONNETEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
212 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3240029140
|
[1] |
COVER FENDER RH
|
1.8920(lbs); 0.860
|
| 020. |
3521029160
|
[1] |
COVER FENDER LH
|
1.9140(lbs); 0.870
|
| 030. |
0112350820
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 040. |
0401560080
|
[10] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 050. |
0300450820
|
[4] |
SCREW WITH WASHER
|
0.0242(lbs); 0.011
|
| 060. |
0211450080
|
[6] |
NUT
|
0.0110(lbs); 0.005
|
| 070. |
3715029900
|
[1] |
COMP.STEP RH
|
3.9160(lbs); 1.780
|
| 080. |
3715017530
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 090. |
3715029920
|
[1] |
STEP LH
|
3.5420(lbs); 1.610
|
| 100. |
0113351016
|
[6] |
BOLT
|
0.0374(lbs); 0.017
|
