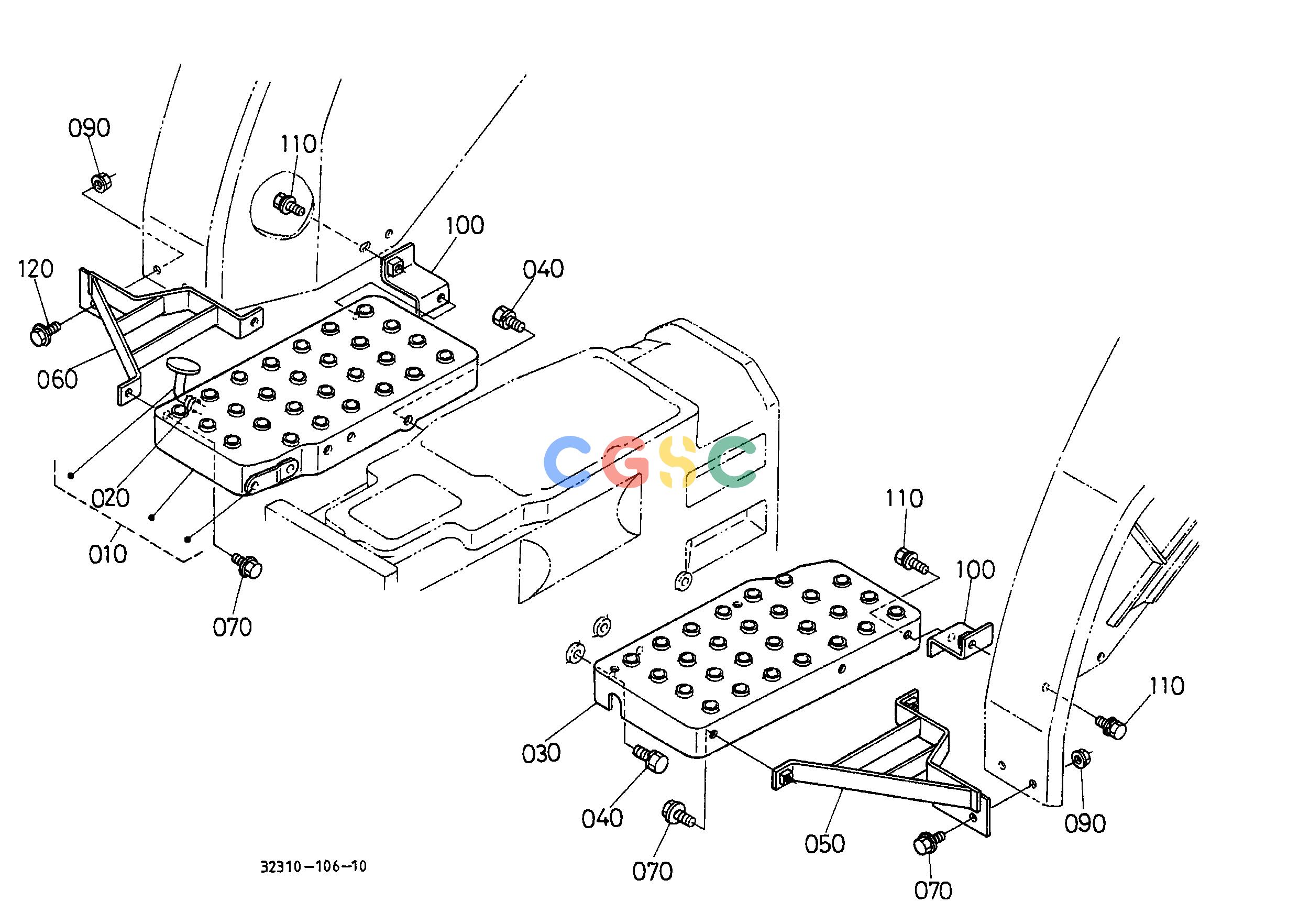

久保田零件查询T10702 STEP [NEW TYPE] ## S.No.:L2350F;>=20001,L2350DT;>=60001 HOOD/BONNETEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
264 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3231029900
|
[1] |
COMP.STEP RH
|
4.1800(lbs); 1.900
|
| 020. |
3715017530
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 030. |
3231029920
|
[1] |
STEP LH
|
3.7400(lbs); 1.700
|
| 040. |
0113351016
|
[6] |
BOLT
|
0.0374(lbs); 0.017
|
| 050. |
3231029140
|
[1] |
STEP AUX.LH
|
1.2540(lbs); 0.570
|
| 060. |
3231029150
|
[1] |
STEP AUX.RH
|
1.2540(lbs); 0.570
|
| 070. |
0175450816
|
[8] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
| 090. |
0275150080
|
[6] |
NUT FLANGE
|
0.0132(lbs); 0.006
|
| 100. |
3500029320
|
[2] |
CONNECTOR FENDER
|
0.1320(lbs); 0.060
|
| 110. |
0112560816
|
[4] |
BOLT
|
0.0220(lbs); 0.010
|
| 120. |
0175450825
|
[2] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
