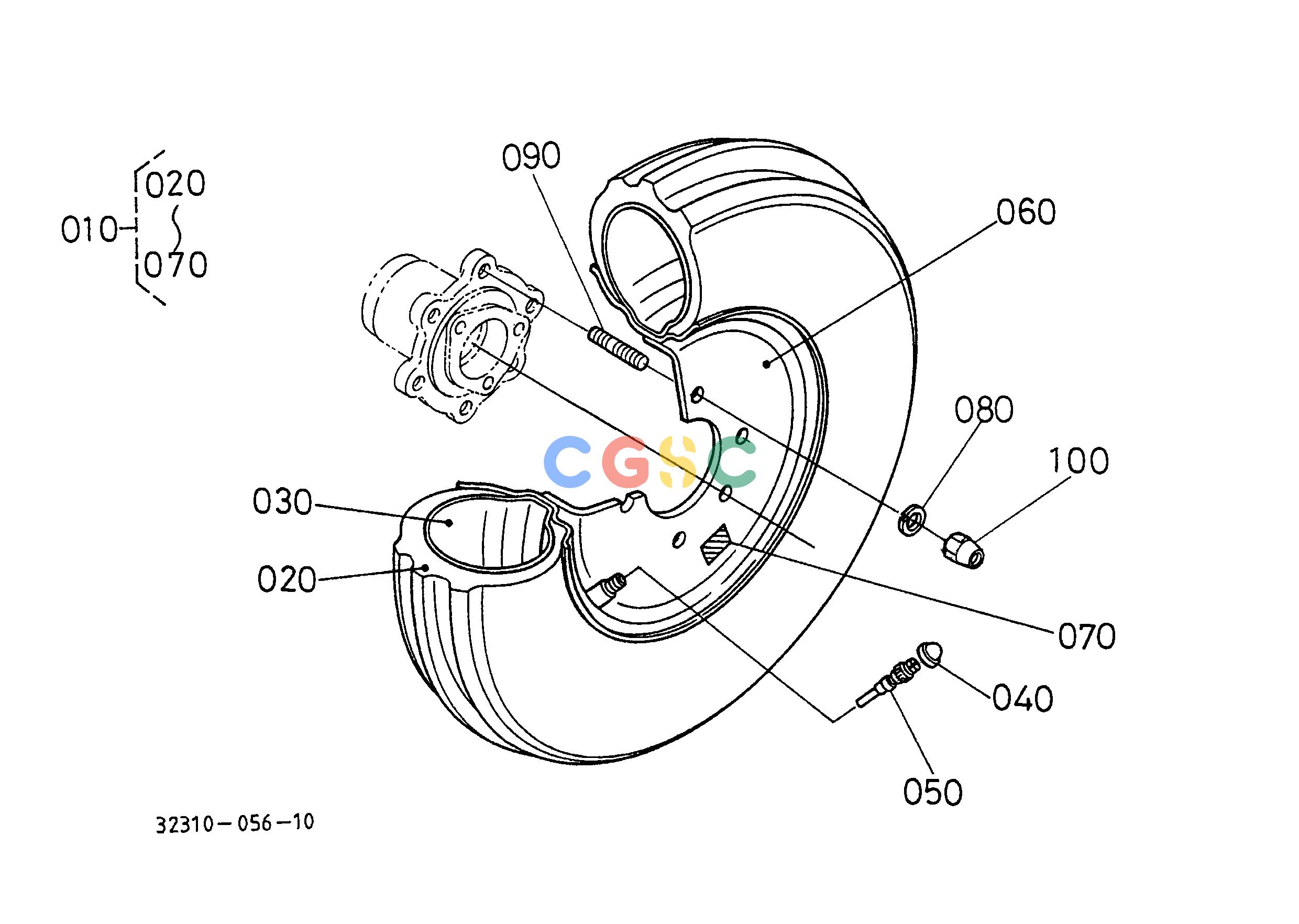

久保田零件查询T06502 FRONT WHEEL (5.00-15) FRONT/REAR TIREEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
208 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3247011600
|
[2] |
ASSY FRONT WHEEL
|
30.8000(lbs); 14.000
|
| 020. |
3227011620
|
[2] |
TIRE
|
13.8600(lbs); 6.300
|
| 030. |
3227011630
|
[2] |
TUBE
|
2.0900(lbs); 0.950
|
| 040. |
3824011690
|
[2] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 050. |
3215027740
|
[2] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 060. |
3246011640
|
[2] |
ASSY WHEEL
|
15.8400(lbs); 7.200
|
| 070. |
3247011670
|
[2] |
LABEL TIRE
|
0.0022(lbs); 0.001
|
| 080. |
0451260140
|
[12] |
WASHER SPRING
|
0.0176(lbs); 0.008
|
| 090. |
0151751428
|
[12] |
STUD
|
0.1100(lbs); 0.050
|
| 100. |
3534011390
|
[12] |
NUT
|
0.0660(lbs); 0.030
|
