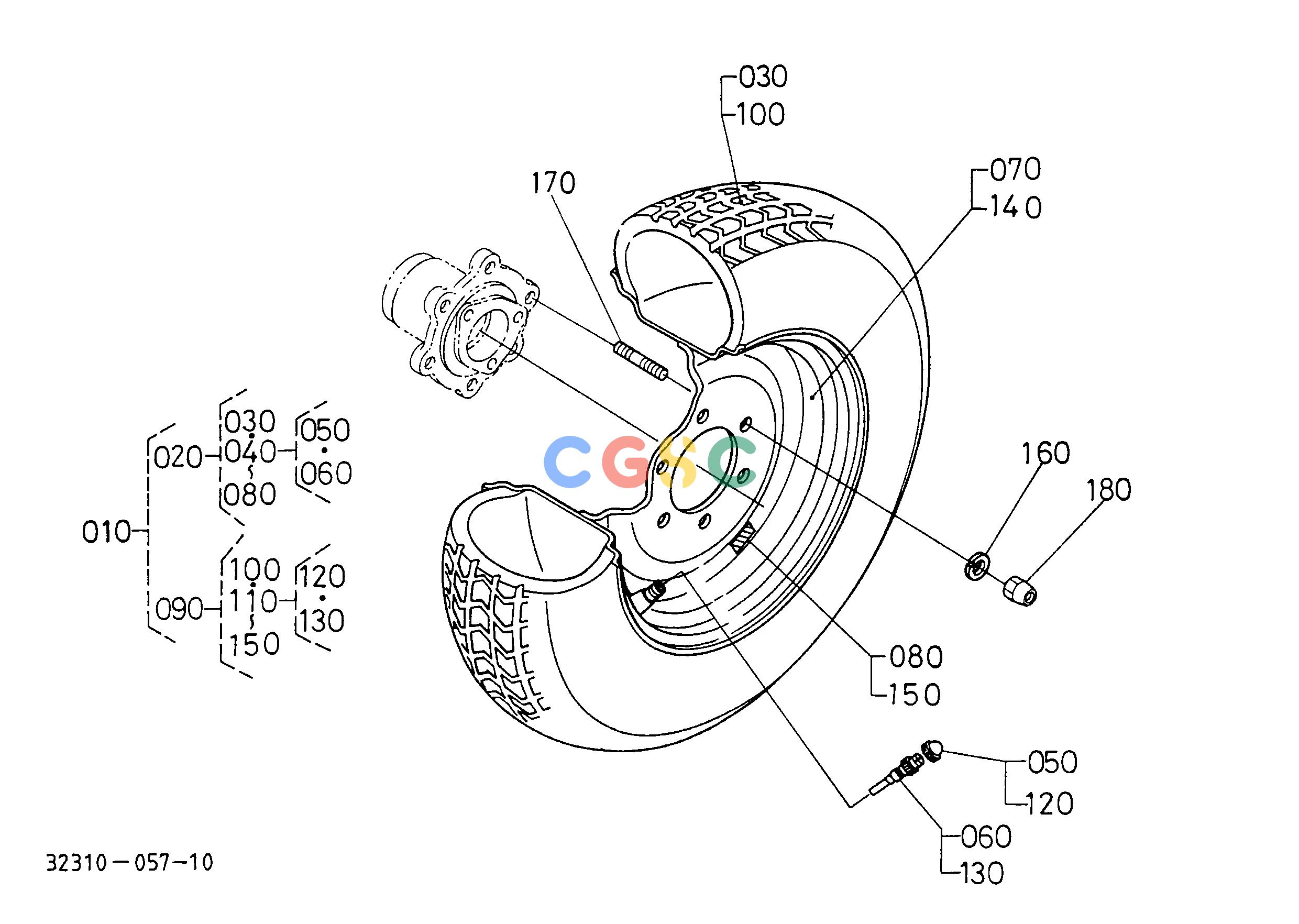

久保田零件查询T06503 FRONT WHEEL (23X8.50-12) FRONT/REAR TIREEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
861 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3246011900
|
[1] |
ASSY FRONT WHEEL
|
0.0000(lbs); 0.000
|
| 020. |
3246011910
|
[1] |
ASSY FRONT WHEEL RH
|
0.0000(lbs); 0.000
|
| 030. |
3526011810
|
[1] |
TIRE
|
15.6640(lbs); 7.120
|
| 040. |
3415911850
|
[1] |
VALVE TIRE
|
0.0286(lbs); 0.013
|
| 050. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 060. |
3215027740
|
[1] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 070. |
3246011950
|
[1] |
WHEEL
|
14.8720(lbs); 6.760
|
| 080. |
3246011720
|
[1] |
LABEL TIRE RH
|
0.0022(lbs); 0.001
|
| 090. |
3246011920
|
[1] |
ASSY FRONT WHEEL LH
|
0.0000(lbs); 0.000
|
| 100. |
3526011810
|
[1] |
TIRE
|
15.6640(lbs); 7.120
|
| 110. |
3415911850
|
[1] |
VALVE TIRE
|
0.0286(lbs); 0.013
|
| 120. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 130. |
3215027740
|
[1] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 140. |
3246011950
|
[1] |
WHEEL
|
14.8720(lbs); 6.760
|
| 150. |
3246011710
|
[1] |
LABEL TIRE LH
|
0.0022(lbs); 0.001
|
| 160. |
0451260140
|
[12] |
WASHER SPRING
|
0.0176(lbs); 0.008
|
| 170. |
0151751428
|
[12] |
STUD
|
0.1100(lbs); 0.050
|
| 180. |
3534011390
|
[12] |
NUT
|
0.0660(lbs); 0.030
|
