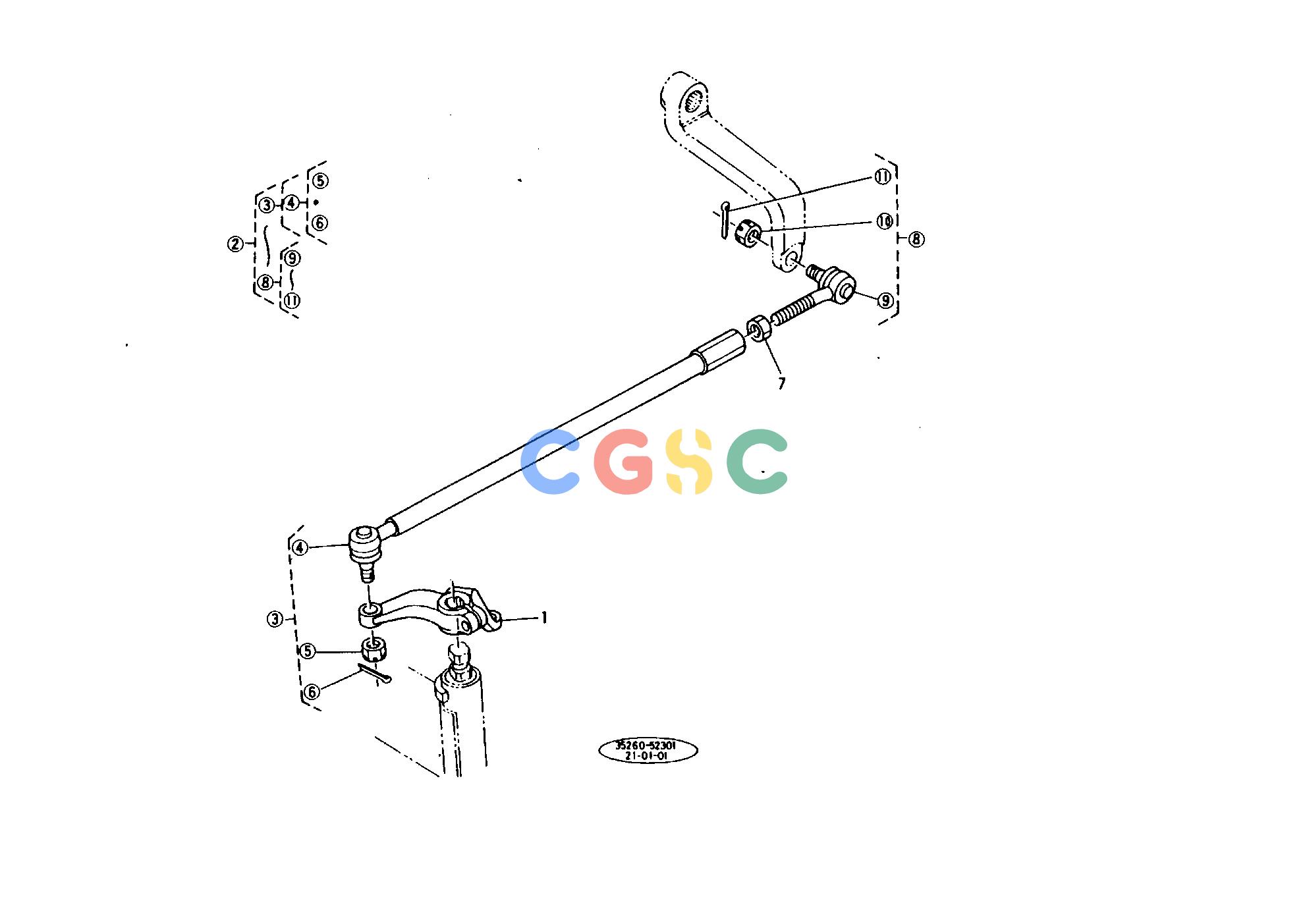

久保田零件查询071000 DRAG LINK [INTEGRAL POWER STEERING] STEERINGEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
286 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3527011220
|
[1] |
ARM KNUCKLE LH
|
3.9600(lbs); 1.800
|
| 002. |
3527012200
|
[1] |
ASSY LINK DRAG
|
0.0000(lbs); 0.000
|
| 003. |
3527012210
|
[1] |
LINK DRAG
|
0.0000(lbs); 0.000
|
| 004. |
3527012220
|
[1] |
ASSY END DRAG LINK
|
0.0000(lbs); 0.000
|
| 005. |
3527012670
|
[1] |
NUT SLOTTED
|
0.0308(lbs); 0.014
|
| 006. |
0551150328
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 007. |
3340063690
|
[1] |
NUT
|
0.1386(lbs); 0.063
|
| 008. |
3527012600
|
[1] |
ASSY END TIE ROD RH
|
1.1000(lbs); 0.500
|
| 009. |
3527012610
|
[1] |
END TIE ROD RH
|
0.0000(lbs); 0.000
|
| 010. |
3527012670
|
[1] |
NUT SLOTTED
|
0.0308(lbs); 0.014
|
| 011. |
0551150328
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
