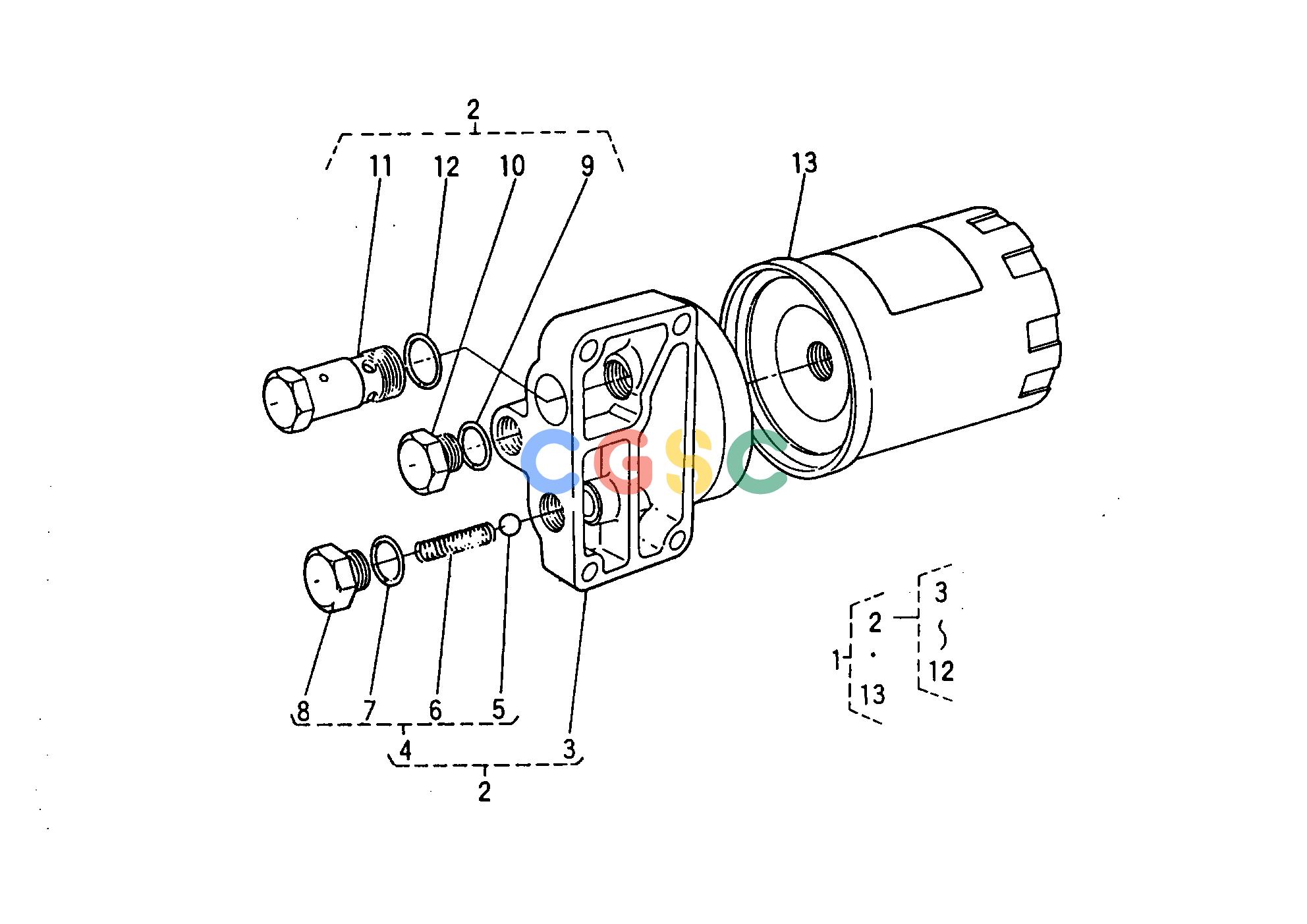

久保田零件查询T00200 OIL FILTER [COMPONENT PARTS] ENGINEEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
297 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
1521332020
|
[1] |
ASSY FILTER OIL
|
1.9580(lbs); 0.890
|
| 002. |
1521332070
|
[1] |
ASSY COVER OIL FILTE
|
1.1440(lbs); 0.520
|
| 003. |
1521332350
|
[1] |
COVER
|
0.7480(lbs); 0.340
|
| 004. |
1510132700
|
[1] |
ASSY VALVE SAFETY
|
0.0792(lbs); 0.036
|
| 005. |
1510136970
|
[1] |
VALVE SAFETY
|
0.0088(lbs); 0.004
|
| 006. |
1510136950
|
[1] |
SPRING
|
0.0044(lbs); 0.002
|
| 007. |
1510136920
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 008. |
1510132940
|
[1] |
PLUG
|
0.0660(lbs); 0.030
|
| 009. |
1521336920
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 010. |
1521332940
|
[1] |
PLUG
|
0.0374(lbs); 0.017
|
| 011. |
1521336070
|
[1] |
COMP VALVE RELIEF
|
0.2860(lbs); 0.130
|
| 012. |
0481100200
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 013. |
1521332090
|
[1] |
CARTRIDGE OIL FILTER
|
0.7876(lbs); 0.358
|
