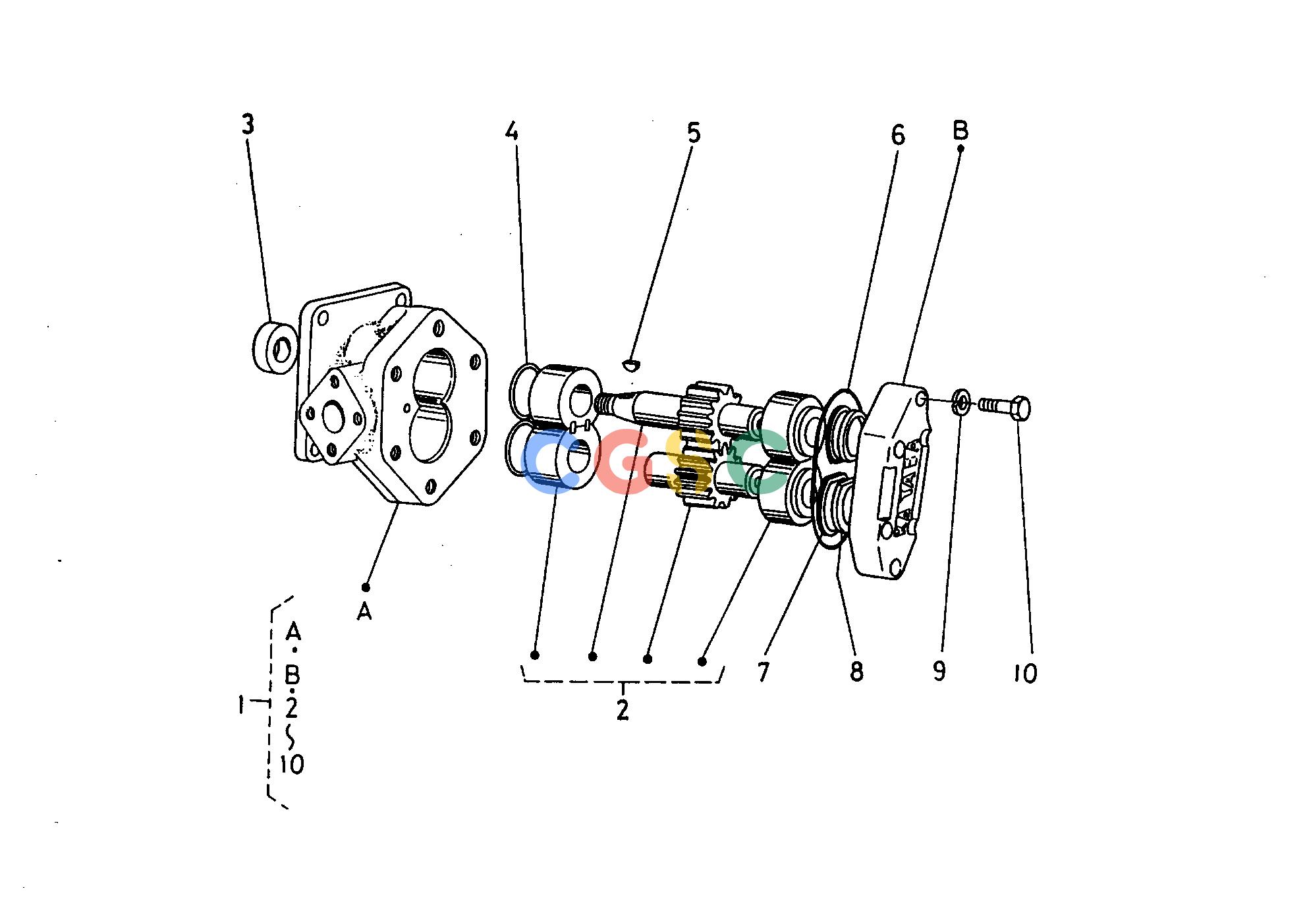

久保田零件查询T06001 HYDRAULIC PUMP [COMPONENT PARTS] ## S.No.;<=12631 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
447 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3715036100
|
[1] |
PUMP HYDRAULIC
|
0.0000(lbs); 0.000
|
| 002. |
3715036200
|
[1] |
ASSY BUSH GEAR
|
1.3970(lbs); 0.635
|
| 003. |
3715036230
|
[1] |
SEAL OIL
|
0.0154(lbs); 0.007
|
| 004. |
3227036260
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 005. |
3227036210
|
[1] |
KEY WOODRUFF
|
0.0044(lbs); 0.002
|
| 006. |
3227036220
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 007. |
3227036250
|
[2] |
RING SEARING
|
0.0022(lbs); 0.001
|
| 008. |
3227036240
|
[2] |
RING SUPPORT
|
0.0110(lbs); 0.005
|
| 009. |
0451250080
|
[6] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 010. |
0115650825
|
[6] |
BOLT
|
0.0286(lbs); 0.013
|
