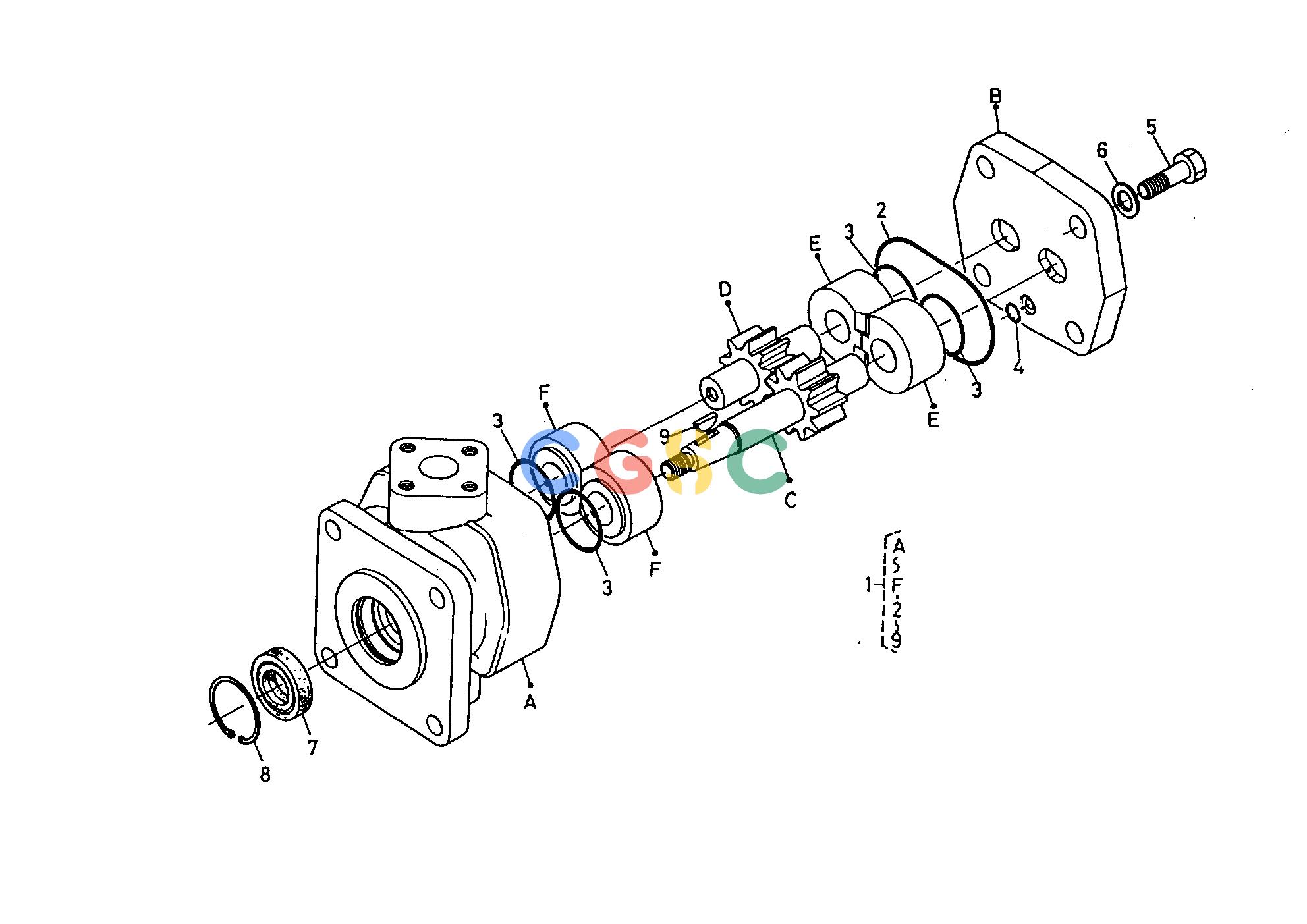

久保田零件查询T06002 HYDRAULIC PUMP [COMPONENT PARTS] ## S.No.;>=12632 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
746 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3511076100
|
[1] |
ASSY PUMP HYDRAULIC
|
4.1800(lbs); 1.900
|
| 002. |
0481050550
|
[1] |
RING
|
0.0044(lbs); 0.002
|
| 003. |
3818076172
|
[4] |
SQUARE RING
|
0.0044(lbs); 0.002
|
| 004. |
0481000050
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 005. |
0115651030
|
[4] |
BOLT
|
0.0440(lbs); 0.020
|
| 006. |
0401150100
|
[4] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 007. |
3138176190
|
[1] |
SEAL OIL
|
0.0154(lbs); 0.007
|
| 008. |
0461100280
|
[1] |
CIR-CLIP INTERNAL
|
0.0044(lbs); 0.002
|
| 009. |
0581100313
|
[1] |
KEY WOODRUFF
|
0.0022(lbs); 0.001
|
