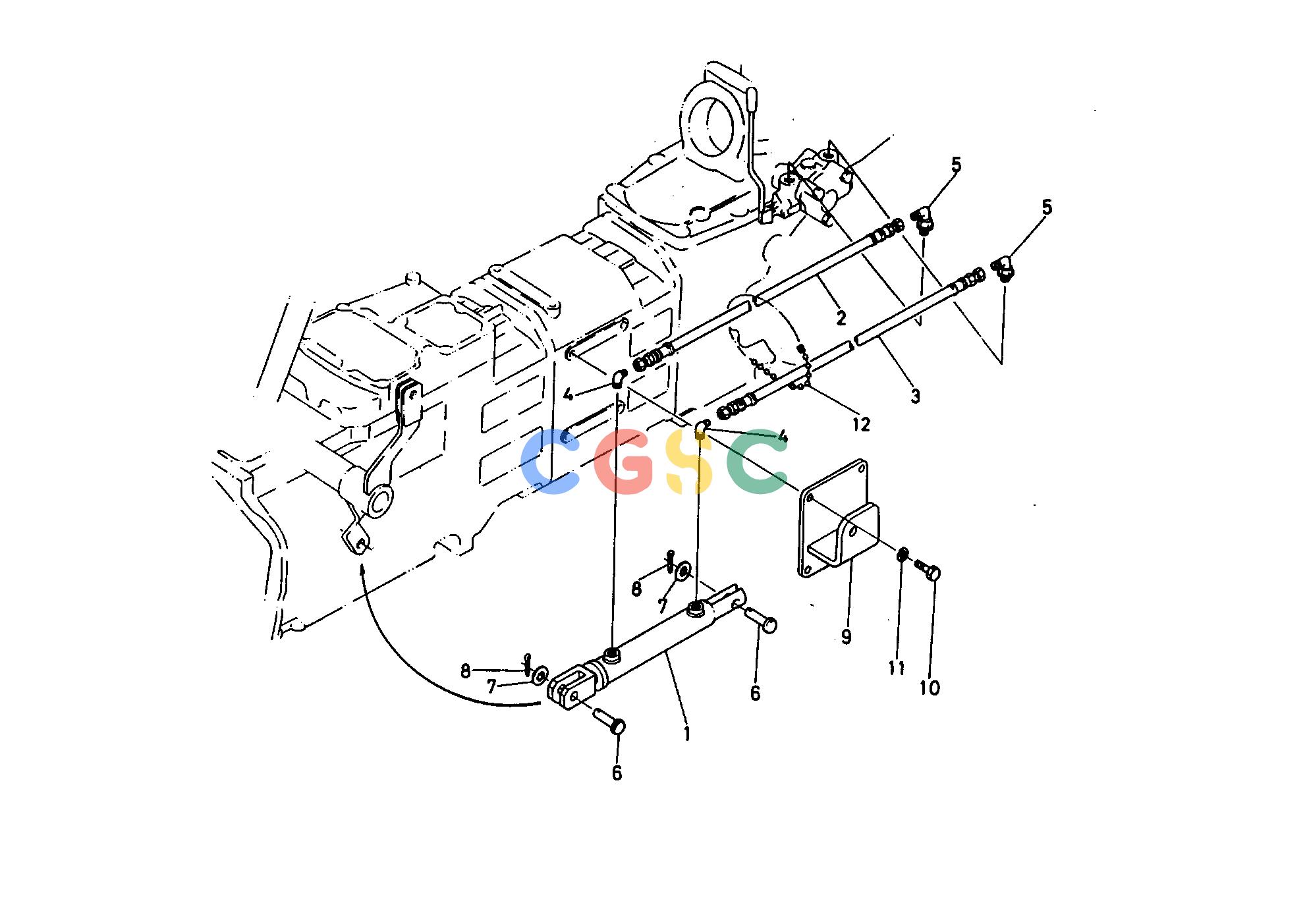

久保田零件查询T06600 MID CYLINDER HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
957 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3521939110
|
[1] |
ASSY CYLINDER MID
|
8.3600(lbs); 3.800
|
| 002. |
3521939120
|
[1] |
HOSE
|
0.9900(lbs); 0.450
|
| 003. |
3521939130
|
[1] |
HOSE
|
0.8580(lbs); 0.390
|
| 004. |
3521939140
|
[2] |
ELBOW
|
0.2200(lbs); 0.100
|
| 005. |
3521939150
|
[2] |
ELBOW
|
0.2200(lbs); 0.100
|
| 006. |
0512252055
|
[2] |
PIN JOINT
|
0.3190(lbs); 0.145
|
| 007. |
0401150200
|
[2] |
WASHER PLAIN
|
0.0330(lbs); 0.015
|
| 008. |
0551150530
|
[2] |
PIN SPLIT
|
0.0132(lbs); 0.006
|
| 009. |
3521929180
|
[1] |
SUPPORT CYLINDER
|
7.0400(lbs); 3.200
|
| 010. |
0117351435
|
[4] |
BOLT
|
0.1232(lbs); 0.056
|
| 011. |
0451250140
|
[4] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 012. |
3435029380
|
[1] |
BAND CORD
|
0.0022(lbs); 0.001
|
