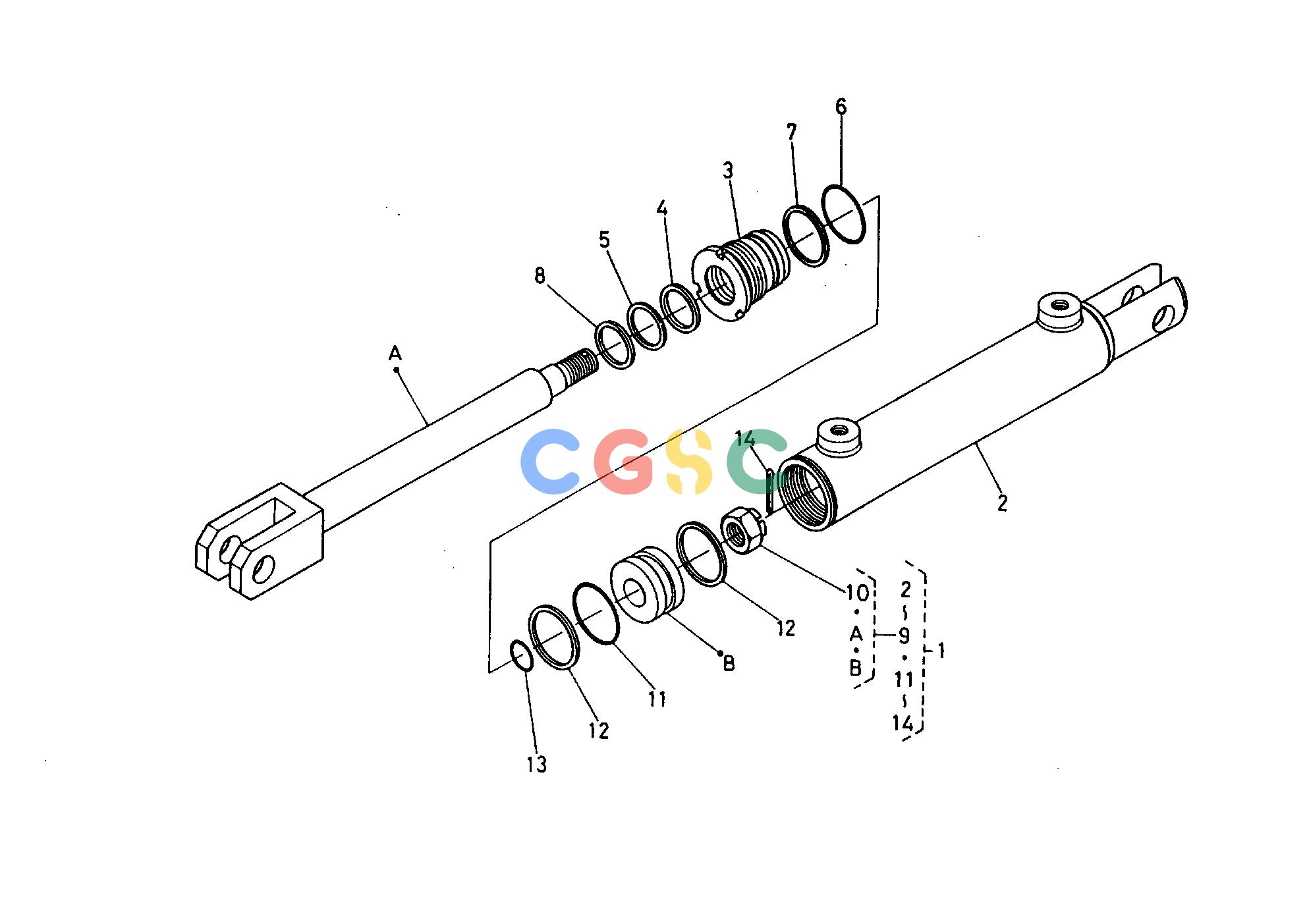

久保田零件查询T06700 MID CYLINDER [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
124 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3521939110
|
[1] |
ASSY CYLINDER MID
|
8.3600(lbs); 3.800
|
| 002. |
3521939300
|
[1] |
ASSY TUBE CYLINDER
|
3.9600(lbs); 1.800
|
| 003. |
3521939310
|
[1] |
CYLINDER HEAD
|
0.5720(lbs); 0.260
|
| 004. |
3521939320
|
[1] |
SEAL PENTA
|
0.0044(lbs); 0.002
|
| 005. |
3521939330
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 006. |
0481150350
|
[1] |
RING
|
0.0044(lbs); 0.002
|
| 007. |
3521939340
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 008. |
3521939350
|
[1] |
SEAL DUST
|
0.0044(lbs); 0.002
|
| 009. |
3521939360
|
[1] |
ASSY PISTON
|
3.4320(lbs); 1.560
|
| 010. |
0225450160
|
[1] |
NUT
|
0.0880(lbs); 0.040
|
| 011. |
0481100340
|
[1] |
RING
|
0.0044(lbs); 0.002
|
| 012. |
3521939390
|
[2] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 013. |
0481100180
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 014. |
0551150430
|
[1] |
PIN SPLIT
|
0.0088(lbs); 0.004
|
