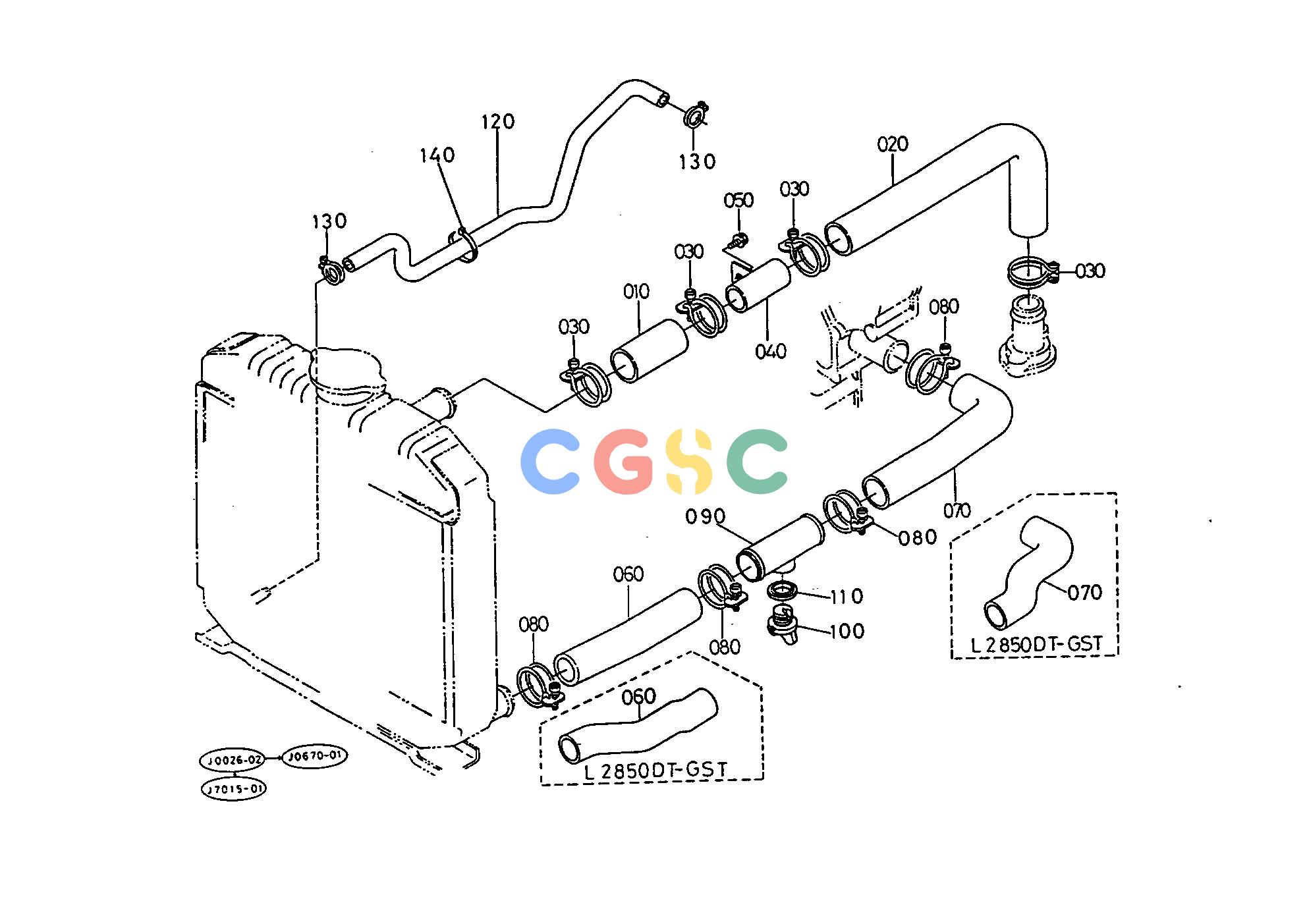

久保田零件查询T05400 WATER PIPE COOLING WATER SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
700 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135118010
|
[1] |
PIPE WATER
|
0.1320(lbs); 0.060
|
| 020. |
3135118020
|
[1] |
PIPE WATER
|
0.6270(lbs); 0.285
|
| 030. |
1510872870
|
[4] |
BAND
|
0.0594(lbs); 0.027
|
| 040. |
3135118030
|
[1] |
JOINT WATER PIPE
|
0.3300(lbs); 0.150
|
| 050. |
0175450816
|
[1] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
| 060. |
3135118050
|
[1] |
PIPE WATER
|
0.2970(lbs); 0.135
|
| 070. |
3135118060
|
[1] |
PIPE WATER
|
0.3740(lbs); 0.170
|
| 080. |
1510872870
|
[4] |
BAND
|
0.0594(lbs); 0.027
|
| 090. |
3243018070
|
[1] |
BASE DRAIN COCK
|
0.3630(lbs); 0.165
|
| 100. |
3134961420
|
[1] |
PLUG DRAIN
|
0.0220(lbs); 0.010
|
| 110. |
0471701700
|
[1] |
WASHER WITH RUBBER
|
0.0066(lbs); 0.003
|
| 120. |
3135118570
|
[1] |
HOSE DRAIN
|
0.3520(lbs); 0.160
|
| 130. |
6817163630
|
[2] |
BAND HOSE
|
0.0286(lbs); 0.013
|
| 140. |
5358164150
|
[1] |
BAND CORD
|
0.0044(lbs); 0.002
|
