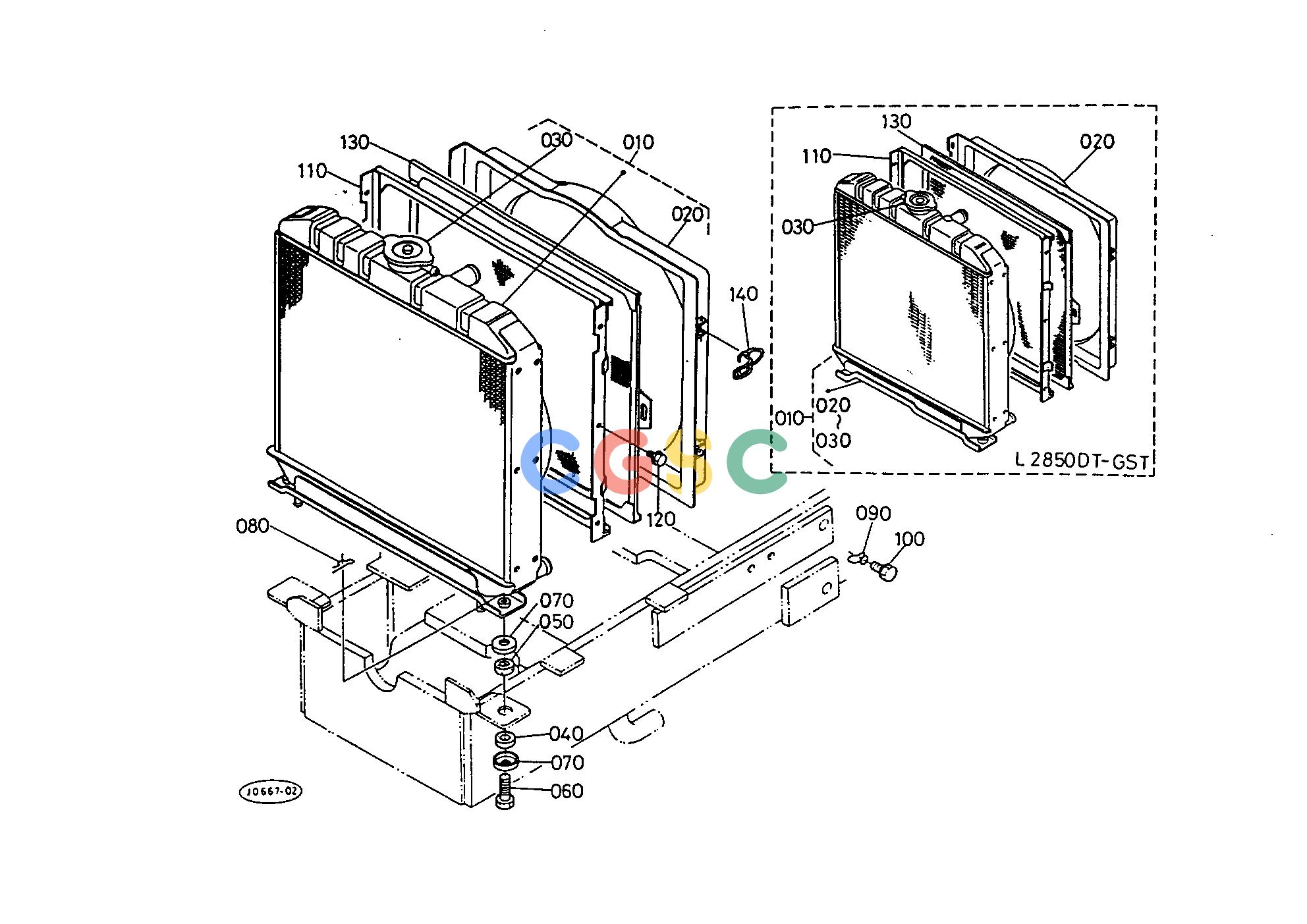

久保田零件查询T05500 RADIATOR COOLING WATER SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
824 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1733172060
|
[1] |
ASSY RADIATOR
|
12.7600(lbs); 5.800
|
| 020. |
1733172330
|
[1] |
SHROUD FAN
|
2.9700(lbs); 1.350
|
| 030. |
1527272020
|
[1] |
ASSY CAP
|
0.1562(lbs); 0.071
|
| 040. |
1511172180
|
[2] |
CUSHION
|
0.0330(lbs); 0.015
|
| 050. |
1511172190
|
[2] |
CUSHION
|
0.0352(lbs); 0.016
|
| 060. |
1510872380
|
[2] |
BOLT
|
0.0880(lbs); 0.040
|
| 070. |
1511172200
|
[4] |
WASHER
|
0.0286(lbs); 0.013
|
| 080. |
0551551000
|
[2] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 090. |
3824013370
|
[1] |
CLAMP PIPE
|
0.0110(lbs); 0.005
|
| 100. |
0112350814
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 110. |
3135117715
|
[1] |
GUIDE RADIATOR NET
|
2.3100(lbs); 1.050
|
| 120. |
0175450610
|
[6] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 130. |
3135117720
|
[1] |
NET RADIATOR
|
2.1560(lbs); 0.980
|
| 140. |
3135117740
|
[2] |
CLAMP
|
0.0220(lbs); 0.010
|
