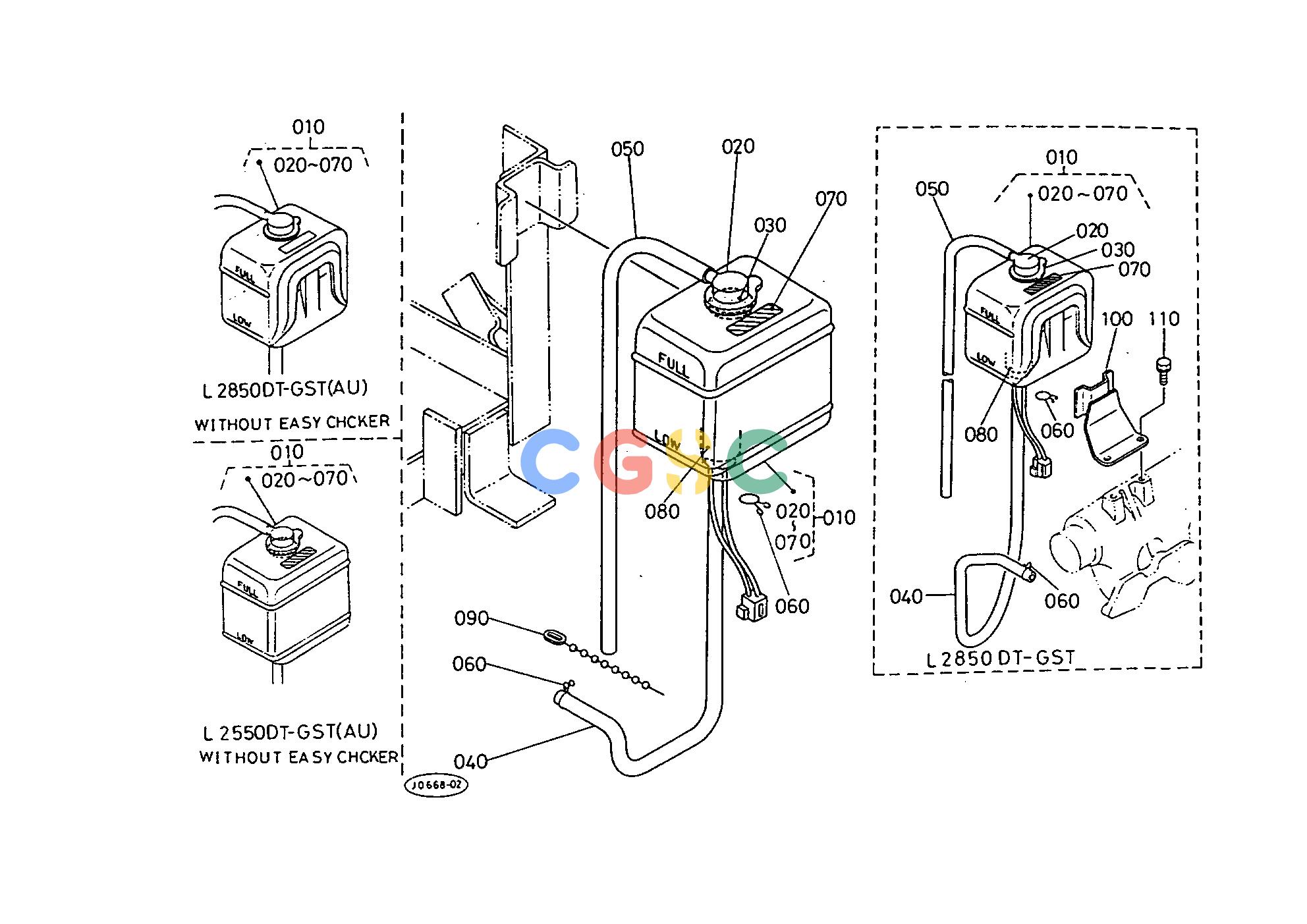

久保田零件查询T05600 RESERVE TANK COOLING WATER SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
979 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1733172400
|
[1] |
ASSY TANK RESERVE
|
1.0780(lbs); 0.490
|
| 010. |
1598872400
|
[1] |
ASSY TANK RESERVE
|
1.0604(lbs); 0.482
|
| 020. |
5491121720
|
[1] |
CAP
|
0.0176(lbs); 0.008
|
| 030. |
5491121730
|
[1] |
GASKET
|
0.0088(lbs); 0.004
|
| 040. |
1547172710
|
[1] |
PIPE WATER OVER FLOW
|
0.1760(lbs); 0.080
|
| 050. |
1558972440
|
[1] |
PIPE WATER OVER FLOW
|
0.1100(lbs); 0.050
|
| 050. |
6827142380
|
[1] |
PIPE WATER OVER FLOW
|
0.2640(lbs); 0.120
|
| 050. |
6827142390
|
[1] |
PIPE WATER OVER FLOW
|
0.0660(lbs); 0.030
|
| 060. |
1550172470
|
[2] |
CLIP PIPE
|
0.0110(lbs); 0.005
|
| 070. |
1550188210
|
[1] |
LABEL CAUTION
|
0.0110(lbs); 0.005
|
| 080. |
1552172992
|
[1] |
SWITCH WATER LEVEL
|
0.1320(lbs); 0.060
|
| 090. |
3435029380
|
[1] |
BAND CORD
|
0.0022(lbs); 0.001
|
