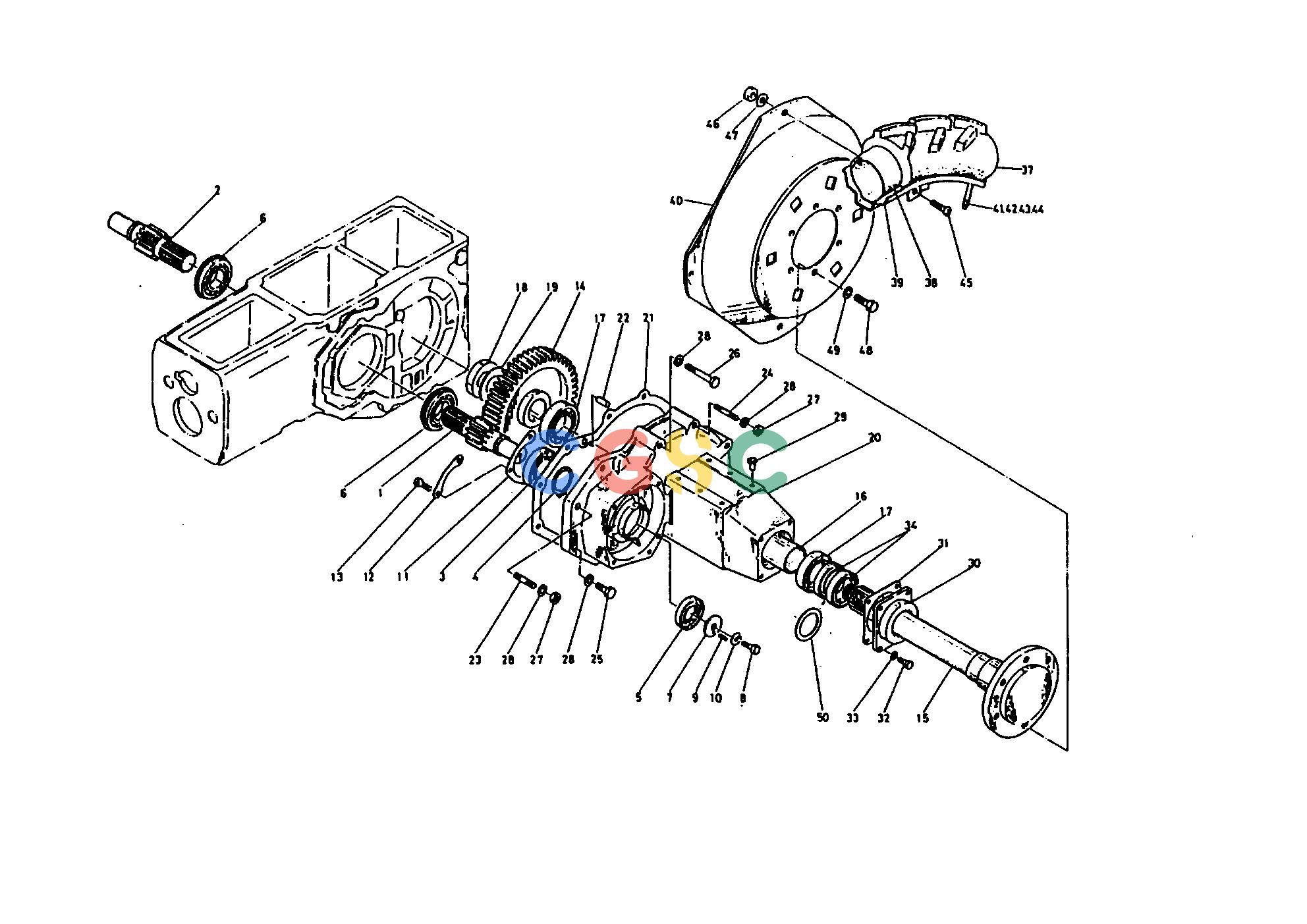

久保田零件查询210000 REAR WHEEL REAR AXLE AND REAR WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
970 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3224026713
|
[1] |
SHAFT DIFF.GEAR LH
|
0.0000(lbs); 0.000
|
| 002. |
3224026723
|
[1] |
SHAFT DIFF.GEAR RH
|
0.0000(lbs); 0.000
|
| 003. |
0810106209
|
[2] |
BEARING BALL
|
0.9240(lbs); 0.420
|
| 004. |
0461210450
|
[2] |
CIR-CLIP EXTERNAL
|
0.0000(lbs); 0.000
|
| 005. |
0950456812
|
[2] |
SEAL OIL
|
0.0836(lbs); 0.038
|
| 006. |
0815106208
|
[2] |
BEARING BALL
|
0.8206(lbs); 0.373
|
| 007. |
3224026770
|
[2] |
WASHER
|
0.1056(lbs); 0.048
|
| 008. |
0117351020
|
[2] |
BOLT
|
0.0374(lbs); 0.017
|
| 009. |
0501200310
|
[2] |
PIN STRAIGHT
|
0.0022(lbs); 0.001
|
| 010. |
3212022370
|
[2] |
WASHER CLAW
|
0.0000(lbs); 0.000
|
| 011. |
3224026780
|
[2] |
RETAINER BEARING
|
0.1386(lbs); 0.063
|
| 012. |
3224026590
|
[4] |
STOPPER
|
0.0176(lbs); 0.008
|
| 013. |
0115051018
|
[6] |
BOLT
|
0.0000(lbs); 0.000
|
| 014. |
3224026830
|
[2] |
GEAR SPUR
|
18.4800(lbs); 8.400
|
| 015. |
3224027115
|
[2] |
AXLE REAR
|
0.0000(lbs); 0.000
|
| 016. |
3224027140
|
[2] |
COLLAR
|
3.7400(lbs); 1.700
|
| 017. |
0810106210
|
[4] |
BEARING BALL
|
0.9900(lbs); 0.450
|
| 018. |
3224027282
|
[2] |
NUT
|
0.0000(lbs); 0.000
|
| 019. |
3224027290
|
[2] |
WASHER
|
0.0616(lbs); 0.028
|
| 020. |
3224027313
|
[2] |
CASE AXLE
|
0.0000(lbs); 0.000
|
| 021. |
3224027332
|
[2] |
GASKET AXLE CASE
|
0.0000(lbs); 0.000
|
| 022. |
0501201016
|
[4] |
PIN STRAIGHT
|
0.0220(lbs); 0.010
|
| 023. |
0157051230
|
[2] |
STUD
|
0.0770(lbs); 0.035
|
| 024. |
0157051280
|
[2] |
STUD
|
0.1782(lbs); 0.081
|
| 025. |
0117351235
|
[6] |
BOLT
|
0.0880(lbs); 0.040
|
| 026. |
0117351285
|
[10] |
BOLT
|
0.1848(lbs); 0.084
|
| 027. |
0217350120
|
[4] |
NUT
|
0.0000(lbs); 0.000
|
| 028. |
0451210120
|
[20] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 029. |
3122014293
|
[16] |
PLUG
|
0.0000(lbs); 0.000
|
| 030. |
3224027510
|
[2] |
COVER AXLE CASE
|
1.6060(lbs); 0.730
|
| 031. |
3224027522
|
[2] |
GASKET
|
0.0000(lbs); 0.000
|
| 032. |
0115350822
|
[8] |
BOLT
|
0.0242(lbs); 0.011
|
| 033. |
0451210080
|
[8] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 034. |
0950062809
|
[4] |
SEAL OIL
|
0.0660(lbs); 0.030
|
| 035. |
3224027610
|
[1] |
REAR WHEEL LH
|
0.0000(lbs); 0.000
|
| 036. |
3224027690
|
[1] |
REAR WHEEL RH
|
0.0000(lbs); 0.000
|
| 037. |
3224027622
|
[2] |
TIRE
|
0.0000(lbs); 0.000
|
| 038. |
3224027630
|
[2] |
TUBE
|
8.1400(lbs); 3.700
|
| 039. |
3224027650
|
[2] |
RIM WHEEL REAR
|
0.0000(lbs); 0.000
|
| 040. |
3224027660
|
[2] |
DISK LH
|
32.3400(lbs); 14.700
|
| 040. |
3122027664
|
[2] |
DISK RH
|
0.0000(lbs); 0.000
|
| 041. |
3227027710
|
[2] |
NUT RIM
|
0.0132(lbs); 0.006
|
| 042. |
3227027730
|
[2] |
HOUSING CORE
|
0.0308(lbs); 0.014
|
| 043. |
3227027740
|
[2] |
CORE VALVE
|
0.0000(lbs); 0.000
|
| 044. |
3227027750
|
[2] |
CAP VALVE
|
0.0000(lbs); 0.000
|
| 045. |
3122027684
|
[8] |
BOLT
|
0.0000(lbs); 0.000
|
| 046. |
0217350160
|
[8] |
NUT
|
0.0000(lbs); 0.000
|
| 047. |
0451210500
|
[8] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 048. |
0117351430
|
[12] |
BOLT
|
0.1144(lbs); 0.052
|
| 049. |
0451210140
|
[12] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 050. |
3224027550
|
[2] |
COLLAR
|
0.0264(lbs); 0.012
|
