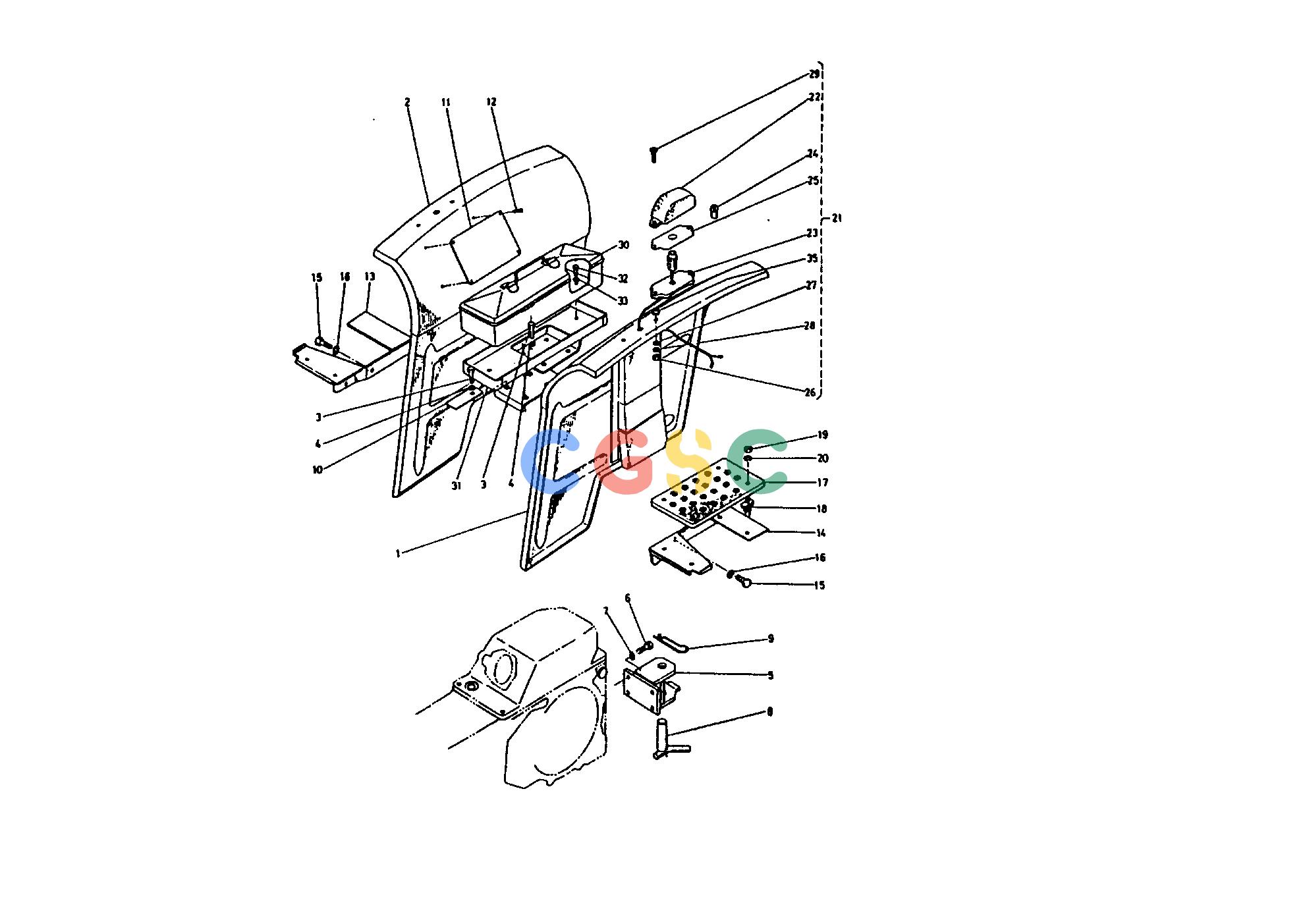

久保田零件查询220000 REAR WHEEL COVER REAR AXLE AND REAR WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
741 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3224029115
|
[1] |
FENDER LH
|
0.0000(lbs); 0.000
|
| 002. |
3224029125
|
[1] |
FENDER RH
|
0.0000(lbs); 0.000
|
| 003. |
0117051425
|
[8] |
BOLT
|
0.0990(lbs); 0.045
|
| 004. |
0451210140
|
[8] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 005. |
3224029713
|
[1] |
HITCH
|
0.0000(lbs); 0.000
|
| 006. |
0117351435
|
[4] |
BOLT
|
0.1232(lbs); 0.056
|
| 007. |
0451210140
|
[4] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 008. |
3115029722
|
[1] |
PIN HITCH
|
0.0000(lbs); 0.000
|
| 009. |
3220029730
|
[1] |
PIN SNAP
|
0.0000(lbs); 0.000
|
| 010. |
3122034470
|
[2] |
CLAMP CORD
|
0.0088(lbs); 0.004
|
| 011. |
3224024970
|
[1] |
MARK PTO CHANGE
|
0.0022(lbs); 0.001
|
| 012. |
0561410205
|
[4] |
RIVET
|
0.0022(lbs); 0.001
|
| 013. |
3224029914
|
[1] |
STEP RH
|
4.8400(lbs); 2.200
|
| 014. |
3226029920
|
[1] |
STEP LH
|
0.0000(lbs); 0.000
|
| 015. |
0117051025
|
[4] |
BOLT
|
0.0000(lbs); 0.000
|
| 016. |
0451210100
|
[4] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 017. |
3224029940
|
[2] |
PLATE STEP
|
2.0900(lbs); 0.950
|
| 018. |
3216029962
|
[8] |
CUSHION
|
0.0000(lbs); 0.000
|
| 019. |
0201250060
|
[8] |
NUT
|
0.0044(lbs); 0.002
|
| 020. |
0401450060
|
[8] |
WASHER FLAT
|
0.0022(lbs); 0.001
|
| 021. |
3224034202
|
[2] |
ASS'Y LAMP FLASHER
|
0.0000(lbs); 0.000
|
| 022. |
3224034122
|
[2] |
LENS LAMP
|
0.0000(lbs); 0.000
|
| 023. |
3224034222
|
[2] |
GASKET
|
0.0000(lbs); 0.000
|
| 024. |
3215034140
|
[2] |
LAMP
|
0.0132(lbs); 0.006
|
| 025. |
3224034272
|
[2] |
SOCKET COMPLETE
|
0.0000(lbs); 0.000
|
| 026. |
0201350060
|
[4] |
NUT
|
0.0000(lbs); 0.000
|
| 027. |
0401250060
|
[4] |
WAHSER FLAT
|
0.0022(lbs); 0.001
|
| 028. |
0451210060
|
[4] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 029. |
0301620625
|
[4] |
SCREW CSK-HD
|
0.0000(lbs); 0.000
|
| 030. |
3224018510
|
[1] |
BOX TOOLS
|
2.8160(lbs); 1.280
|
| 031. |
3224018564
|
[1] |
SUPPORT TOOLS BOX
|
0.0000(lbs); 0.000
|
| 032. |
0115050816
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 033. |
0451210080
|
[1] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 034. |
3215029180
|
[2] |
CAP
|
0.0044(lbs); 0.002
|
| 035. |
3224034290
|
[2] |
RING
|
0.0000(lbs); 0.000
|
