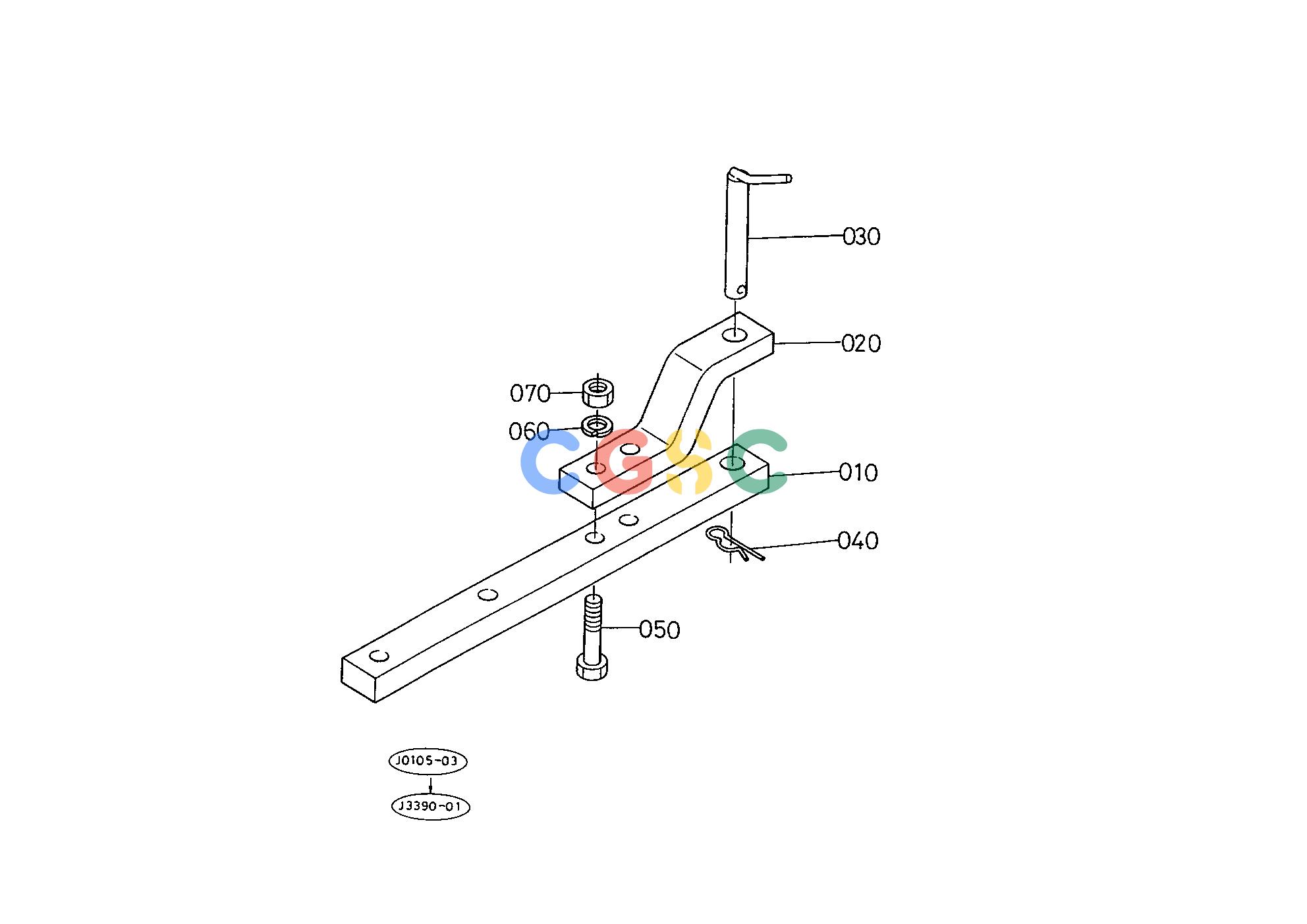

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 3508029710 | [1] | DRAWBAR | 15.4000(lbs); 7.000 |
| 020. | 3508029720 | [1] | HITCH DRAWBAR | 6.0500(lbs); 2.750 |
| 030. | 9953378250 | [1] | PIN | 1.3200(lbs); 0.600 |
| 040. | 7051516330 | [1] | PIN SPRING | 0.0660(lbs); 0.030 |
| 050. | 0117351680 | [2] | BOLT | 0.3080(lbs); 0.140 |
| 060. | 0451250160 | [2] | WASHER SPRING | 0.0220(lbs); 0.010 |
| 070. | 0217450160 | [2] | NUT | 0.0484(lbs); 0.022 |
