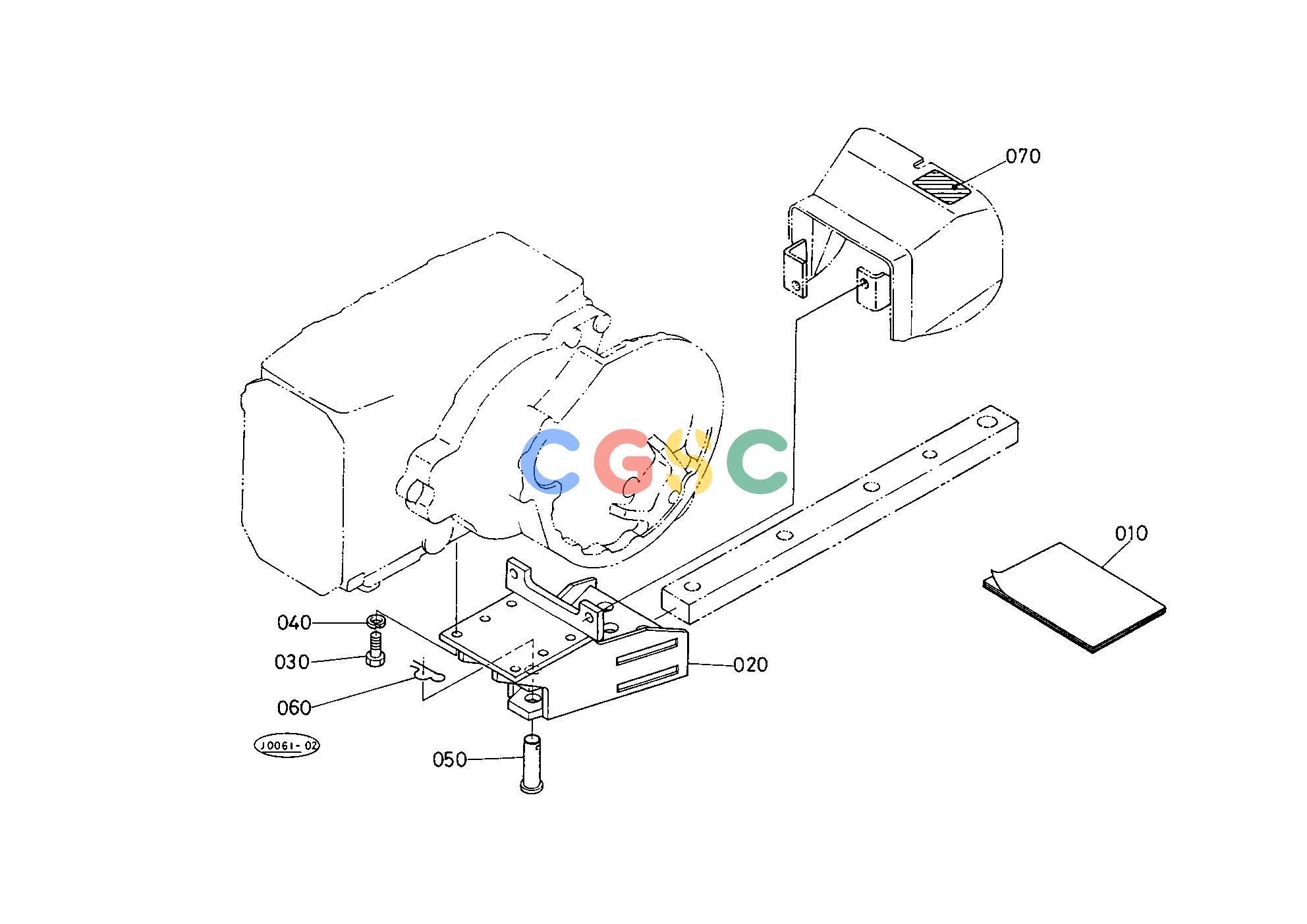

久保田零件查询T11803 SWINGING DRAWBAR [OPTION] HITCH AND DRAWBAREPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
223 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3243098510
|
[1] |
MANUAL INSTRUCTION
|
0.0220(lbs); 0.010
|
| 020. |
3508029730
|
[1] |
FRAME DRAWBAR
|
0.0000(lbs); 0.000
|
| 030. |
0117351430
|
[6] |
BOLT
|
0.1144(lbs); 0.052
|
| 040. |
0451250140
|
[6] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 050. |
0511252070
|
[3] |
PIN JOINT
|
0.4092(lbs); 0.186
|
| 060. |
0551551600
|
[3] |
PIN SNAP
|
0.0154(lbs); 0.007
|
| 070. |
3526025340
|
[1] |
LABEL PTO CAUTION
|
0.0110(lbs); 0.005
|
