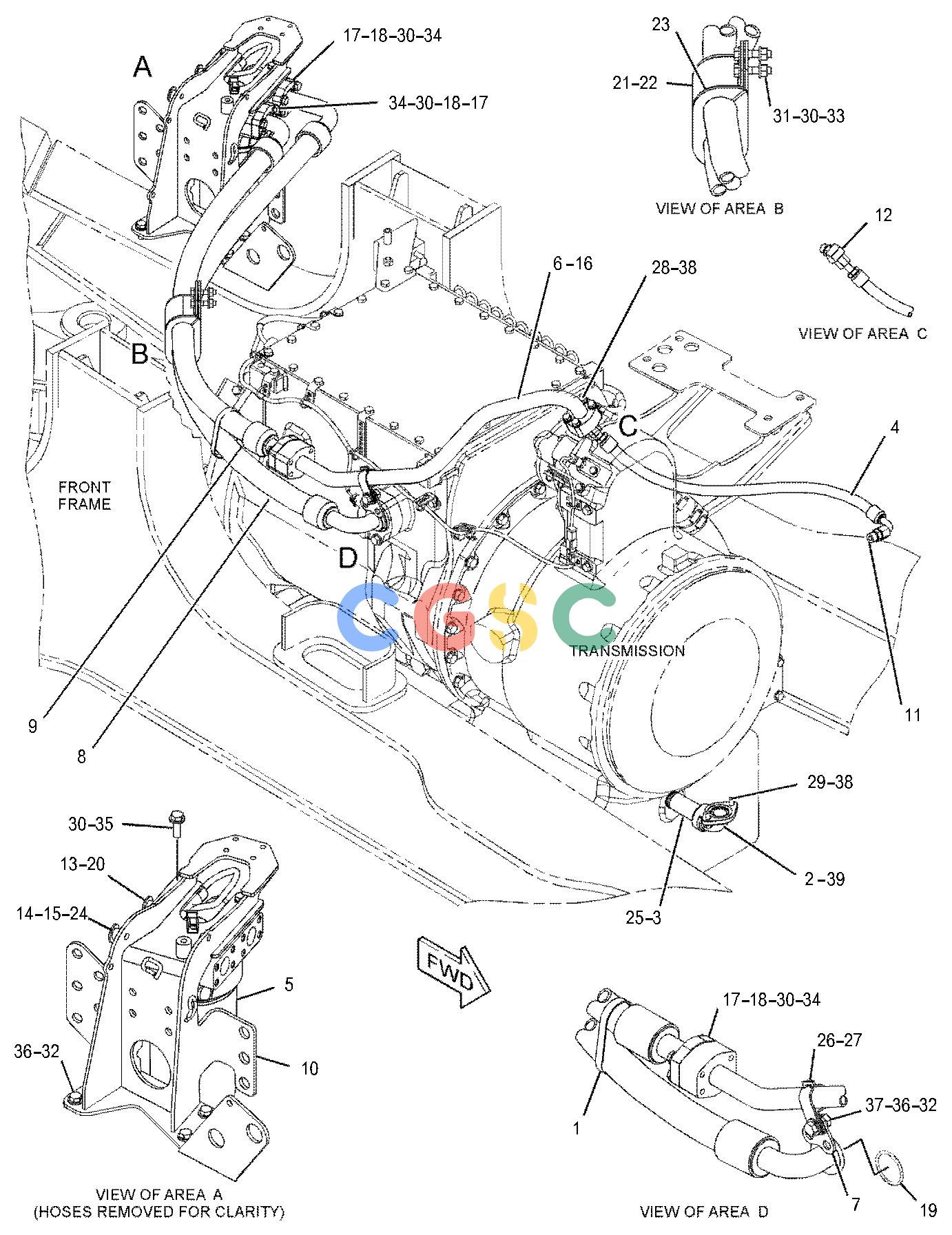

卡特零件查询（735B） 352-9189: LINES GP-TRANSMISSION OIL
广数供应链运营团队, 16 02月, 2025，浏览：
340 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0456 | [1] | STRAP | |
| 2. | 8S-9009 | [1] | ELBOW | |
| 3. | 141-4007 | [1] | SLEEVE | |
| 4. | 191-6583I | [1] | HOSE AS | |
| 5. | 346-5571Y | [1] | FILTER GP-OIL(HYDRAULIC, TRANSMISSION)(TRANSMISSION) | |
| 6. | 352-3236 | [1] | TUBE AS | |
| 7. | 352-3238 | [1] | BRACKET | |
| 8. | I | [1] | HOSE AS |
| 9. | I | [1] | HOSE AS |
| 10. | 353-3852 | [1] | BRACKET AS | |
| | 7T-1099 | [2] | LINK | |
| | 8R-2033 | [1] | BOSS | |
| 11. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 12. | 148-8354 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9002 | [1] | ELBOW | |
| 13. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 14. | 164-5590 | [1] | VALVE AS-FLUID SAMPLING(TRANSMISSION OIL) | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 8C-3446 | [1] | VALVE-SAMPLING(TRANSMISSION OIL) | |
| 15. | 169-7397 | [1] | ADAPTER AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 3P-1932 | [1] | ADAPTER | |
| 16. | 1P-3704 | [1] | SEAL-RECTANGULAR | |
| 17. | 1P-4578 | [6] | FLANGE-HALF | |
| 18. | 4J-0522 | [3] | SEAL-O-RING | |
| 19. | 4J-0524 | [1] | SEAL-O-RING | |
| 20. | 6V-0852 | [1] | CAP-DUST(TRANSMISSION OIL) | |
| 21. | 6V-1575 | [1] | CLIP(SLOT) | |
| 22. | 6V-1576 | [1] | CLIP(TAB) | |
| 23. | 6V-1877 | [1] | GROMMET | |
| 24. | 8C-3447 | [1] | CAP-DUST | |
| 25. | 8M-4433 | [2] | SEAL-O-RING | |
| 26. | 8S-0023 | [1] | CLIP(SLOT) | |
| 27. | 8S-0024 | [1] | CLIP(TAB) | |
| 28. | 8T-2501 | [4] | BOLT(3/8-16X2-IN) | |
| 29. | 8T-2502 | [2] | BOLT(3/8-16X1.125-IN) | |
| 30. | 8T-4121 | [20] | WASHER-HARD(11X21X2.5-MM THK) | |
| 31. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 32. | 8T-4139M | [5] | BOLT(M12X1.75X30-MM) | |
| 33. | 8T-4182M | [2] | BOLT(M10X1.5X45-MM) | |
| 34. | 8T-4186M | [12] | BOLT(M10X1.5X40-MM) | |
| 35. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 36. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 37. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 38. | 8T-4896 | [6] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 39. | 9L-2662 | [1] | GASKET | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
