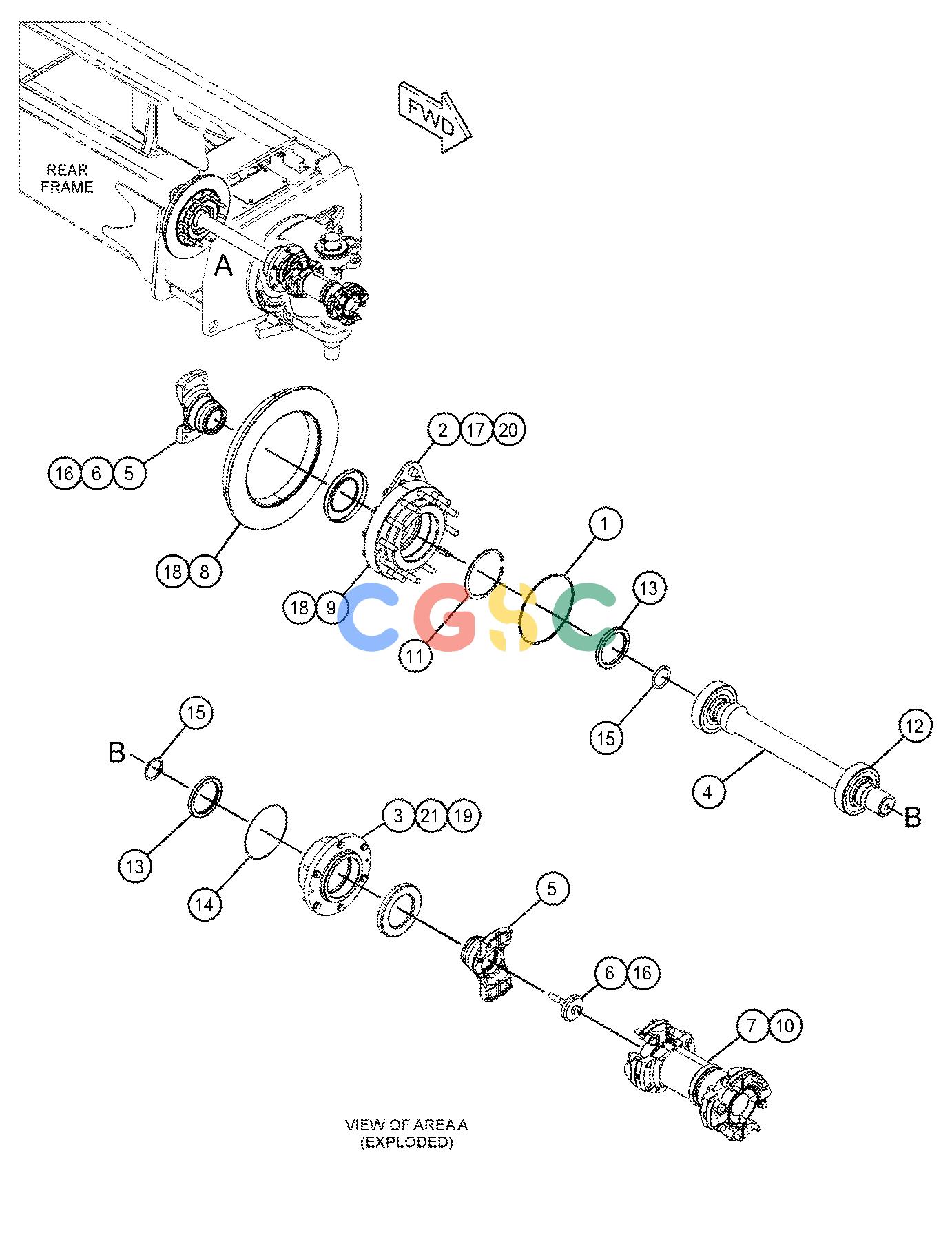

卡特零件查询（735B） 152-7027: SHAFT GP-HITCH DRIVE
广数供应链运营团队, 16 02月, 2025，浏览：
603 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 095-1689 | [1] | SEAL-O-RING | |
| 2. | 146-2985 | [1] | PLATE AS-LOCK | |
| 3. | 159-1074 | [1] | CARRIER | |
| 4. | 159-1075 | [1] | SHAFT | |
| 5. | 177-0841 | [2] | YOKE AS | |
| | | | (EACH INCLUDES) |
| | 105-5088 | [1] | GUARD | |
| 6. | 184-4223 | [2] | RETAINER | |
| 7. | 397-8054 | [1] | SLIP JOINT GP(HITCH DRIVE) | |
| | 0S-1604 | [8] | BOLT(1/2-20X2.5-IN) | |
| | 173-0888 | [2] | UNIVERSAL JOINT GP-ROTOR DRIVE | |
| | 397-8039 | [1] | SEAL | |
| 8. | 213-3409C | [1] | FLANGE | |
| 9. | 213-3410C | [1] | CARRIER | |
| 10. | 0S-1604 | [8] | BOLT(1/2-20X2.5-IN) | |
| 11. | 109-0119 | [1] | RING-RETAINING | |
| 12. | 5P-5293 | [2] | BALL BEARING | |
| 13. | 6V-5028 | [2] | SEAL-LIP TYPE | |
| 14. | 6V-7681 | [1] | SEAL-O-RING | |
| 15. | 7D-1195 | [2] | SEAL-O-RING | |
| 16. | 7X-2556M | [2] | BOLT(M16X2X100-MM) | |
| 17. | 8T-0282CM | [3] | BOLT(M16X2X120-MM) | |
| 18. | 8T-0649CM | [9] | BOLT(M16X2X110-MM) | |
| 19. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 20. | 8T-4122 | [12] | WASHER-HARD(17X32X3.5-MM THK) | |
| 21. | 8T-4185M | [6] | BOLT(M10X1.5X50-MM) | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
