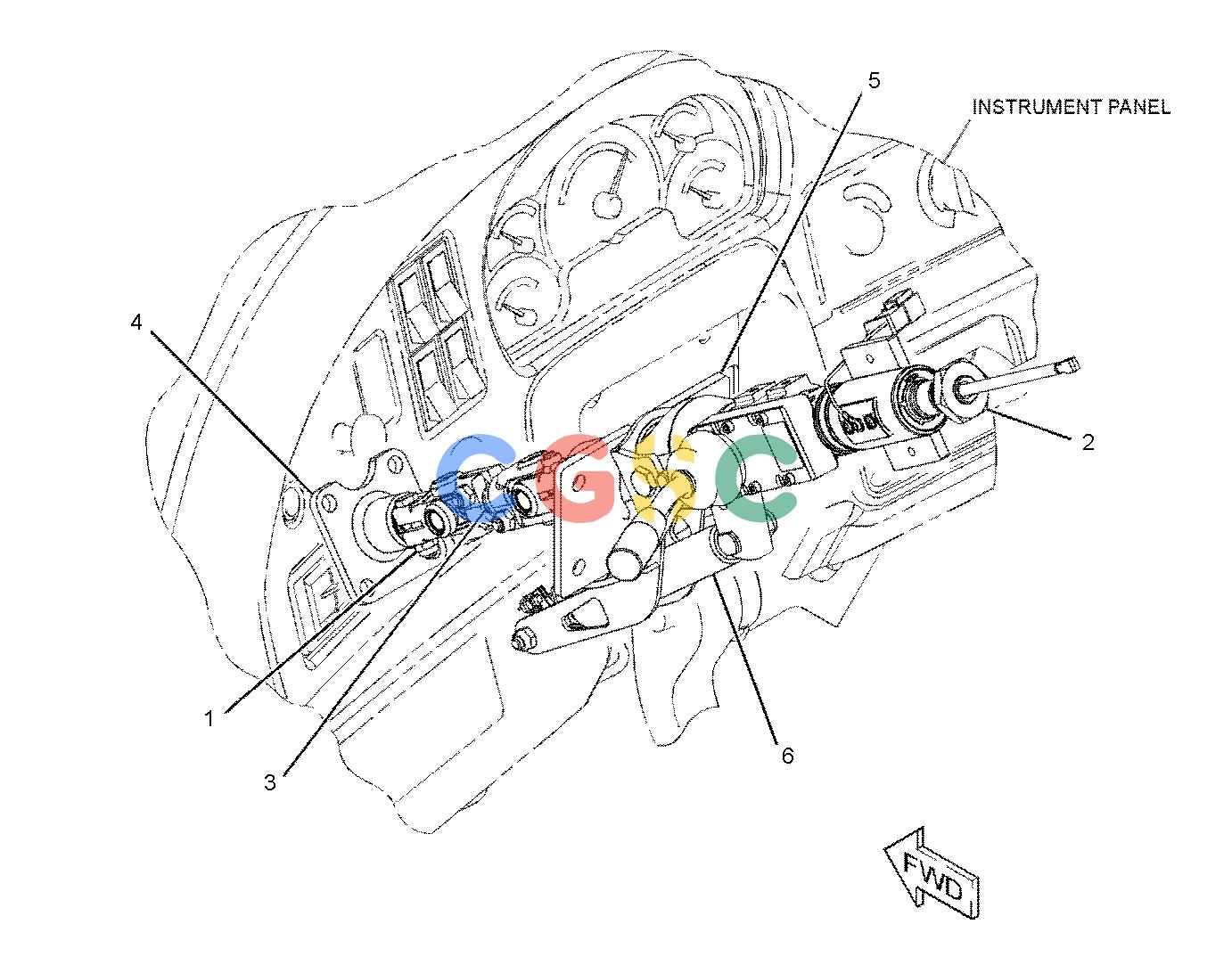

卡特零件查询（735B） 313-2466: CONTROL GP-STEERING
广数供应链运营团队, 16 02月, 2025，浏览：
348 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 162-8551 | [2] | JOINT AS-UNIVERSAL | |
| | | | (EACH INCLUDES) |
| | 099-3649M | [2] | BOLT(M8X1.25X40-MM) | |
| | 131-3540M | [2] | LOCKNUT(M8X1.25-THD) | |
| 2. | 169-3261CM | [1] | NUT(M18X1.5-THD) | |
| 3. | 189-9370C | [1] | SHAFT | |
| 4. | 252-8051 | [1] | ADAPTER AS | |
| 5. | 304-7834CY | [1] | CONTROL GP-STEERING | |
| 6. | 332-7047 | [1] | KIT-GAS STRUT(STEERING COLUMN TILT) | |
| | | | (INCLUDES GAS STRUT, BOLTS, NUTS & SPACERS) |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
