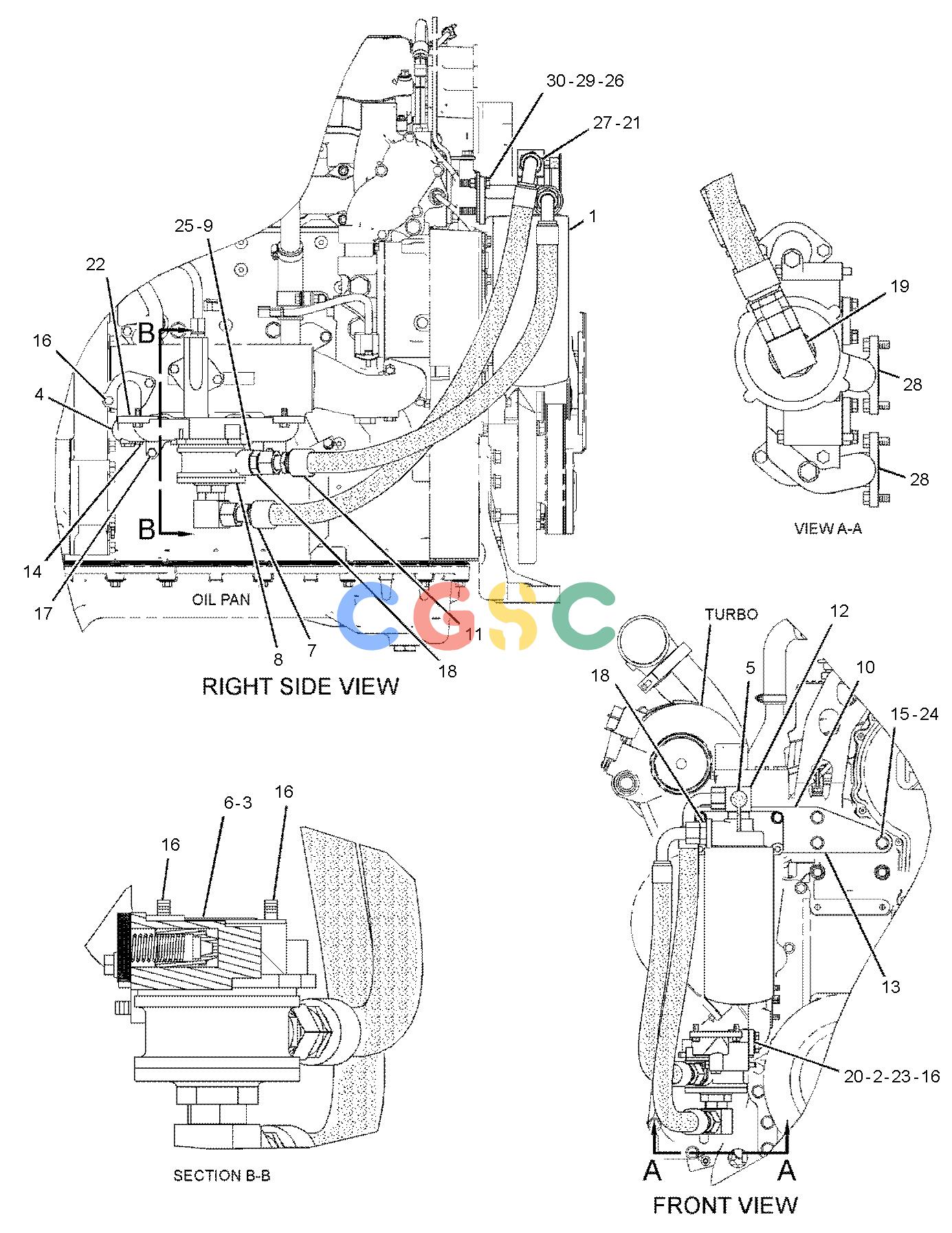

卡特零件查询（740） 227-5372: FILTER & LINES GP-ENGINE OIL
广数供应链运营团队, 16 02月, 2025，浏览：
520 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1R-1808C | [1] | FILTER-ENGINE OIL(ADVANCED EFFICIENCY) | |
| | | | -OR- |
| | 1R-0716 | [1] | FILTER AS-ENGINE OIL(STANDARD EFFICIENCY) | |
| 2. | 2P-3760 | [2] | GASKET | |
| 3. | 4N-8150 | [2] | SPRING | |
| 4. | 7N-3451 | [1] | BASE AS-OIL FILTER | |
| | 2P-4304 | [1] | STUD-HOLLOW | |
| | 5M-6213 | [2] | PLUG-PIPE(1/4-18-THD) | |
| 5. | 8C-3445 | [1] | CAP-DUST(OIL SAMPLING VALVE) | |
| 6. | 1P-1367 | [2] | PLUNGER(RELIEF VALVE)(RELIEF VALVE) | |
| 7. | 9U-0297CI | [1] | HOSE AS | |
| 8. | 102-5828 | [1] | COVER | |
| 9. | 102-5829 | [1] | ADAPTER | |
| 10. | 104-7995 | [1] | BASE GP-OIL FILTER | |
| | 2P-4304 | [1] | STUD-HOLLOW | |
| 11. | 185-6602CI | [1] | HOSE AS | |
| 12. | 199-6417C | [1] | ELBOW AS | |
| 12A. | 5K-9090 | [1] | SEAL-O-RING | |
| 12B. | 7M-8485 | [1] | SEAL-O-RING | |
| 12C. | 186-3705 | [1] | ELBOW | |
| 13. | 272-8103C | [1] | BRACKET | |
| 14. | 0L-2070 | [1] | BOLT(3/8-16X2.25-IN) | |
| 15. | 0S-1585 | [3] | BOLT(1/2-13X1.5-IN) | |
| 16. | 0S-1594 | [11] | BOLT(3/8-16X1-IN) | |
| 17. | 0T-0065 | [2] | BOLT(3/8-16X3.5-IN) | |
| 18. | 148-8335C | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 19. | 148-8357C | [1] | ELBOW AS | |
| | 6V-9008 | [1] | ELBOW | |
| 19A. | 5K-9090 | [1] | SEAL-O-RING | |
| 19B. | 7M-8485 | [1] | SEAL-O-RING | |
| 20. | 2P-3761 | [2] | COVER | |
| 21. | 3J-7354C | [1] | SEAL-O-RING | |
| 22. | 3P-0650 | [2] | SEAL-O-RING | |
| 23. | 5M-2894 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 24. | 5P-8245 | [3] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 25. | 6V-3908 | [2] | SEAL-O-RING | |
| 26. | 6V-5839 | [4] | WASHER(11X21X2.5-MM THK) | |
| 27. | 8C-3446C | [1] | VALVE-SAMPLING(ENGINE OIL) | |
| 28. | 8C-5230 | [2] | SEAL-O-RING | |
| 29. | 8T-4133CM | [2] | NUT(M10X1.5-THD) | |
| 30. | 8T-4195CM | [2] | BOLT(M10X1.5X30-MM) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
