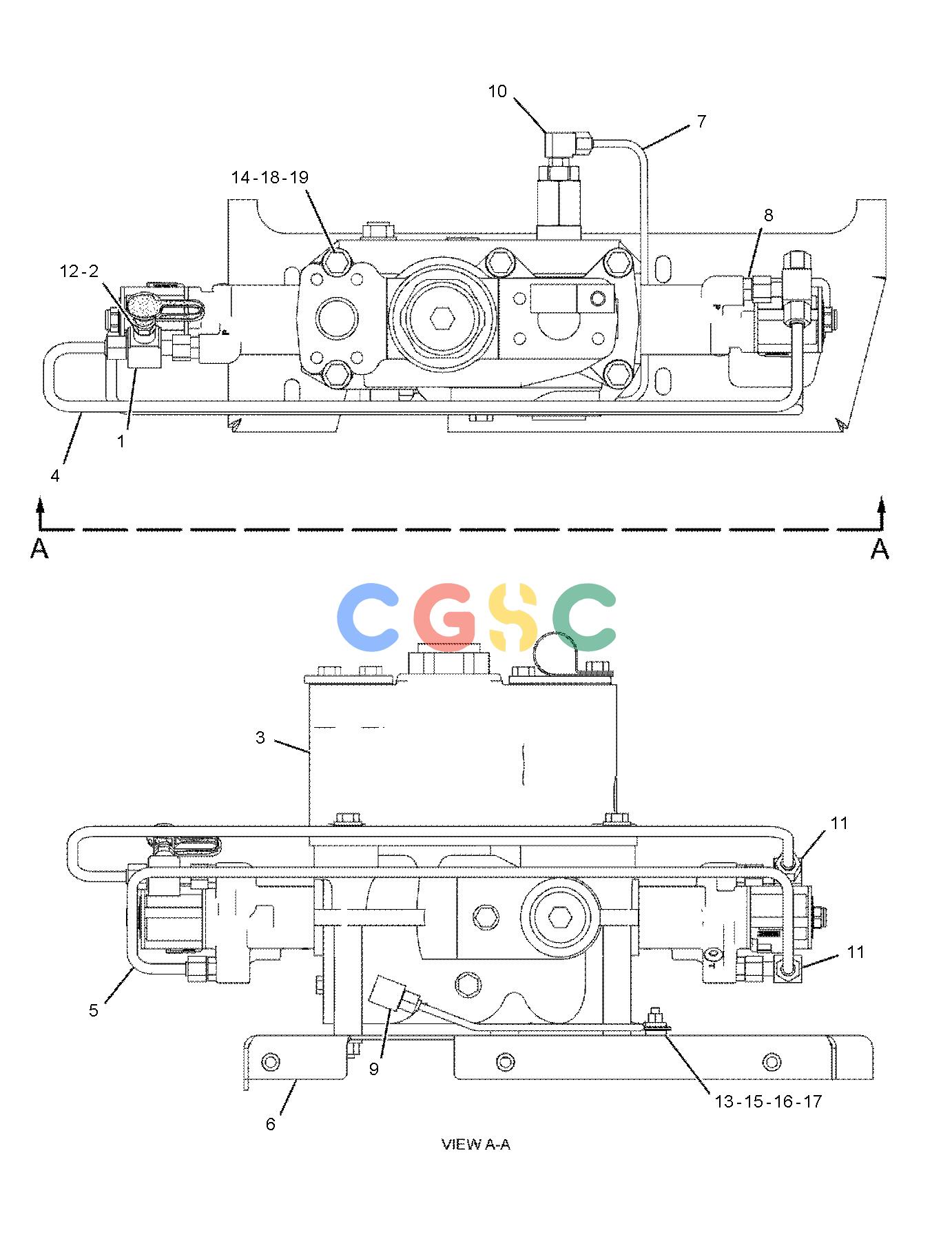

卡特零件查询（740） 152-7120: VALVE & MTG GP-HOIST CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
1024 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 148-8424 | [1] | TEE AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8T-8902 | [1] | ADAPTER-TEE | |
| 2. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 3. | 189-5772Y | [1] | VALVE GP-HOIST CONTROL | |
| 4. | 189-9263 | [1] | TUBE AS | |
| 5. | 217-2573 | [1] | TUBE AS | |
| 6. | 247-8399C | [1] | PLATE AS | |
| | 7T-1099 | [3] | LINK | |
| | 8T-3597M | [5] | NUT-WELD(M12X1.75-THD) | |
| 7. | 247-8401C | [1] | TUBE AS | |
| 8. | 148-8336 | [4] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 9. | 148-8368 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8627 | [1] | ELBOW | |
| 10. | 148-8369 | [1] | ELBOW AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8628 | [1] | ELBOW | |
| 11. | 148-8434 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-9843 | [1] | TEE | |
| 12. | 6V-0852 | [1] | CAP-DUST | |
| 13. | 7X-7729C | [3] | WASHER(11X25X3-MM THK) | |
| 14. | 7X-7960M | [4] | BOLT(M12X1.75X220-MM) | |
| 15. | 8K-5440C | [1] | CLIP | |
| 16. | 8T-4133CM | [1] | NUT(M10X1.5-THD) | |
| 17. | 8T-4195CM | [1] | BOLT(M10X1.5X30-MM) | |
| 18. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 19. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
