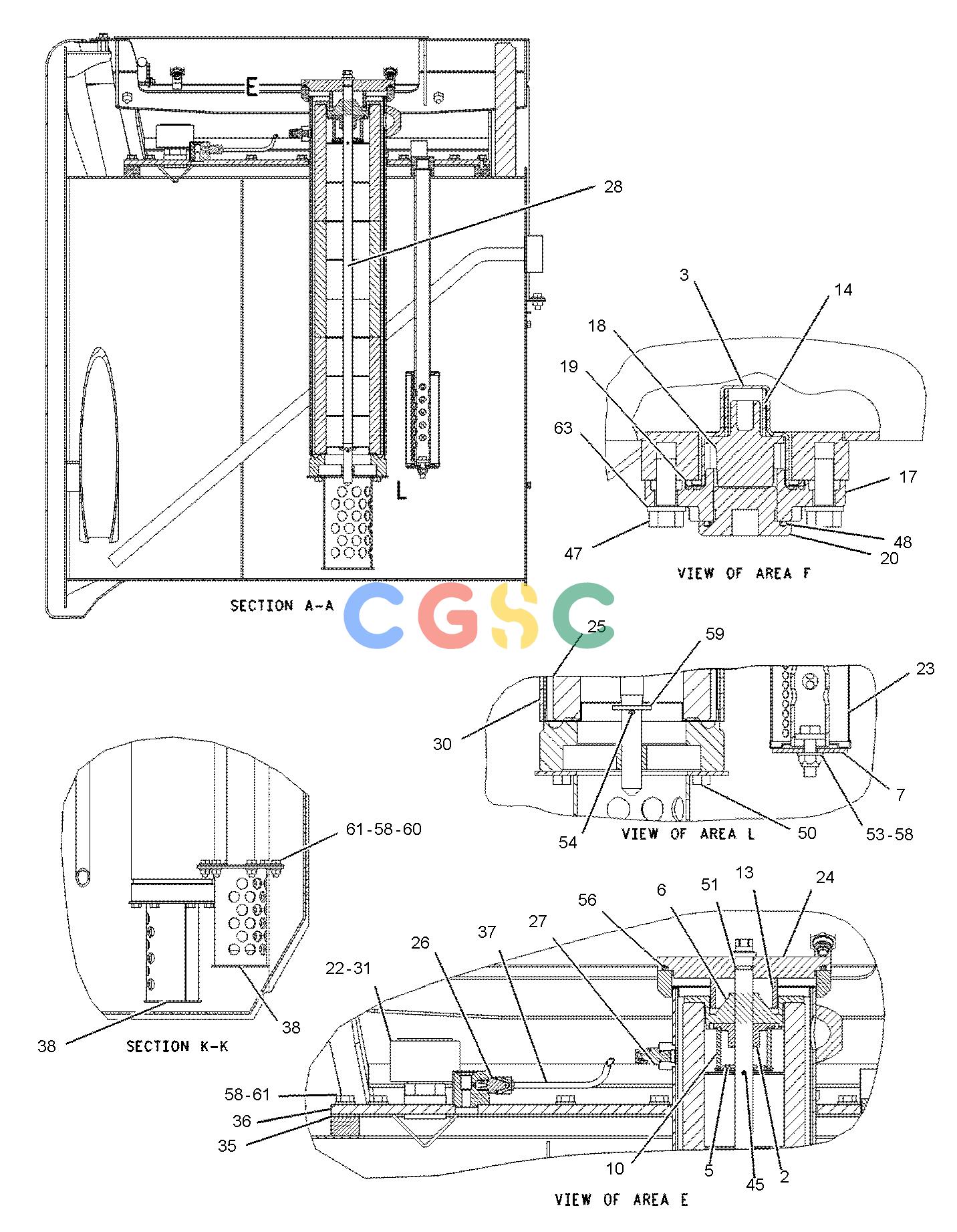

卡特零件查询（740） 162-5242: TANK GP-HYDRAULIC
广数供应链运营团队, 16 02月, 2025，浏览：
893 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1L-5072 | [1] | DOWEL | |
| 2. | 1U-1643 | [1] | VALVE(HYDRAULIC TANK) | |
| 3. | 1U-2827 | [1] | GUIDE-VALVE | |
| 4. | 2D-4202 | [1] | PLATE | |
| 5. | 2J-0917 | [1] | RETAINER | |
| 6. | 4J-1704 | [1] | SEAT-VALVE | |
| 7. | 4T-8698 | [1] | WASHER(12.2X62X3.5-MM THK) | |
| 8. | 5D-1911 | [1] | COVER-HYDRAULIC CAP | |
| 9. | 5D-7927 | [1] | STRAINER AS-OIL(HYDRAULIC TANK FILL) | |
| | 5F-3488 | [1] | END-STRAINER(HYDRAULIC TANK FILL) | |
| 10. | 5J-2926 | [1] | SPRING | |
| 11. | 246-2641 | [1] | PADLOCK GP | |
| | 5P-8500 | [1] | KEY | |
| 12. | 9H-6454 | [1] | GASKET | |
| 13. | 6P-3860 | [1] | SPRING | |
| 14. | 7B-3039 | [1] | SPRING | |
| 15. | 7H-1447 | [1] | CAP-FILLER(HYDRAULIC TANK) | |
| 16. | 8C-3451 | [1] | CAP-DUST(HYDRAULIC OIL) | |
| 17. | 8J-8782 | [1] | BODY-DRAIN VALVE | |
| 18. | 8J-8783 | [1] | VALVE-DRAIN(HYDRAULIC TANK DRAIN) | |
| 19. | 8T-3298 | [1] | SEAL-RECTANGULAR | |
| 20. | 9J-7031 | [1] | PLUG-DRAIN(HYDRAULIC TANK) | |
| 21. | 9M-7394 | [1] | LEVER | |
| 22. | 9R-3176 | [1] | SEAL-O-RING | |
| 23. | 119-4885 | [1] | SCREEN | |
| 24. | 129-4131 | [1] | COVER-FILTER | |
| 25. | 132-8876 | [3] | FILTER ELEMENT AS-OIL(ULTRA HIGH EFFICIENCY)(HYDRAULIC) | |
| 26. | 148-8316 | [1] | CONNECTOR AS | |
| | 6V-8647 | [1] | CONNECTOR | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 27. | 148-8325 | [1] | CONNECTOR AS | |
| | 6V-8641 | [1] | CONNECTOR | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 28. | 149-2744 | [1] | BOLT-FILTER(5/8-11X31.3-IN) | |
| 29. | 150-5939 | [2] | ADAPTER | |
| 30. | 150-8457 | [1] | SCREEN AS(HYDRAULIC TANK) | |
| 31. | 157-7911 | [1] | BREATHER(HYDRAULIC TANK) | |
| 32. | 162-5129 | [1] | TANK AS-HYDRAULIC | |
| 33. | 164-5590 | [1] | VALVE AS-FLUID SAMPLING(HYDRAULIC OIL) | |
| | 8C-3446 | [1] | VALVE-SAMPLING(HYDRAULIC OIL) | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| 34. | 187-5168 | [1] | COVER | |
| 35. | 188-7298 | [1] | GASKET | |
| 36. | 188-7300 | [1] | COVER AS | |
| 37. | 189-9047 | [1] | TUBE AS | |
| 38. | 191-7740 | [2] | TUBE AS | |
| 39. | 192-7620 | [1] | GAUGE-SIGHT(HYDRAULIC OIL) | |
| 40. | 193-0247 | [1] | PLATE(OIL LEVEL) | |
| 41. | 199-7649 | [1] | INSERT | |
| 42. | 200-0148Y | [1] | GUARD GP-HYDRAULIC TANK | |
| 43. | 203-5815C | [1] | PLATE AS(LH) | |
| 44. | 207-0845 | [4] | BRACKET | |
| 45. | 1H-1200 | [1] | PIN-SPRING | |
| 46. | 2J-7761 | [1] | RING-RETAINING | |
| 47. | 4L-6454 | [2] | BOLT(3/8-16X1-IN) | |
| 48. | 5M-2057 | [1] | SEAL-O-RING | |
| 49. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 50. | 5P-8167 | [6] | BOLT(3/8-16X0.625-IN) | |
| 51. | 6F-4855 | [1] | SEAL-O-RING | |
| 52. | 6H-9361 | [1] | RING-RETAINING | |
| 53. | 6V-7744M | [1] | LOCKNUT(M10X1.5-THD) | |
| 54. | 7J-5925 | [1] | PIN-COTTER | |
| 55. | 7X-0578 | [12] | WASHER-HARD(10.2X32X2.5-MM THK) | |
| 56. | 8J-1665 | [1] | SEAL-O-RING | |
| 57. | 8T-2275 | [1] | BALL | |
| 58. | 8T-4121 | [43] | WASHER-HARD(11X21X2.5-MM THK) | |
| 59. | 8T-4122 | [1] | WASHER-HARD(17X32X3.5-MM THK) | |
| 60. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 61. | 8T-4136M | [48] | BOLT(M10X1.5X25-MM) | |
| 62. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| 63. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 64. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
