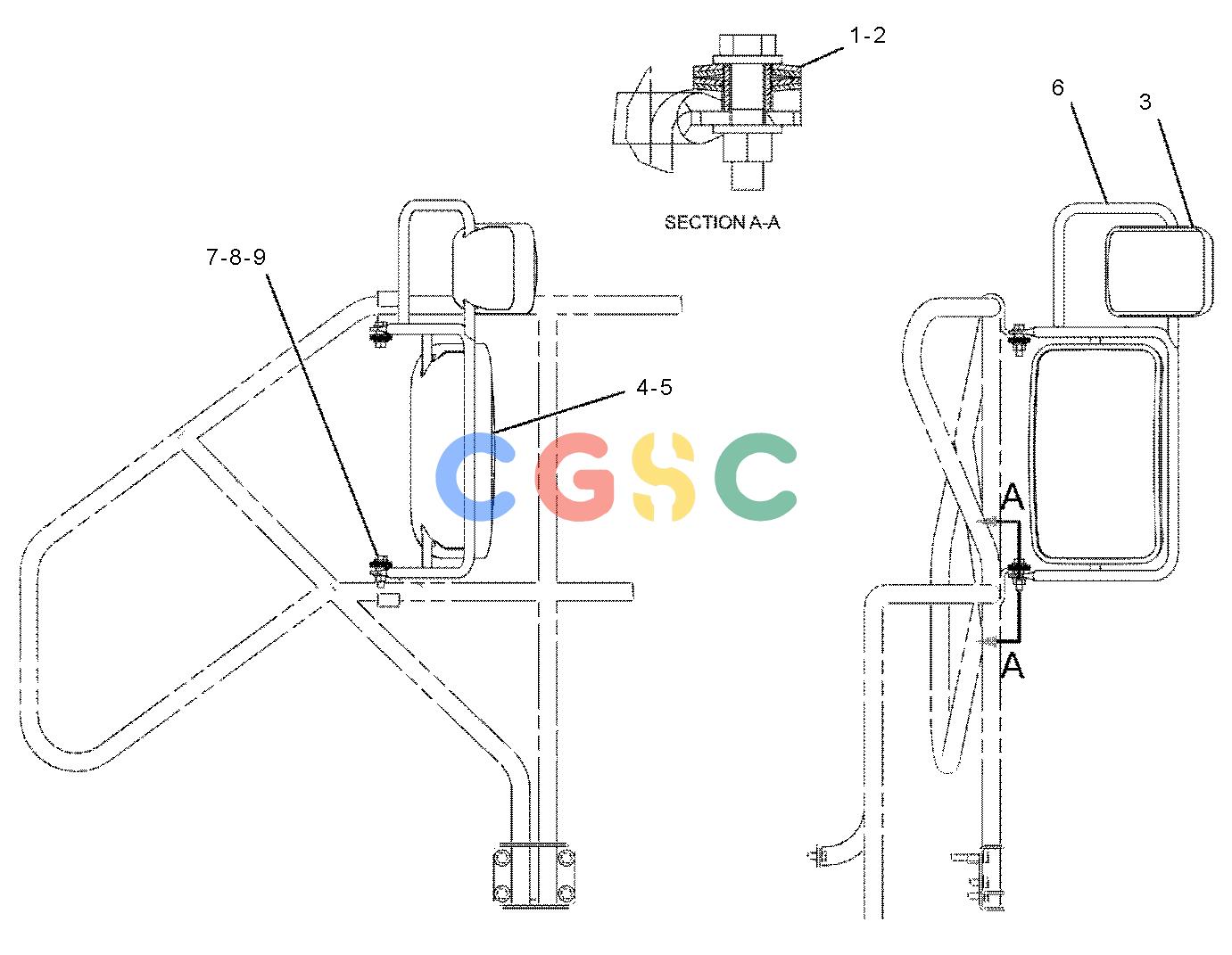

卡特零件查询（740） 211-2038: MIRROR GP-REAR VIEW
广数供应链运营团队, 16 02月, 2025，浏览：
530 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 319-6791 | [1] | MIRROR AS(HEATED, LH) | |
| | 319-6790 | [1] | MIRROR AS(HEATED, RH) | |
| | | | (EACH MIRROR AS INCLUDES) |
| | 294-1993 | [1] | REFLECTOR | |
| | 319-6787 | [1] | COVER AS | |
| | 319-6786 | [2] | MIRROR AS-CONVEX(HEATED) | |
| | | | (EACH INCLUDES) |
| | 308-3843 | [1] | REFLECTOR | |
| | 319-6784 | [1] | COVER AS | |
| | 165-5979 | [1] | SWITCH AS-ROCKER(HEATED MIRROR) | |
| | 3E-8825 | [2] | LAMP(24-VOLT)(MINIATURE) | |
| | 3E-8857 | [1] | SWITCH AS-ROCKER(AIR CONDITIONER) | |
| | 165-5980 | [1] | ACTUATOR | |
| | 236-5334 | [4] | WIRE AS | |
| | | | |
| | 4P-7581 | [5] | CLIP(LADDER) | |
| | 102-8804 | [2] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [8] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 3S-2093 | [34] | STRAP-CABLE | |
