卡特零件查询（740） 162-5126: GUARD GP-PLATFORM
广数供应链运营团队, 16 02月, 2025，浏览：
601 次

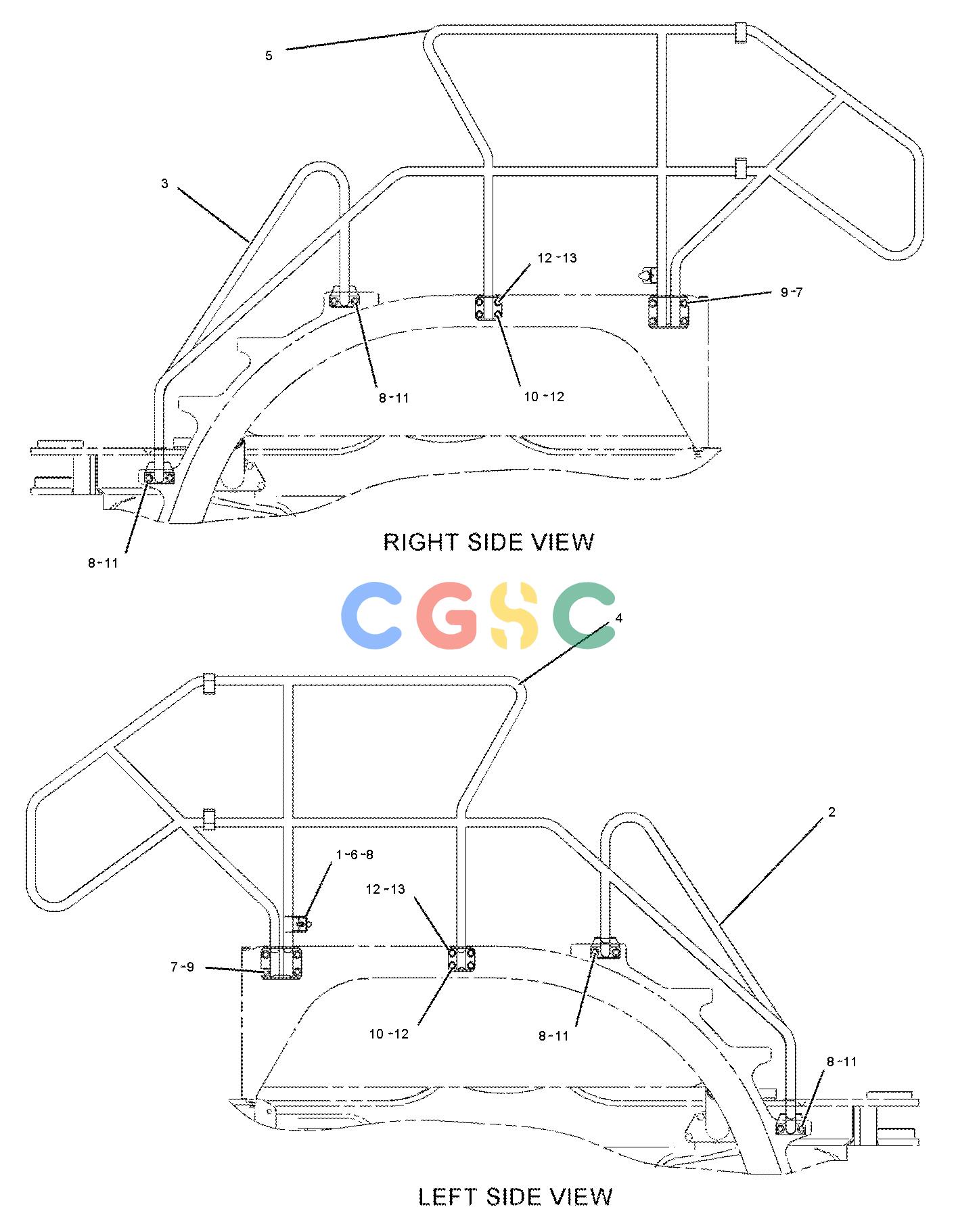

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 096-6573 | [1] | STOP | |
| 2. | 260-5034C | [1] | HANDRAIL AS(LH) | |
| 3. | 260-5035C | [1] | HANDRAIL AS(RH) | |
| 4. | 260-5036C | [1] | HANDRAIL AS(MAIN, LH) | |
| 5. | 260-5037C | [1] | HANDRAIL AS(MAIN, RH) | |
| 6. | 4I-9631M | [1] | NUT(M10X1.25-THD) | |
| 7. | 5P-1076C | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 8. | 7X-7729C | [17] | WASHER(11X25X3-MM THK) | |
| 9. | 8T-4139M | [8] | BOLT(M12X1.75X30-MM) | |
| 10. | 8T-4192CM | [4] | BOLT(M12X1.75X25-MM) | |
| 11. | 8T-4196CM | [16] | BOLT(M10X1.5X35-MM) | |
| 12. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 13. | 8T-4910M | [4] | BOLT(M12X1.75X60-MM) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
