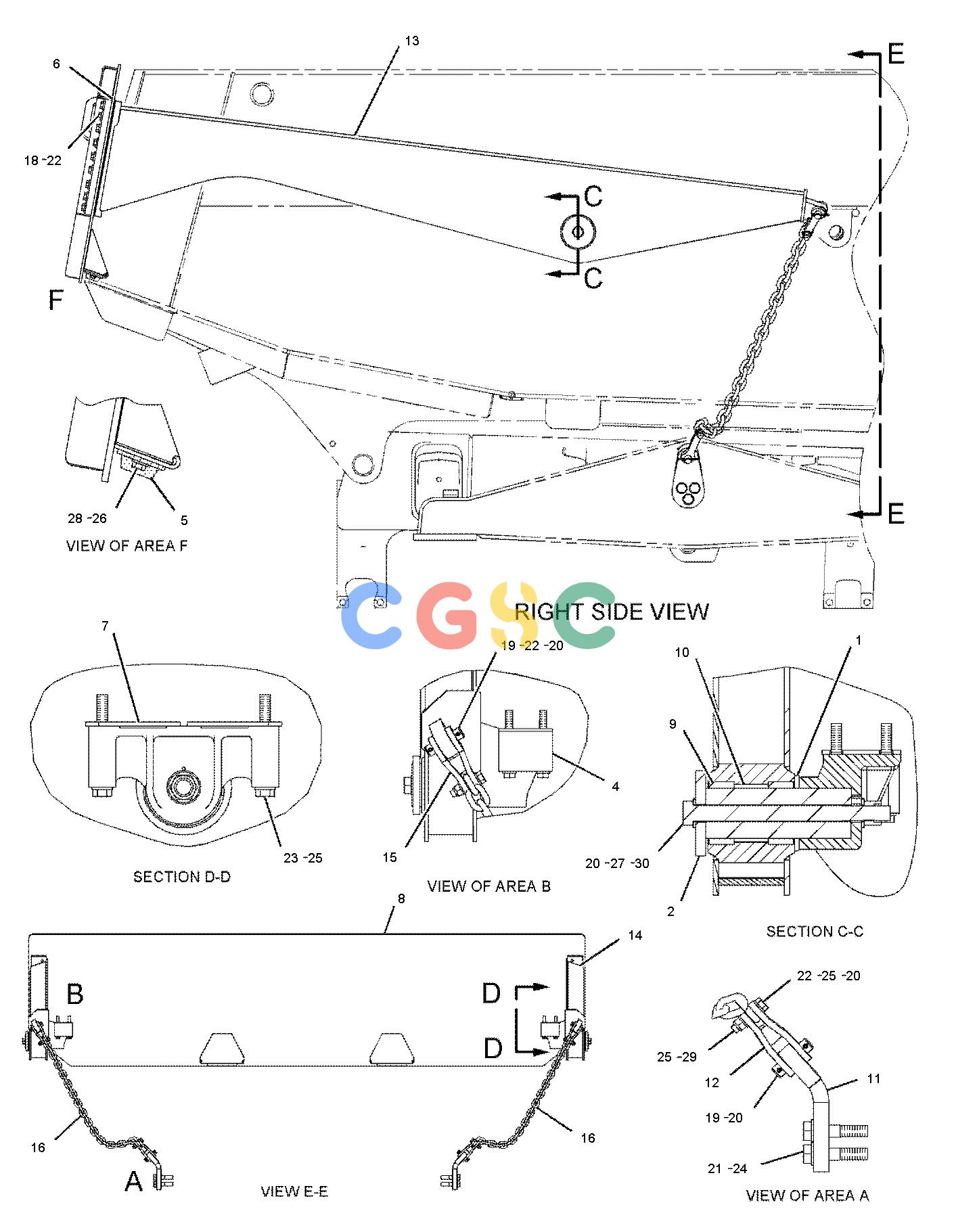

卡特零件查询（740） 304-5455: TAILGATE AR
广数供应链运营团队, 16 02月, 2025，浏览：
262 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3U-2837 | [2] | PAD-THRUST | |
| 2. | 4U-3165 | [2] | DISC | |
| 3. | 5U-7151 | [2] | CAP-GREASE | |
| 4. | 154-4812 | [2] | ABSORBER-SHOCK | |
| 5. | 154-6369B | [12] | SHIM(3-MM THK) | |
| 6. | 337-0716B | [3] | SHIM(6-MM THK) | |
| 7. | 192-9067 | [4] | BUSHING | |
| 8. | 192-9068 | [2] | PIN | |
| 9. | 232-3032 | [2] | CHAIN | |
| 10. | 233-1363 | [2] | PIVOT(TAILGATE) | |
| 11. | 250-3345I | [2] | HOSE AS | |
| 12. | 257-7244 | [2] | LINK(LONG) | |
| 13. | 257-7245 | [2] | LINK(SHORT) | |
| 14. | 304-5446 | [1] | PLATE AS | |
| 15. | 304-8267 | [1] | ARM AS(RH) | |
| 16. | 304-8268 | [1] | ARM AS(LH) | |
| 17. | 305-3593 | [2] | PLATE(ANCHOR) | |
| 18. | 305-4173 | [18] | SPACER(17.5X38X25-MM THK) | |
| 19. | 198-4771 | [6] | WASHER-HARD(26X47X12-MM THK) | |
| 20. | 198-4780 | [8] | WASHER-HARD(17.5X32X8-MM THK) | |
| 21. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 22. | 5D-9231 | [2] | CONNECTOR | |
| 23. | 6V-7676M | [6] | NUT(M24X3-THD) | |
| 24. | 6V-8132M | [6] | BOLT(M24X3X120-MM) | |
| 25. | 7X-2489M | [4] | BOLT(M24X3X100-MM) | |
| 26. | 7X-2554M | [4] | BOLT(M16X2X70-MM) | |
| 27. | 7X-2557M | [8] | BOLT(M16X2X140-MM) | |
| 28. | 8L-6557 | [2] | CONNECTOR | |
| 29. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 30. | 8T-4167 | [12] | WASHER-HARD(26X44X4-MM THK) | |
| 31. | 8T-4175M | [18] | BOLT(M16X2X90-MM) | |
| 32. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 33. | 8T-4778M | [4] | LOCKNUT(M16X2-THD) | |
| 34. | 9X-8257 | [8] | WASHER(17.5X30X3.5-MM THK) | |
| 35. | 9X-8913M | [2] | BOLT(M24X3X300-MM) | |
| 36. | 7X-2556BM | [18] | BOLT(M16X2X100-MM) | |
| 37. | 8T-4173BM | [18] | BOLT(M16X2X110-MM) | |
| 38. | 7X-2558BM | [8] | BOLT(M16X2X150-MM) | |
| 39. | 360-4699B | [2] | SHIM(1-MM THK) | |
| 40. | 169-4040B | [4] | SHIM(2-MM THK) | |
| | B | | USE AS REQUIRED |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
