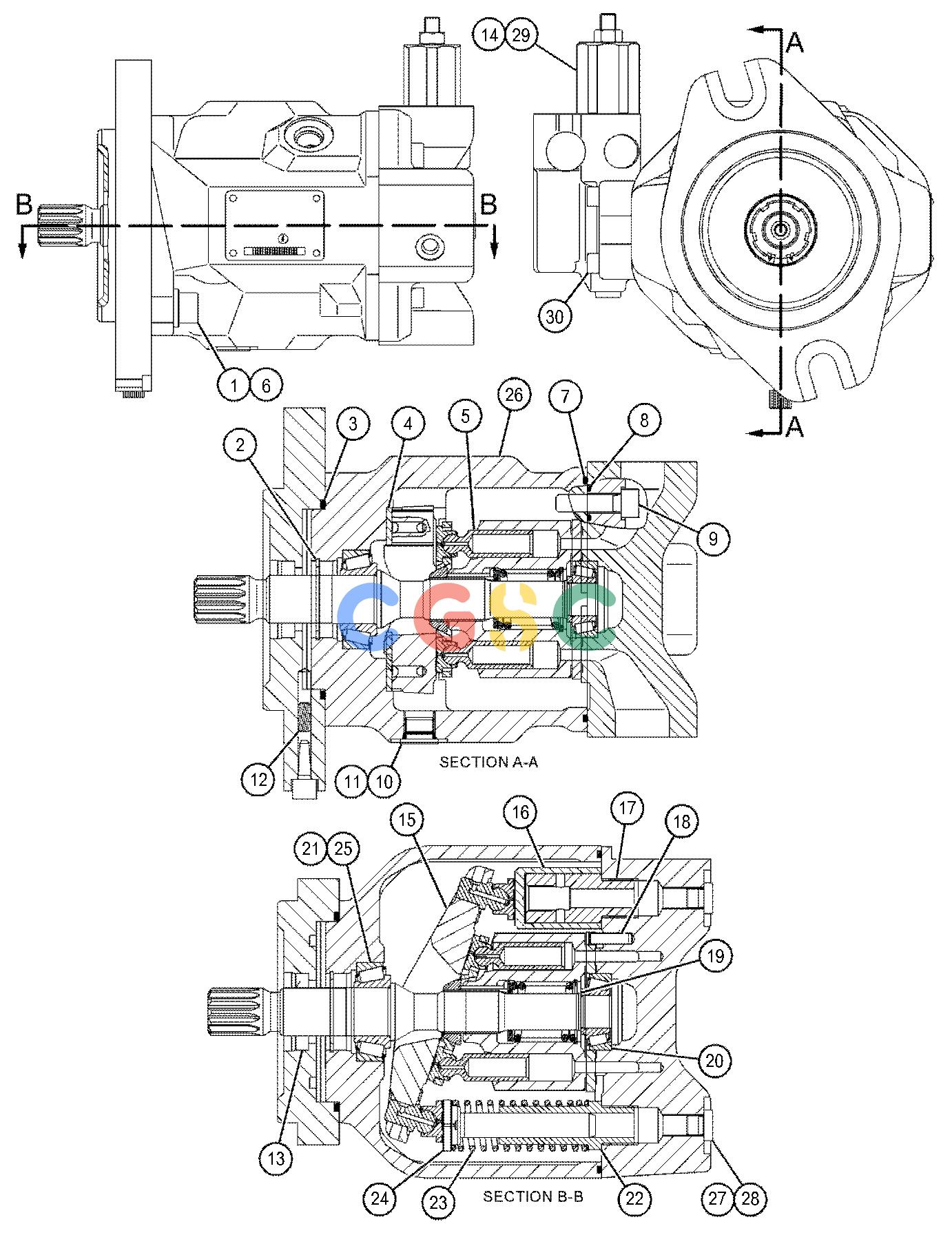

卡特零件查询（740） 187-9090: PUMP GP-PISTON
广数供应链运营团队, 16 02月, 2025，浏览：
217 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-1159M | [2] | BOLT-SOCKET HEAD(M10X1.5X25-MM) | |
| 2. | 8T-9597 | [1] | RING-RETAINING | |
| 3. | 095-1711 | [1] | SEAL-O-RING | |
| 4. | 189-4719 | [2] | BEARING | |
| 5. | 189-4710Y | [1] | ROTATING GP-PUMP | |
| 6. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 169-7442 | [1] | SEAL-O-RING | |
| 8. | 117-8216 | [4] | SEAL-O-RING | |
| 9. | 6V-5192M | [4] | BOLT-SOCKET HEAD(M8X1.25X30-MM) | |
| 10. | 3J-1907 | [1] | SEAL-O-RING | |
| 11. | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| 12. | 173-0641 | [1] | PLUG-FILTER | |
| 13. | 189-4720 | [2] | SEAL-SHAFT | |
| 14. | 421-1062CY | [1] | VALVE GP-PUMP CONTROL | |
| 15. | 189-4714 | [1] | SWASHPLATE AS | |
| 16. | 189-4733 | [1] | PISTON | |
| 17. | 189-4734 | [1] | GUIDE | |
| 18. | 186-4259 | [1] | PIN | |
| 19. | 189-4716 | [1] | SHIM(2.5-MM THK) | |
| 20. | 189-4718 | [1] | BEARING | |
| 21. | 203-8609C | [1] | CUP-BEARING | |
| 22. | 189-4735 | [1] | GUIDE | |
| 23. | 189-4736 | [1] | SPRING | |
| 24. | 191-5185 | [1] | PLUNGER | |
| 25. | 105-3035C | [1] | CONE-BEARING | |
| 26. | 478-3787C | [1] | HOUSING | |
| 27. | 451-0464C | [2] | PLUG | |
| 28. | 187-8001C | [2] | SEAL | |
| 29. | 280-7870C | [1] | GASKET | |
| 30. | 8T-8442M | [4] | BOLT-SOCKET HEAD(M6X1X30-MM) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
