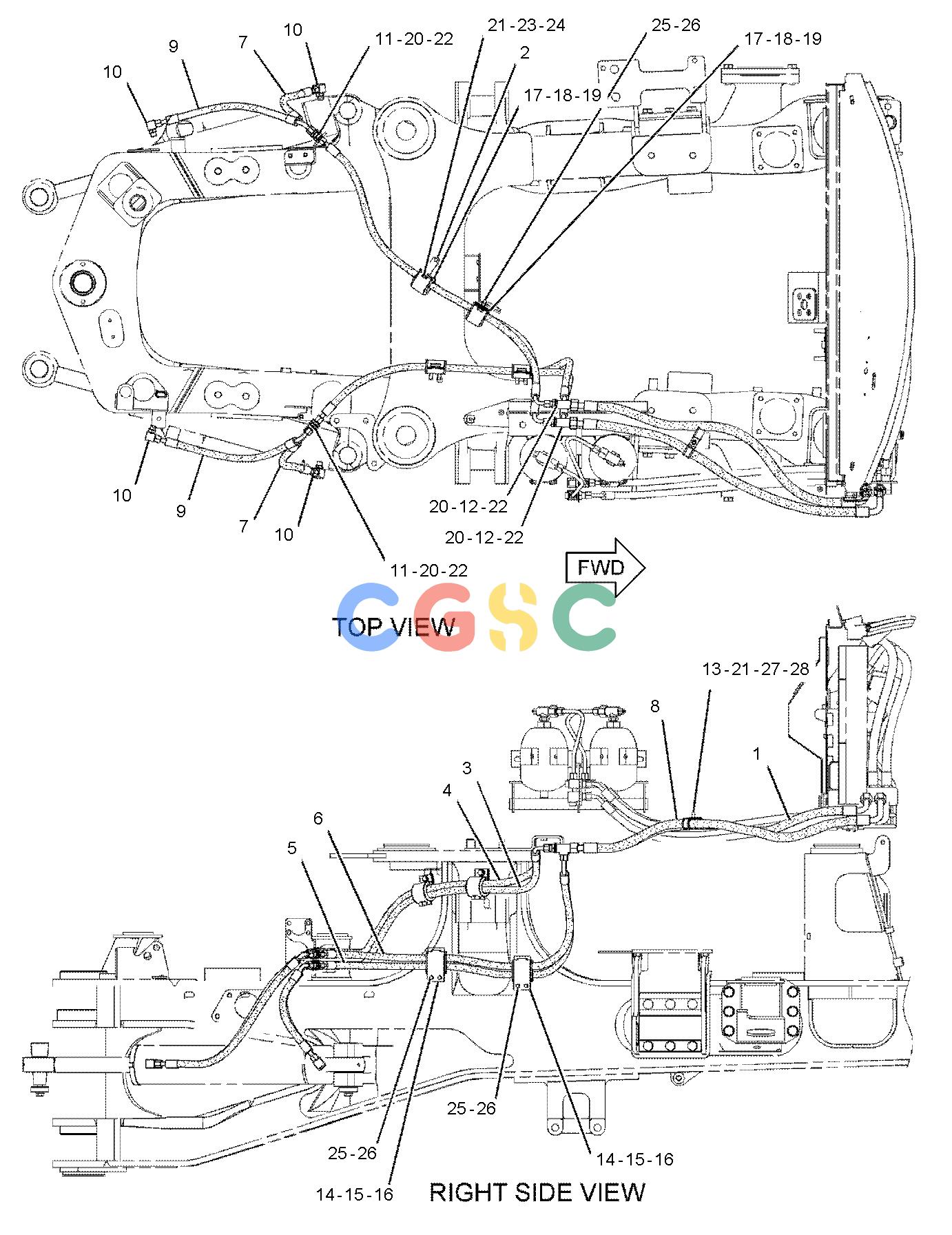

卡特零件查询（740） 152-7103: LINES GP-STEERING
广数供应链运营团队, 16 02月, 2025，浏览：
676 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2T-2099I | [1] | HOSE AS | |
| 2. | 6U-2703 | [1] | BRACKET-ANGLE | |
| 3. | 9R-3656I | [1] | HOSE AS | |
| 4. | 9U-0361I | [1] | HOSE AS | |
| 5. | 124-8847I | [1] | HOSE AS | |
| 6. | 237-0789I | [1] | HOSE AS | |
| 7. | 148-7779CI | [2] | HOSE AS | |
| 8. | 191-7566I | [1] | HOSE AS | |
| 9. | 204-7388CI | [2] | HOSE AS | |
| 10. | 148-8364C | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8625 | [1] | ELBOW | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 11. | 148-8457C | [4] | UNION AS(STRAIGHT) | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 12. | 164-5580 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-9489 | [1] | TEE-BULKHEAD | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 13. | 2U-2749 | [2] | CLIP | |
| 14. | 3G-8047 | [2] | GROMMET | |
| 15. | 3G-8054 | [2] | CLIP(TAB) | |
| 16. | 3G-8057 | [2] | CLIP(SLOT) | |
| 17. | 5P-7470 | [2] | CLIP(SLOT) | |
| 18. | 5P-7471 | [2] | CLIP(TAB) | |
| 19. | 5P-7703 | [2] | GROMMET(52-MM ID) | |
| 20. | 6V-9169 | [6] | NUT(13/16-16-THD) | |
| 21. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 22. | 8T-4123 | [10] | WASHER(3.62X5.75X0.375-MM THK) | |
| 23. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 24. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 25. | 8T-4223 | [5] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 26. | 8T-4956M | [5] | BOLT(M12X1.75X35-MM) | |
| 27. | 141-3983 | [1] | SPACER(11X19X48-MM THK) | |
| 28. | 8T-5005M | [1] | BOLT(M10X1.5X70-MM) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
