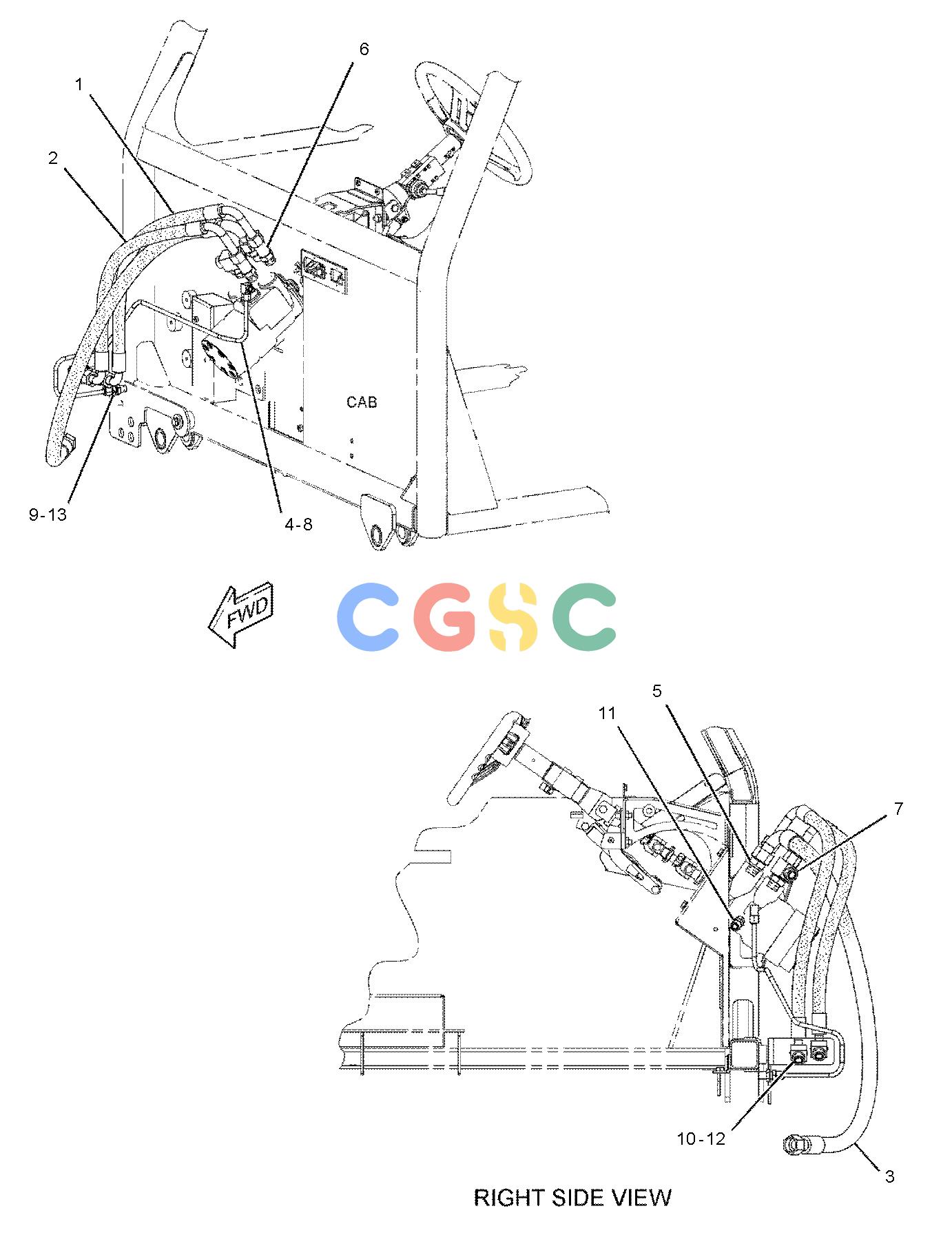

卡特零件查询（740） 153-5493: LINES GP-STEERING
广数供应链运营团队, 16 02月, 2025，浏览：
465 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 191-0892I | [1] | HOSE AS | |
| 2. | 191-0893I | [1] | HOSE AS | |
| 3. | 191-0894I | [1] | HOSE AS | |
| 4. | 301-9628C | [1] | TUBE AS | |
| 5. | 148-8317 | [1] | CONNECTOR AS | |
| | 6V-8714 | [1] | CONNECTOR | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| 6. | 148-8344 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-9162 | [1] | CONNECTOR | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 7. | 148-8347 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 8. | 148-8361 | [1] | ELBOW AS(90-DEG) | |
| | 6V-9200 | [1] | ELBOW | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 9. | 149-5452 | [1] | UNION AS(STRAIGHT) | |
| | 6V-8994 | [1] | UNION(STRAIGHT) | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| 10. | 165-4933 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8990 | [1] | ELBOW | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 11. | 183-7263 | [1] | PLUG AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 12. | 2P-1293 | [2] | LOCKNUT(1-3/16-12-THD) | |
| 13. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
