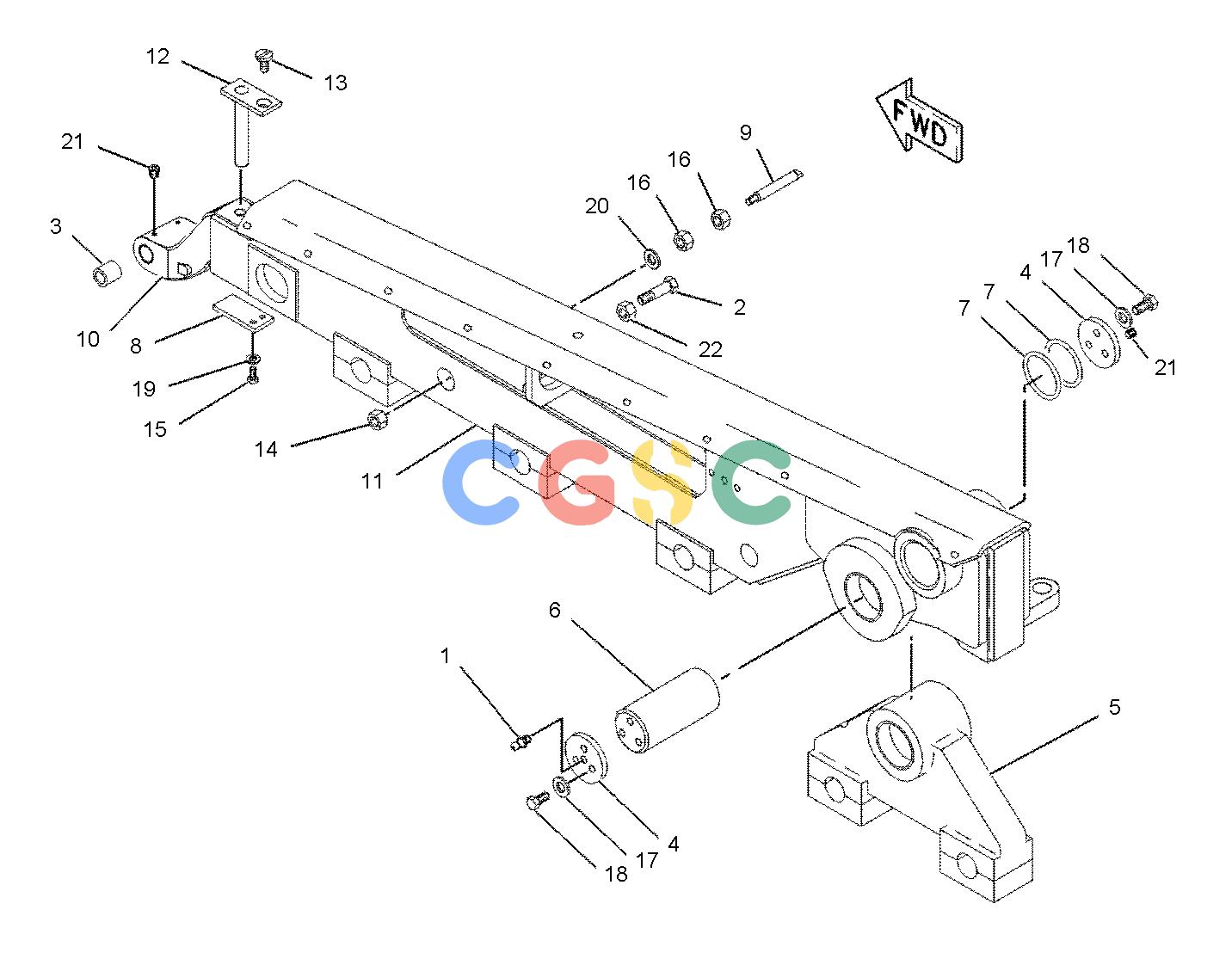

卡特零件查询（AP-1055B） 172-1591: FRAME GP-TRACK ROLLER
广数供应链运营团队, 16 02月, 2025，浏览：
251 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8489 | [1] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 3E-8047 | [1] | BOLT(1-8X6-IN) | |
| 3. | 108-4159 | [2] | BUSHING | |
| 4. | 109-6279 | [2] | PLATE | |
| 5. | 136-1195 | [1] | FRAME AS-BOGIE | |
| | 7X-2563M | [8] | BOLT(M20X2.5X60-MM) | |
| | 8T-4994 | [8] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| | 136-4352 | [2] | BUSHING | |
| 6. | 136-1204 | [1] | SHAFT | |
| 7. | 138-4407 | [4] | SHIM(.51MM) | |
| 8. | 171-4403 | [1] | PLATE | |
| 9. | 171-6333 | [1] | ROD | |
| 10. | 171-6334 | [1] | BAR AS | |
| 11. | 172-1587 | [1] | FRAME AS(RH) | |
| | 7X-2563M | [12] | BOLT(M20X2.5X60-MM) | |
| | 8T-4994 | [12] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| | 136-4352 | [2] | BUSHING | |
| | 171-4404 | [1] | PLATE | |
| | 172-0998 | [1] | PLATE | |
| | 172-0999 | [1] | PLATE | |
| 12. | 172-1694 | [1] | PIN AS | |
| 13. | 107-2783 | [1] | SCREW-FLAT HEAD(1/2-13X1-IN) | |
| 14. | 1K-6870 | [1] | LOCKNUT(3/4-10-THD) | |
| 15. | 5M-3062 | [2] | BOLT(3/8-16X0.75-IN) | |
| 16. | 6V-8182 | [2] | NUT(3/4-10-THD) | |
| 17. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 18. | 8T-4835 | [6] | BOLT(1/2-13X2-IN) | |
| 19. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 20. | 5P-6652 | [1] | WASHER(20X44.5X6-MM THK) | |
| 21. | 9F-2247 | [3] | PLUG-PIPE | |
| 22. | 6V-8190 | [1] | NUT(1-8-THD) | |
| | M | | METRIC PART |
