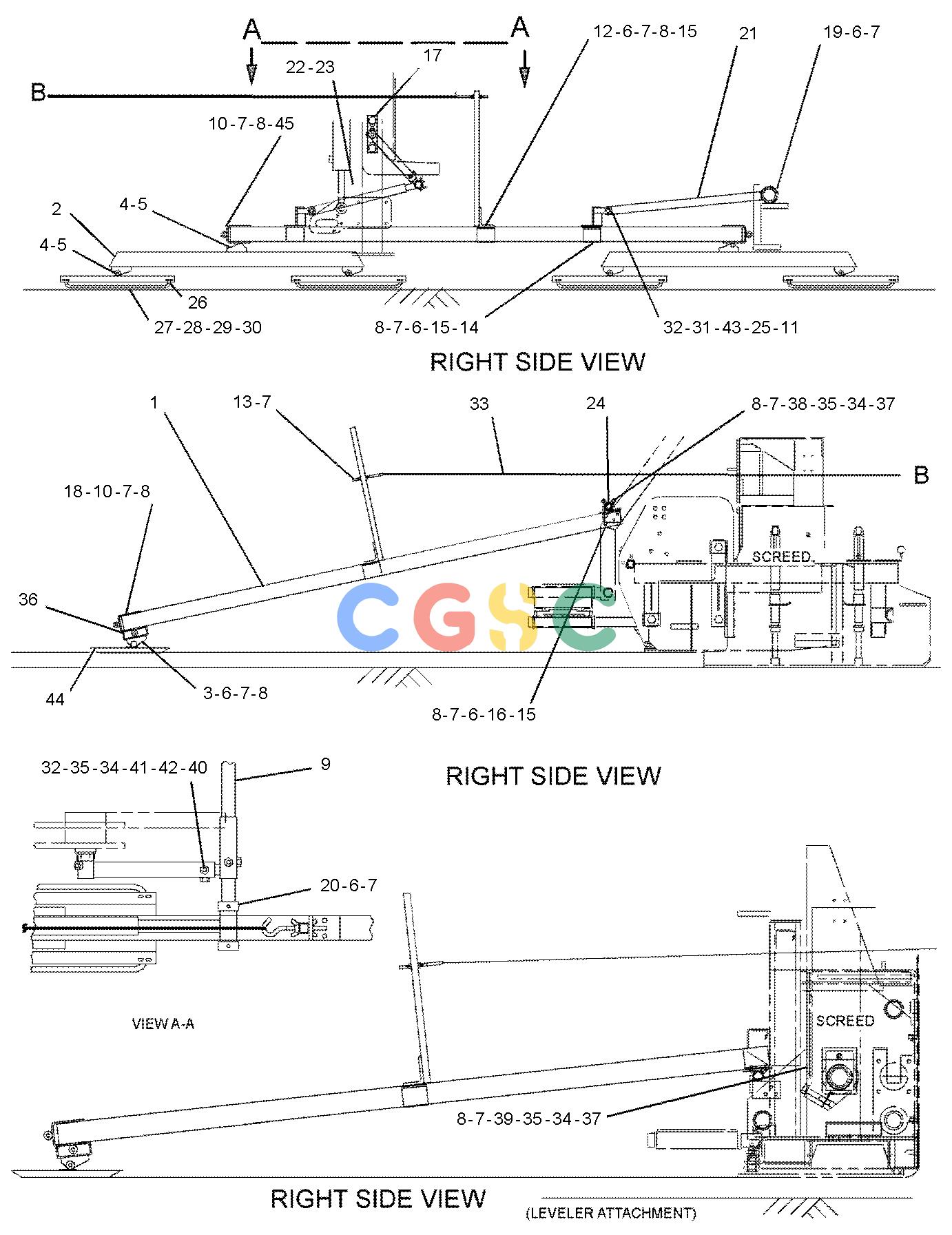

卡特零件查询（AP-1055B） 109-5625: LEVELER GP
广数供应链运营团队, 16 02月, 2025，浏览：
831 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 167-9632C | [2] | BEAM | |
| 2. | 081-9638 | [2] | CHANNEL | |
| 3. | 081-7209C | [7] | BRACKET | |
| 4. | 7X-0334C | [7] | BOLT(1/2-13X5-IN) | |
| 5. | 2H-3788C | [7] | LOCKNUT(1/2-13-THD) | |
| 6. | 9B-7237 | [42] | BOLT(3/8-16X1.25-IN) | |
| 7. | 6V-8801C | [62] | NUT(3/8-16-THD) | |
| 8. | 8T-4896C | [62] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 9. | 109-5659 | [1] | SHAFT | |
| 10. | 167-1314C | [3] | PLATE AS | |
| 11. | 4L-6454 | [2] | BOLT(3/8-16X1-IN) | |
| 12. | 172-5628C | [2] | TUBE AS | |
| 13. | 109-5641C | [2] | EYEBOLT(3/8-16-THD) | |
| 14. | 169-0173C | [2] | PLATE AS | |
| 15. | 169-0171C | [5] | PLATE | |
| 16. | 169-0174C | [1] | PLATE AS | |
| | 8T-5912 | [1] | NUT-WELD(3/8-16-THD) | |
| 17. | 122-1153BC | [2] | SUPPORT AS-GUIDE | |
| | 7X-0443B | [4] | BOLT(1-8X5.5-IN) | |
| | | | -OR- |
| | 122-1155B | [2] | SUPPORT AS-GUIDE | |
| | 8T-2502B | [4] | BOLT(3/8-16X1.125-IN) | |
| | | | -OR- |
| | 122-1157B | [2] | SUPPORT AS-GUIDE | |
| | 7X-0387B | [4] | BOLT(7/8-9X4-IN) | |
| | | | -OR- |
| | 231-1393B | [1] | PLATE AS | |
| | 8T-4121B | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| | 8T-4195BM | [4] | BOLT(M10X1.5X30-MM) | |
| 18. | 7X-0293C | [4] | BOLT(3/8-16X4.75-IN) | |
| 19. | 109-5649 | [2] | COLLAR | |
| 20. | 140-8793 | [4] | COLLAR | |
| 21. | 109-5651 | [1] | ARM AS | |
| 22. | 109-5634 | [1] | TUBE AS | |
| 23. | 109-7798 | [1] | ROD AS | |
| | 109-7807 | [1] | BAR | |
| 24. | 109-7805 | [1] | BAR | |
| 25. | 167-4290C | [2] | EYEBOLT(3/4-10-THD) | |
| 26. | 109-5629 | [4] | SHOE AS | |
| 27. | 109-5632 | [8] | RUNNER | |
| 28. | 119-5915 | [16] | U-BOLT(1/4-20-THD) | |
| 29. | 6V-8185 | [32] | NUT(1/4-20-THD) | |
| 30. | 8T-4205 | [32] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 31. | 6V-8182 | [4] | NUT(3/4-10-THD) | |
| 32. | 8T-4994 | [3] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 33. | 9N-8909 | [1] | STRINGLINE | |
| 34. | 8T-8917 | [10] | BOLT(1/2-13X1.25-IN) | |
| 35. | 6V-8188 | [10] | NUT(1/2-13-THD) | |
| 36. | 172-7077C | [1] | TUBE | |
| 37. | 109-5658 | [2] | SUPPORT AS-GUIDE | |
| | | | (EACH INCLUDES) |
| | 1F-0748 | [2] | NUT-WELD(1/2-13-THD) | |
| 38. | 8T-8915 | [4] | BOLT(3/8-16X3.25-IN) | |
| 39. | 4L-9337 | [4] | BOLT(3/8-16X1.5-IN) | |
| 40. | 122-1104 | [1] | ROD AS | |
| 41. | 122-1150 | [1] | TUBE AS | |
| 42. | 8T-9397 | [1] | BOLT(3/4-10X1.25-IN) | |
| 43. | 9L-9132 | [2] | WASHER(10.2X25.5X2.5-MM THK) | |
| 44. | 081-7211 | [1] | SHOE-PAN | |
| 45. | 7X-0292 | [8] | BOLT(3/8-16X4.5-IN) | |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
