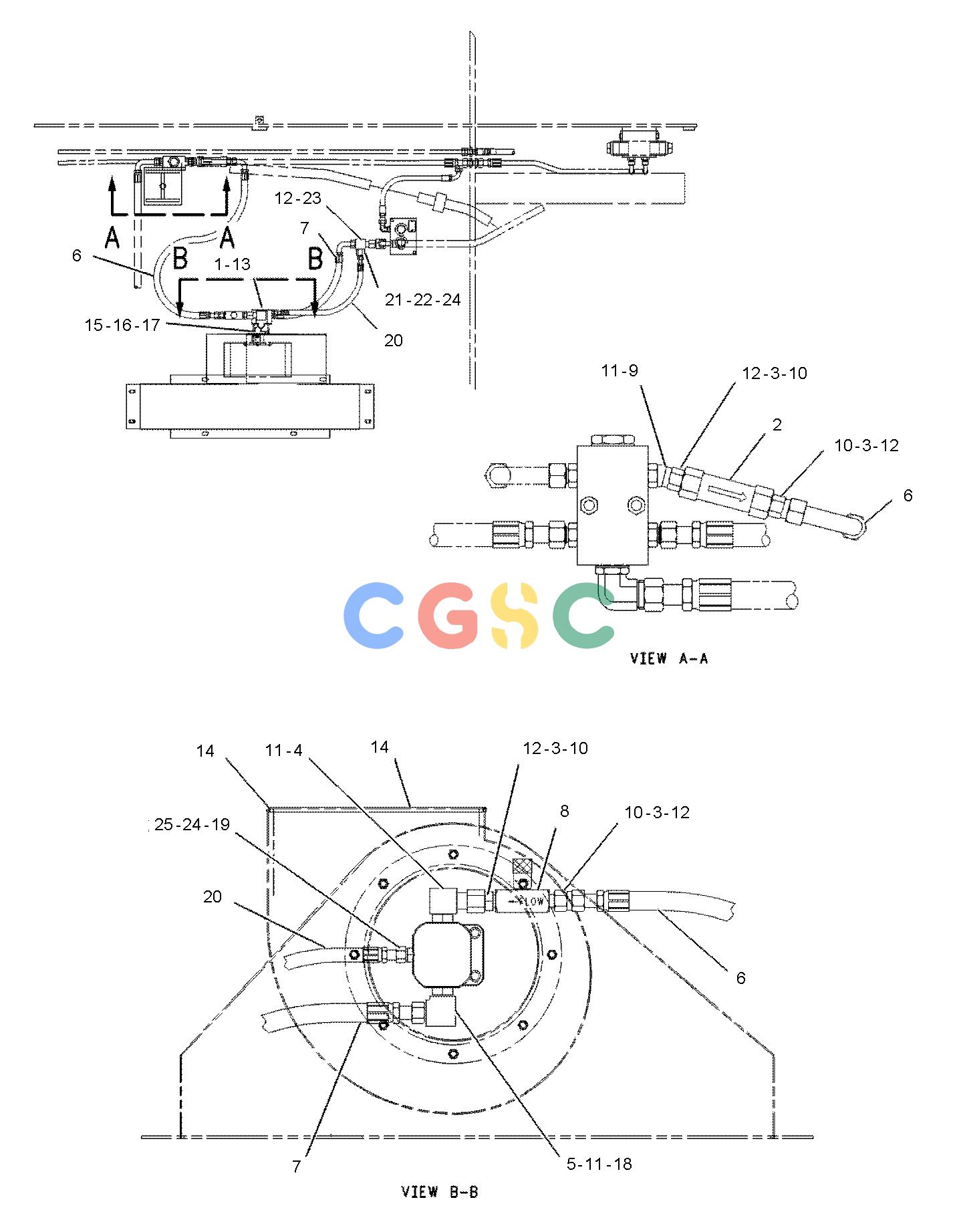

卡特零件查询（BG-2455C） 148-1516: LINES GP-PAVER VENTILATION
广数供应链运营团队, 16 02月, 2025，浏览：
1013 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 197-1728Y | [1] | MOTOR GP-GEAR(BLOWER FAN) | |
| 2. | 147-4551 | [1] | VALVE-FLOW CONTROL | |
| 3. | 6V-9873 | [4] | CONNECTOR | |
| 4. | 8T-0249 | [1] | ELBOW(SWIVEL) | |
| 5. | 6V-8722 | [1] | ELBOW | |
| 6. | 148-0805I | [1] | HOSE AS | |
| 7. | 152-6124I | [1] | HOSE AS | |
| 8. | 197-1725 | [1] | VALVE-SHUTOFF | |
| 9. | 8T-0252 | [1] | ELBOW | |
| 10. | 3J-1907 | [4] | SEAL-O-RING | |
| 11. | 3K-0360 | [3] | SEAL-O-RING | |
| 12. | 6V-8398 | [6] | SEAL-O-RING | |
| 13. | 102-2739 | [1] | KEY-SQUARE | |
| 14. | 7X-7877BE | | STRIP-EDGE | |
| 15. | 6V-5782 | [4] | BOLT(5/16-18X1.125-IN) | |
| 16. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 17. | 6V-8189 | [4] | NUT(5/16-18-THD) | |
| 18. | 7J-9108 | [1] | SEAL-O-RING | |
| 19. | 6V-8647 | [1] | CONNECTOR | |
| 20. | 1C-7657I | [1] | HOSE AS | |
| 21. | 6V-8935 | [1] | REDUCER | |
| 22. | 6V-8554 | [1] | NUT(13/16-16-THD) | |
| 23. | 6V-9837 | [1] | TEE-SWIVEL | |
| 24. | 4J-5477 | [2] | SEAL-O-RING | |
| 25. | 3J-7354 | [1] | SEAL-O-RING | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | Y | | SEPARATE ILLUSTRATION |
