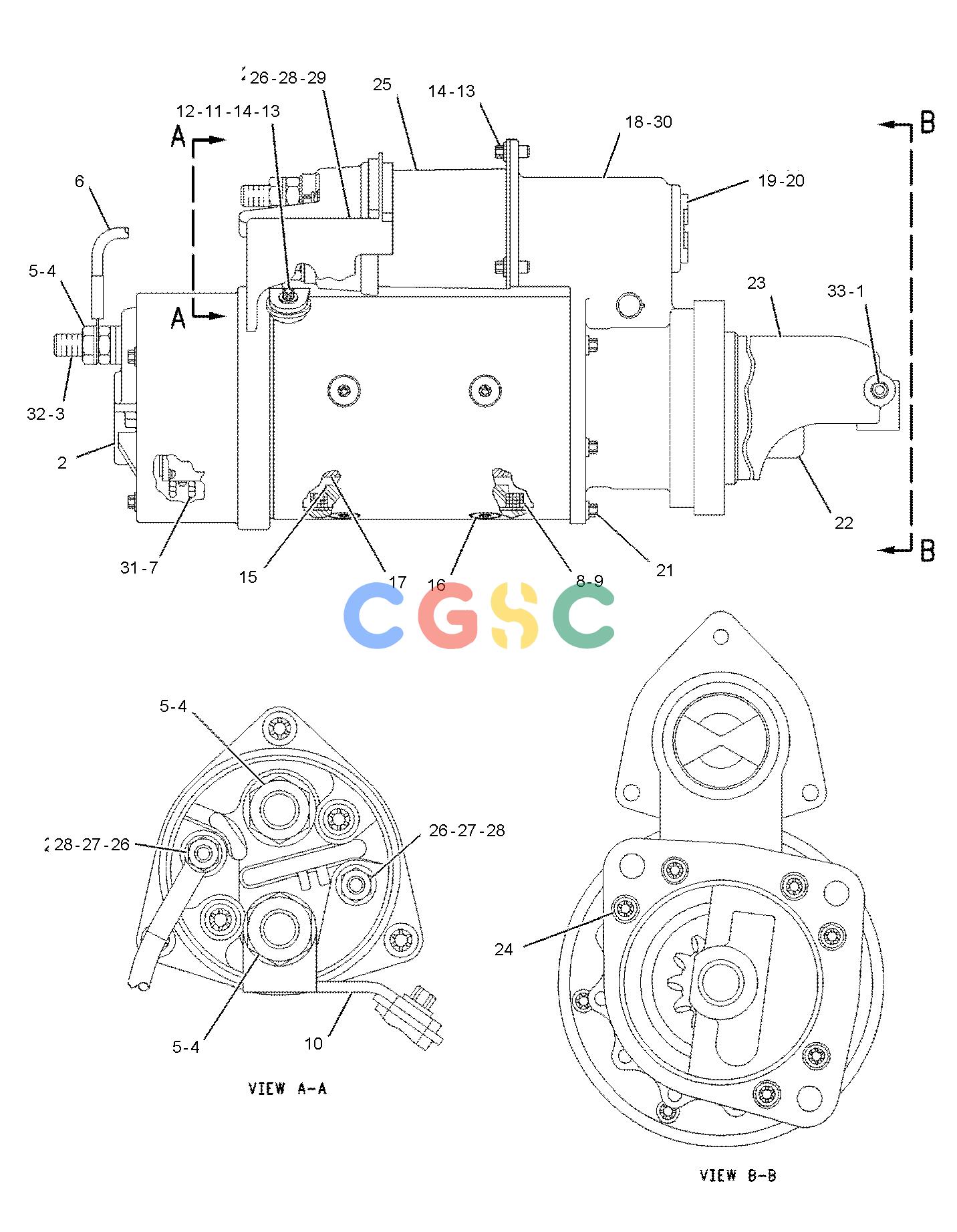

卡特零件查询（AP-1055D） 207-1551: STARTING MOTOR GP-ELECTRIC
广数供应链运营团队, 16 02月, 2025，浏览：
240 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9F-2247 | [1] | PLUG-PIPE | |
| 2. | 7T-3279 | [1] | HOUSING AS | |
| 3. | 8T-8566 | [1] | TERMINAL AS | |
| 4. | 6V-8188 | [4] | NUT(1/2-13-THD) | |
| 5. | 7X-0562 | [4] | WASHER-HARD(13.5X19X0.8-MM THK) | |
| 6. | 3T-3422 | [1] | WIRE AS | |
| 7. | 7T-3278 | [1] | HOLDER AS-BRUSH | |
| 8. | 7T-3277 | [1] | COIL AS-FIELD | |
| 9. | 7T-3454 | [1] | INSULATOR | |
| 10. | 7T-3271 | [1] | CONNECTOR | |
| 11. | 7T-3451 | [1] | KIT-INSULATOR(STARTING MOTOR) | |
| 12. | 8T-8569 | [1] | INSULATOR-TERMINAL | |
| 13. | 5S-7349 | [4] | BOLT(1/4-20X0.5-IN) | |
| 14. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 15. | 8H-1141 | [4] | SHOE-POLE | |
| 16. | 3F-0379 | [8] | SCREW-POLE SHOE(3/8-24-THD) | |
| 17. | 7T-3276 | [1] | ARMATURE AS(24-VOLT) | |
| 18. | 105-9702 | [1] | HOUSING AS | |
| 19. | 4M-1831 | [1] | PLUG-LEVER HOUSING | |
| 20. | 7L-2894 | [1] | GASKET | |
| 21. | 036-9823 | [5] | BOLT(1/4-28X1-IN) | |
| 22. | 6N-3827 | [1] | DRIVE AS-MOTOR | |
| 23. | 9X-9510 | [1] | HOUSING AS | |
| 24. | 7X-3373 | [6] | BOLT(5/16-18X0.88-IN) | |
| 25. | 193-8570 | [1] | SOLENOID AS-STARTING MOTOR(24-VOLT) | |
| 26. | 6V-8378 | [3] | NUT(10-32-THD) | |
| 27. | 8F-1434 | [2] | LOCKWASHER | |
| 28. | 8T-0328 | [3] | WASHER-HARD(5.5X10X1-MM THK) | |
| 29. | 9X-4824 | [1] | COVER-STARTING MOTOR | |
| 30. | 7T-3268 | [1] | KIT-LEVER(STARTING MOTOR) | |
| | | | (INCLUDES LEVER AS, SHAFT AS, GASKET, SEALS, RINGS, STOP & NUT) |
| 31. | 8C-3655 | [1] | KIT-BRUSH(STARTING MOTOR) | |
| | | | (INCLUDES BRUSHES, SEAL, SCREWS & SPRINGS) |
| 32. | 8T-9884 | [1] | KIT-INSULATOR(STARTING MOTOR) | |
| | | | (INCLUDES INSULATORS & BUSHING) |
| 33. | 9F-2547 | [1] | WICK | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 7T-3267 | [1] | KIT-BUSHING(STARTING MOTOR) | |
| | | | (INCLUDES BUSHINGS, WICKS, CUPS, SEALS, GASKET, WASHERS, SPACER, NUT, & SCREW ASSEMBLIES) |
