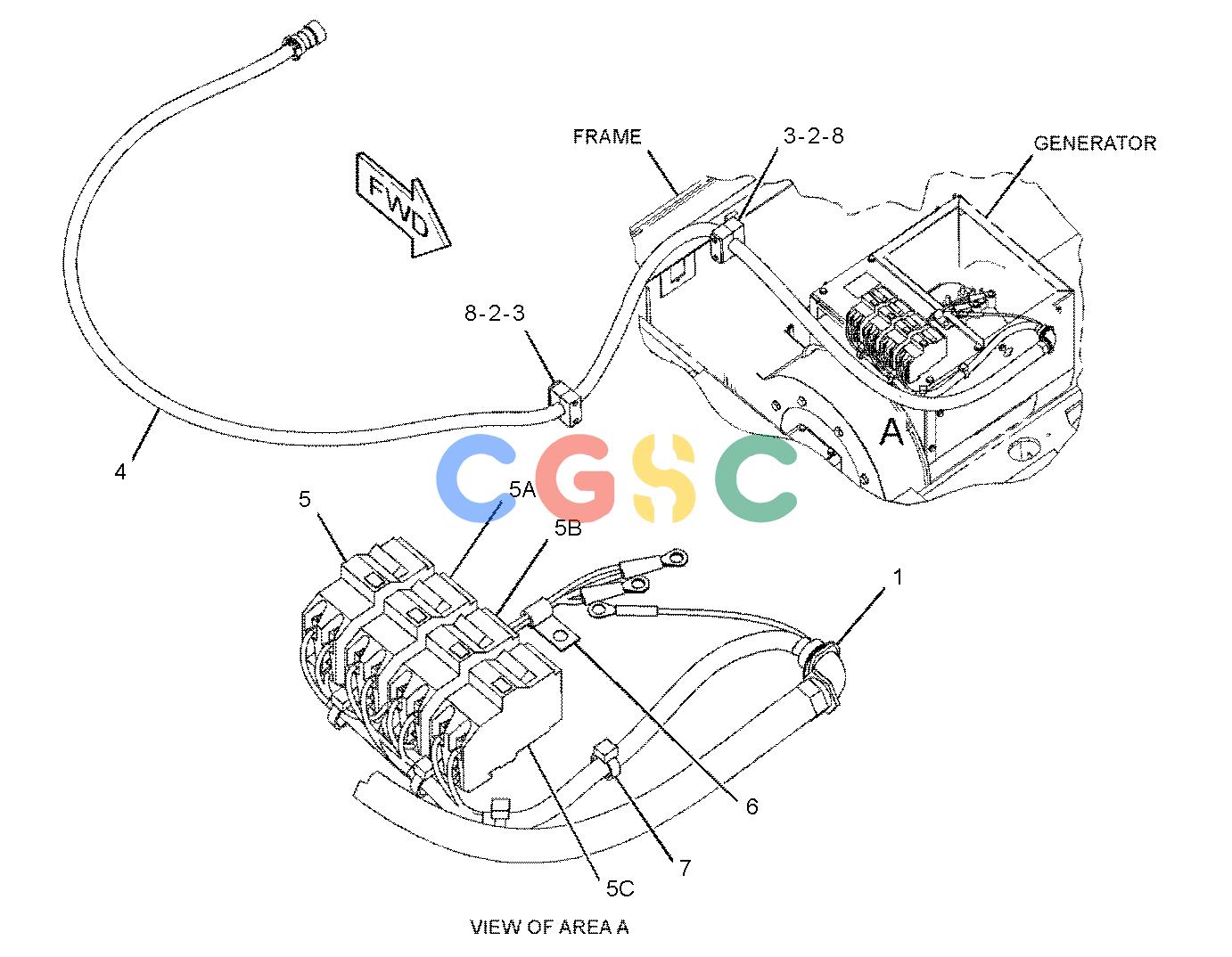

卡特零件查询（AP-1055D） 235-3547: WIRING GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
197 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5E-8011 | [1] | WASHER-SPECIAL(3.8-MM THK) | |
| 2. | 7R-7939 | [4] | CLAMP-PIPE | |
| 3. | 7R-7951 | [2] | PLATE | |
| 4. | 284-1580 | [1] | HARNESS AS-SCREED | |
| 5. | 254-5092 | [1] | CIRCUIT BREAKER AS(25-AMPERE)(EXTENDER HEATER, LH) | |
| 5A. | 254-5092 | [1] | CIRCUIT BREAKER AS(25-AMPERE)(MAIN HEATER, LH) | |
| 5B. | 254-5092 | [1] | CIRCUIT BREAKER AS(25-AMPERE)(MAIN HEATER, RH) | |
| 5C. | 254-5092 | [1] | CIRCUIT BREAKER AS(25-AMPERE)(EXTENDER HEATER, RH) | |
| 6. | 6V-3265 | [1] | CLIP(SLOT) | |
| 7. | 7K-1181 | [4] | STRAP-CABLE | |
| 8. | 7X-2535M | [4] | BOLT(M6X1X60-MM) | |
| | M | | METRIC PART |
