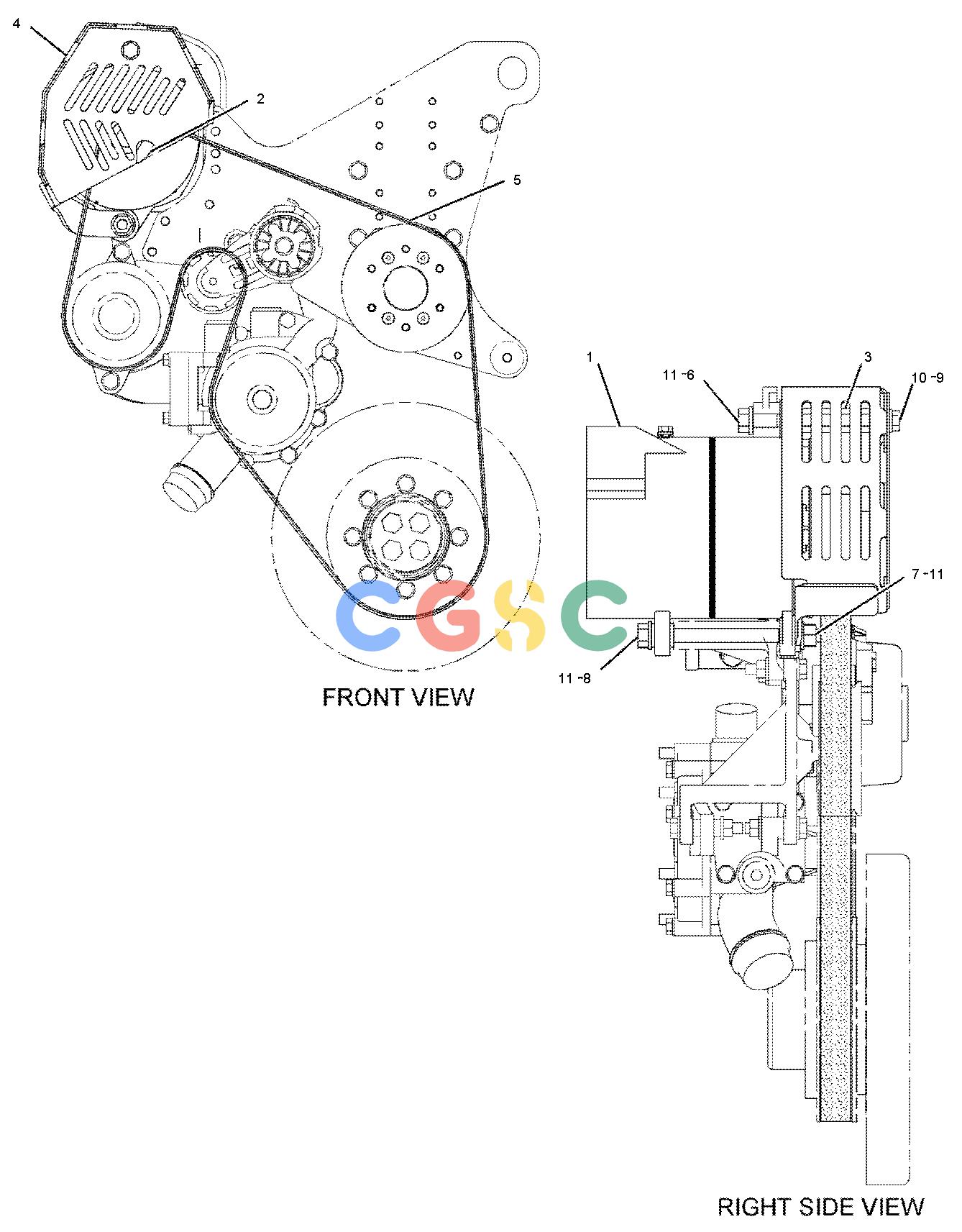

卡特零件查询（AP-1055D） 232-1714: ALTERNATOR GP-CHARGING
广数供应链运营团队, 16 02月, 2025，浏览：
543 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 200-8277Y | [1] | ALTERNATOR GP-CHARGING(24-VOLT, 100-AMPERE) | |
| 2. | 129-5096 | [1] | PULLEY-ALTERNATOR(8-GROOVE) | |
| 3. | 203-0199 | [1] | SPACER(HEX) | |
| 4. | 258-7531 | [1] | GUARD AS | |
| 5. | 206-4229 | [1] | BELT-SERPENTINE(ALTERNATOR, FAN DRIVE) | |
| 6. | 5P-2424 | [1] | BOLT(1/2-13X2.25-IN) | |
| 7. | 6V-8188 | [1] | NUT(1/2-13-THD) | |
| 8. | 7X-0339 | [1] | BOLT(1/2-13X6.25-IN) | |
| 9. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 10. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 11. | 8T-4223 | [3] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
