卡特零件查询（AP-1055D） 305-5530: ALTERNATOR GP-CHARGING
广数供应链运营团队, 16 02月, 2025，浏览：
921 次

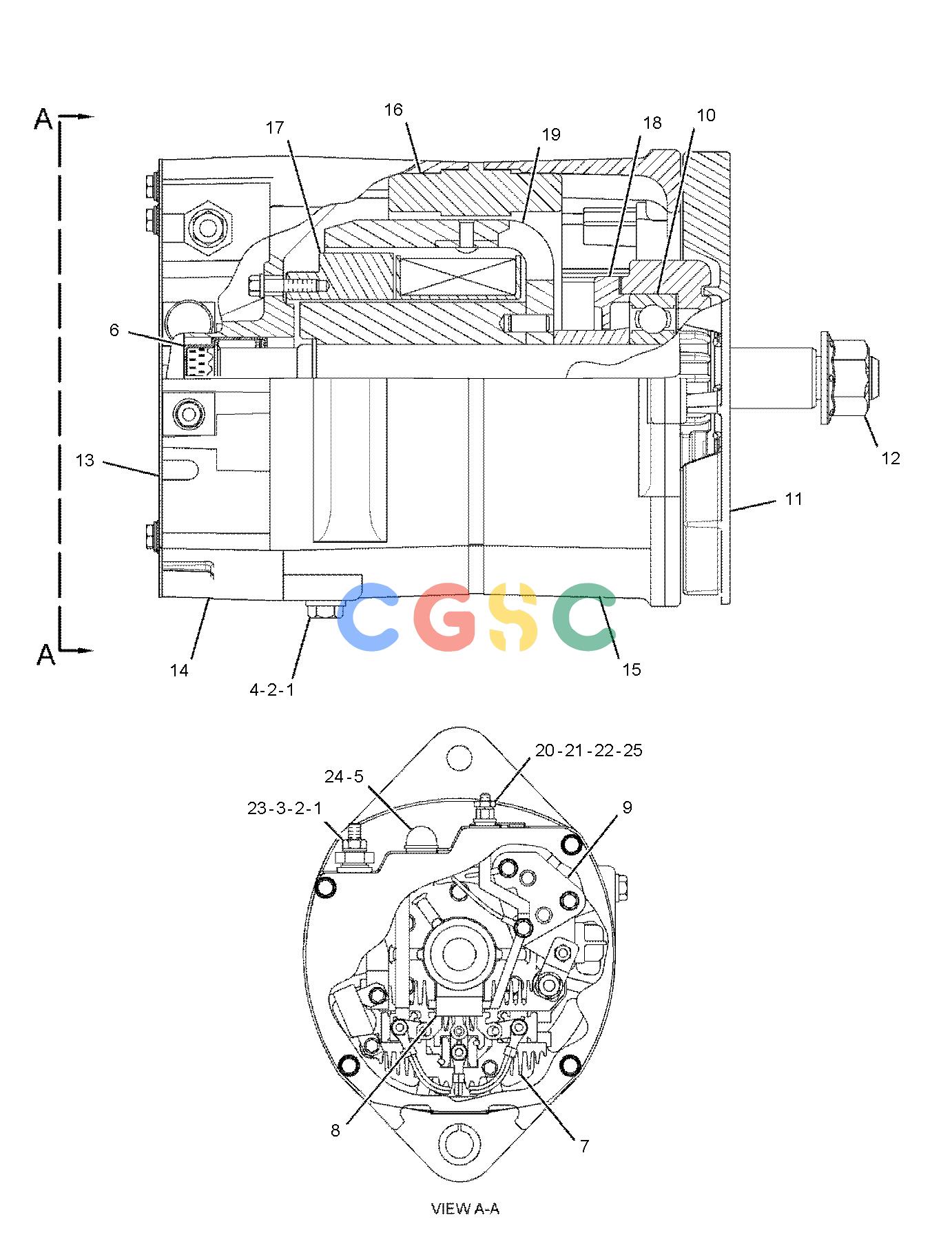

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 2. | 1H-3244 | [2] | LOCKWASHER | |
| 3. | 6V-8187 | [1] | NUT(1/4-28-THD) | |
| 4. | 5S-7349 | [1] | BOLT(1/4-20X0.5-IN) | |
| 5. | 9L-6770 | [1] | CAP-DUST | |
| 6. | 231-6133 | [1] | KIT-BEARING(ALTERNATOR) | |
| | | | (BEARING AS & RACE-BEARING INNER) |
| 7. | 308-1362 | [1] | RECTIFIER AS | |
| 8. | 202-2708 | [1] | DIODE AS(ALTERNATOR) | |
| 9. | 3T-6354 | [1] | REGULATOR AS-VOLTAGE(24-VOLT) | |
| 10. | 202-9897 | [1] | BEARING-SPECIAL BALL | |
| 11. | 100-6531 | [1] | FAN-ALTERNATOR(11-BLADE) | |
| 12. | 187-2034 | [1] | NUT-FLANGE(5/8-18-THD) | |
| 13. | 202-2783 | [1] | PLATE | |
| 14. | 202-2699 | [1] | HOUSING AS(ALTERNATOR) | |
| 15. | 202-2700 | [1] | FRAME | |
| 16. | 308-1365 | [1] | STATOR AS(ALTERNATOR) | |
| 17. | 308-1366 | [1] | COIL AS(ALTERNATOR) | |
| 18. | 9S-2390 | [1] | RETAINER | |
| 19. | 299-1761 | [1] | ROTOR AS | |
| 20. | 4B-2047 | [1] | NUT(10-24-THD) | |
| 21. | 8T-0328 | [1] | WASHER-HARD(5.5X10X1-MM THK) | |
| 22. | 8F-1434 | [1] | LOCKWASHER | |
| 23. | 202-2784 | [1] | KIT-ALTERNATOR TERMINAL(OUTPUT) | |
| | | | (INCLUDES NUT, LOCKWASHERS, WASHERS, INSULATORS, SCREW, CONNECTORS, & ADAPTER) |
| 24. | 202-2785 | [1] | KIT-ALTERNATOR TERMINAL(RELAY) | |
| | | | (INCLUDES STUD, BUSHINGS, WASHERS, CONNECTOR, & NUT) |
| 25. | 202-2786 | [1] | KIT-ALTERNATOR TERMINAL(INDICATOR LIGHT) | |
| | | | (INCLUDES NUTS, LOCKWASHER, BUSHINGS, WASHERS, CONNECTOR, & STUD) |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 202-2787 | [1] | KIT-HARDWARE(ALTERNATOR) | |
| | | | (INCLUDES NUT AS, SCREW AS, SCREW, PLUG, LOCKWASHER, NUT, CONNECTOR, BOLT, COLLAR & BOOT) |
